Setco - High-Speed Motorized CNC "Smart" Spindle
2Pages

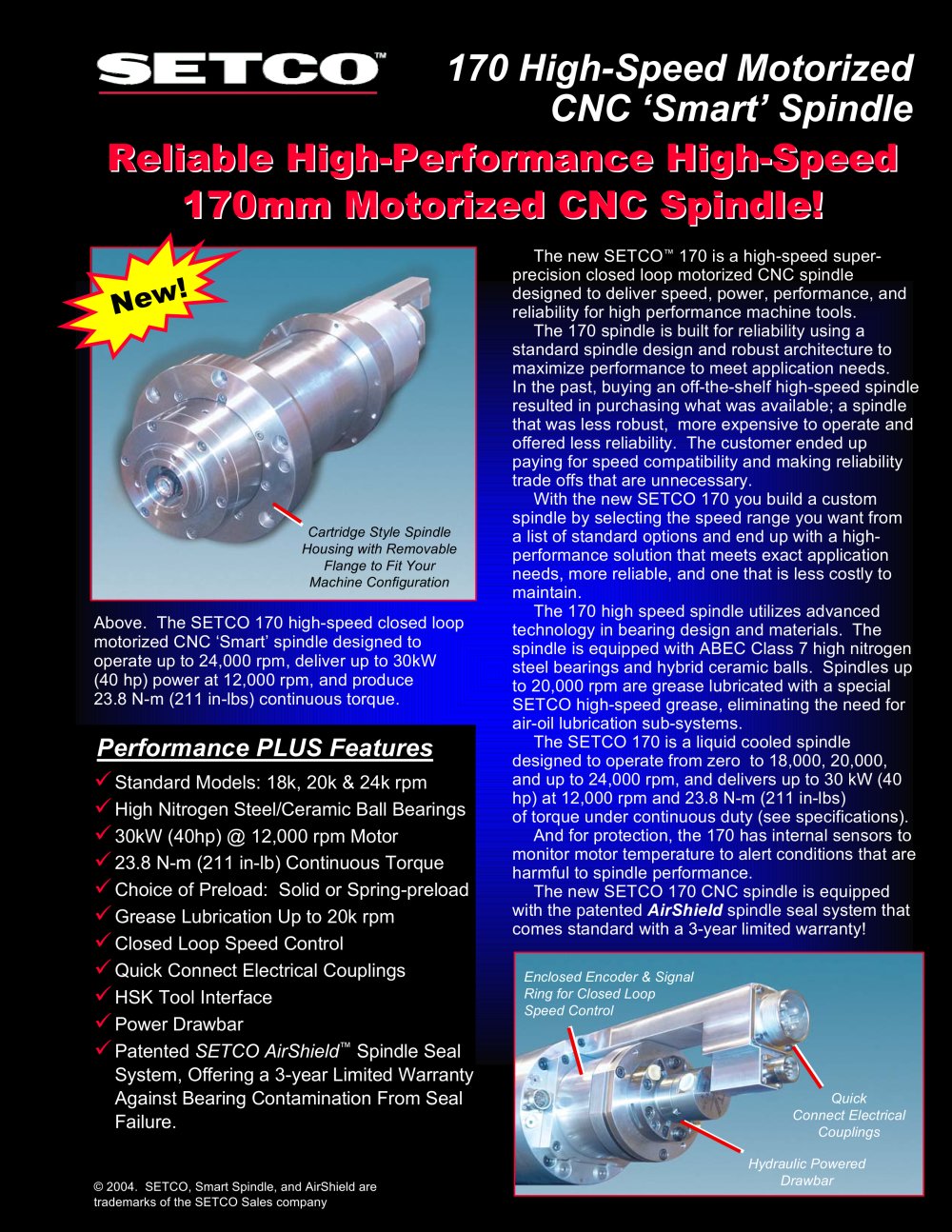

AirShield spindle seal systemthatcomesstandard with a3-year limited warranty! Above. The SETCO 170 high-speed closed loop motorized CNC Smartђ spindle designedto operate upto 24,000rpm, deliver up to 30kW (40 hp) power at 12,000rpm, and produce 23.8 N-m (211 in-lbs) continuoustorque. The new SETCO 170 is a high-speed super-precision closed loop motorized CNC spindle designed todeliver speed, power, performance,and reliability for high performance machine tools.The 170 spindle is built forreliabilityusing a standardspindle design and robust architectureto maximize performanceto meet application needs. Inthe past,buying an off-the-shelf high-speed spindle resulted in purchasing what was available; aspindle that was less robust,more expensive to operate and offered less reliability. The customer ended up paying for speed compatibility and making reliability trade offsthat are unnecessary.Withthe new SETCO 170 you build a customspindle by selecting thespeedrange you wantfrom a list of standard options and end upwith a high- performance solutionthat meets exact application needs, morereliable, and onethat is less costly to maintain.The 170 high speed spindle utilizes advancedtechnology in bearing design and materials. The spindle is equipped with ABEC Class 7 high nitrogen steel bearings and hybrid ceramic balls. Spindles up to 20,000rpm are grease lubricatedwith a special SETCO high-speed grease, eliminatingthe needfor air-oil lubrication sub-systems.The SETCO 170 is a liquid cooled spindledesignedto operate fromzero to18,000,20,000, and upto 24,000 rpm, and delivers up to 30 kW(40 hp) at 12,000 rpm and 23.8 N-m (211 in-lbs) of torqueunder continuousduty (seespecifications).And for protection,the 170 has internal sensors tomonitor motortemperatureto alert conditions that are harmful to spindleperformance.The new SETCO 170 CNC spindle is equipped with thepatented Cartridge Style SpindleHousing with RemovableFlange to Fit Your Machine Configuration Standard Models: 18k, 20k & 24k rpm High Nitrogen Steel/Ceramic Ball Bearings 30kW (40hp) @ 12,000 rpm Motor 23.8 N-m (211 in-lb) Continuous Torque Choice of Preload: Solid or Spring-preload Grease Lubrication Up to 20k rpm Closed Loop Speed Control Quick Connect Electrical Couplings > Enclosed Encoder & Signal Ring for Closed Loop Speed Control HSK Tool Interface Power Drawbar Patented SETCO AirShield > ٙ Spindle Seal System, Offering a 3-year Limited Warranty Against Bearing Contamination From Seal Failure. > QuickConnect ElectricalCouplingsHydraulic PoweredDrawbar 2004. SETCO, SmartSpindle, and AirShield aretrademarksof the SETCO Sales company size="-3">

Spindle Size, Type& Mounting Atitude 170mm (6.693") Diameter Body with Removable 210mm (8.3") Diameter Mounting FlangeThe Flange can be Customized for the Application.Distancefrom MountingFlange to Spindle Nose is 115mm (4.53"). The Spindle Can be Operated atAny Attitude; Nose Up, Nose Down orHorizontal Speed Options 0 to 18,000rpm,0 to 20,000rpm, and 0 to 24,000 rpmReversible Rotation,All Models. For different speeds, consult factory. Power 30 kW (40 Hp) Duty Ratingat 12,000 rpm Torque 23.8 N-m (211 in-lbs) Torque Continuous Duty Rating from0to 12,000 rpm Tool Nose HSK-A63 Tool Interface....
