Setco - High Performance CNC Machine Spindles
6Pages

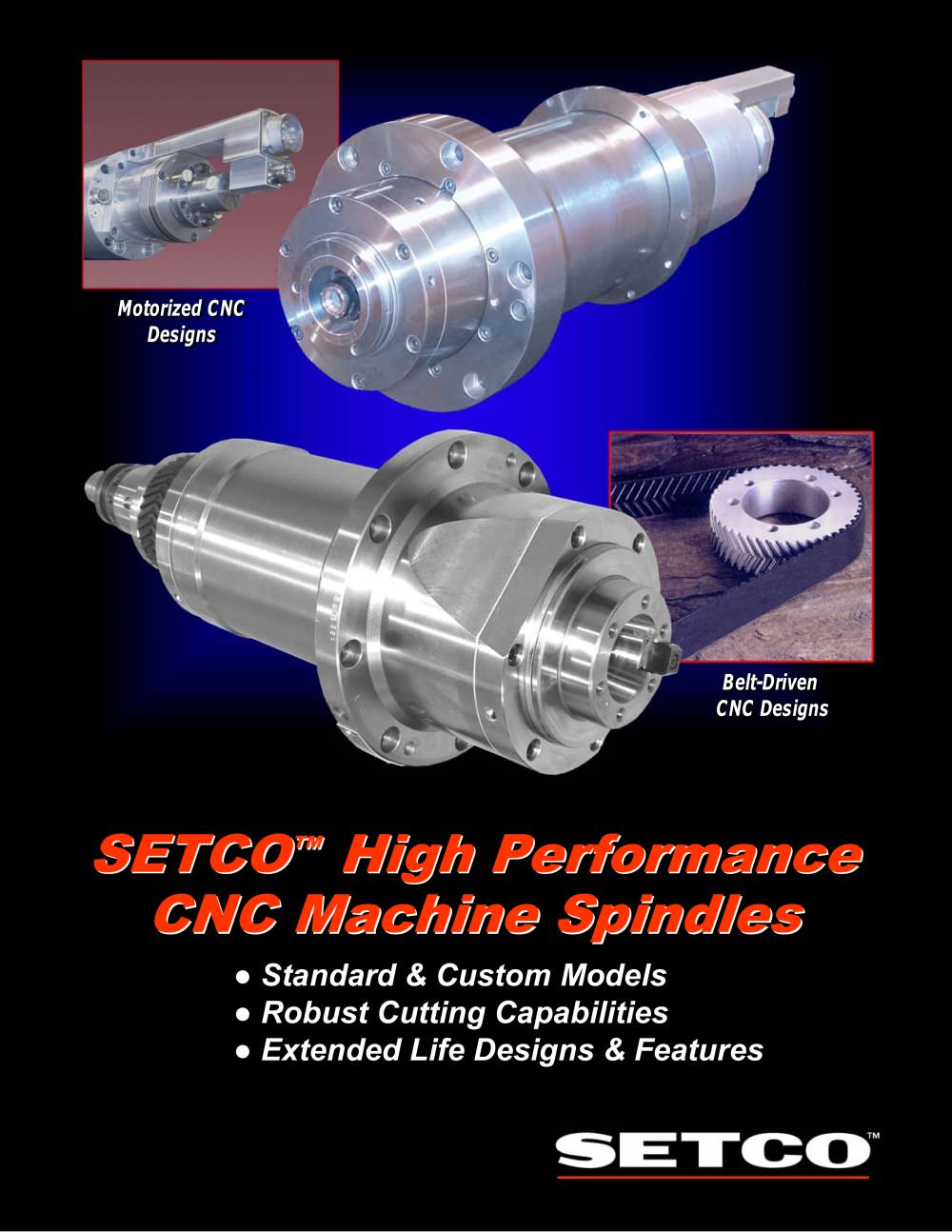

Motorized CNC DesignsMotorized CNC Designs Belt-DrivenCNC DesignsBelt-DrivenCNC Designs Standard & Custom ModelsRobust Cutting Capabilities Extended Life Designs & FeaturesStandard & Custom ModelsRobust Cutting Capabilities Extended Life Designs & Features >

Torque Rating57 N-m504 in-lbsOperating Speed- Max.15,000 RPMPower/Revolution- Max..006 kW/rev.008 hp/revSpeed Rating900,000 DN Front BearingsSeal TypeAirShieldRear BearingsLubricationPermanent Grease Duplex 50mm Hybrid Ceramic Duplex 60mm Hybrid Ceramic This belt driven design is field tested and a proven cost effective and reliable architecture. The maximum operating speed of this spindle is 15,000 rpm. Spindle torque is drive dependent. The spindle utilizes hybrid ceramic bearings, grease lubricated, and is equipped with the AirShieldٙ. As options, it can be equipped with variety of tool...

Torque Rating110 N-m974 in-lbsOperating Speed- Max.15,000 RPMPower/Revolution- Max..012 kW/rev.0155 hp/revSpeed Rating1,050,000 DNFront BearingsSeal TypeAirShieldRear BearingsLubricationPermanent Grease Duplex 70mm Hybrid CeramicDuplex 65mm Hybrid Ceramic > Torque Rating- Max.295 N-m2611in-lbsOperating Speed- Max.8,000 RPMPower/Revolution- Max..031 kW/rev.0413 hp/revSpeed Rating720,000 DNFront BearingsSeal TypeAirShieldRear BearingsLubricationPermanent Grease Duplex 80mm Steel Duplex 90mm Steel > Torque Rating110 N-m974 in-lbsOperating Speed- Max.15000 RPMPower/Revolution- Max..012...

Torque Rating- Max.24 N-m211 in-lbsOperating Speed- Max.20,000 RPMPower/Revolution- Max..013 kW/rev.017 hp/revSpeed Rating1,400,000 DN Front BearingsSeal TypeAirShield Rear BearingsLubricationPermanent Grease Duplex 60mm Hybrid Ceramic Duplex 70mm Hybrid Ceramic > Torque Rating- Max.110 N-m974 in-lbsOperating Speed- Max.12,000 RPMPower/Revolution- Max..013 kW/rev.017 hp/revSpeed Rating840,000 DN Front BearingsSeal TypeAirShieldRear BearingsLubricationPermanent Grease Quad 70mm Hybrid CeramicDuplex 55mm Hybrid Ceramic > Torque Rating- Max.287 N-m2533 in-lbsOperating Speed- Max.8,000 RPM...

is a world leader in design and manufacture of precision spindles. We engineer our spindles for maximize performance and reliability. We provide the most robust architecture in the industry. Our spindle designs are customized to meet customer and application requirements. Our spindles deliver maximum performance, reliability, and are less costly to maintain. SETCO is the leader in spindle technologies ٖwith aninstalled base of over 250,000 spindles and more than300 years of combined spindle design experienceSETCOis recognized around the world for quality products and professional service. >...

Dovetail SlidesLinear RecirculatingBearing SlidesHardened SteelWay Slides3-Axis Machining ModulesSpindle/SlideCombinations Sentry Belt-DrivenSpindlesGrinding Spindlesand AccessoriesBoring and Milling SpindlesProMetrixBelt-Driven SpindlesSmart Closed-LoopMotorized Spindles Total Solution TeamEngineeringField Service andVibration Analysis Predictive MaintenanceProgramsLeading Edge Spindle Repair Complete In-HouseManufacturing, AssemblyHands-On Spindle andSlide Repair Training > Publication S-0010 Printed in U.S.A 0405 size="-2">
