LTN slip rings

Product catalog summary

Overview: This document provides technical specifications for various models of capsule and modular slip rings manufactured by LTN Servotechnik GmbH. These slip rings are used for transmitting video and bus signals and are available in customizable versions.

Specifications:

Capsule Slip Rings: Models include SC080, SC100, SR085/SH085, SC020, SC020-R with resolver SS039. They offer protection classes ranging from IP40 to IP64 and operate within temperatures of -20°C to +80°C. Connection options include leads, cables, and clamp terminals.
Technical Data for Capsule Slip Rings:
- SC020: Outer Ø 20 mm, Inner Ø 8 mm, Length 27-54 mm, Speed 250 rpm, 6/12/18/24 rings, Current 2A/4A/6A, Power supply 36V/240V.
- SC020-R: Outer Ø 20 mm, Inner Ø 10 mm, Length 38-65 mm, Speed 250 rpm, 6/12/18/24 rings, Current 2A/4A/6A, Power supply 36V/240V.
- SS039: Outer Ø 39 mm, Inner Ø 6-10 mm, Length 32-40 mm, Speed 1000 rpm, 6/10/14/18 rings, Current 1A, Power supply 36V/100V.
- SC080: Outer Ø 80 mm, Inner Ø 20-30 mm, Length 47-150 mm, Speed 500 rpm, 6-24 rings, Current 3A/6A/16A, Power supply 48V/240V.
- SC100: Outer Ø 100 mm, Inner Ø 30-50 mm, Length 54-155 mm, Speed 500 rpm, 6-24 rings, Current 3A/6A/16A, Power supply 48V/240V.
- SR085/SH085: Outer Ø 85 mm, Inner Ø 25 mm, Length 76-180 mm, Speed 500 rpm, 2-16 rings, Current 25A, Power supply 50V/240V.
Modular Slip Rings: Models include SM034, SM050, SM070, and SD disk slip rings. They have a protection class of IP00 and operate within temperatures of -20°C to +150°C for SM034 and -20°C to +80°C for others.
Technical Data for Modular Slip Rings:
- SM034: Outer Ø 34 mm, Inner Ø 12.7 mm, Length 30 mm, Speed 250 rpm, 4 rings, Current 3A, Power supply 36V/240V.
- SM050: Outer Ø 50 mm, Inner Ø 20-30 mm, Length 27.5-127.5 mm, Speed 500 rpm, 6-24 rings, Current 3A/16A, Power supply 36V/240V.
- SM070: Outer Ø 70 mm, Inner Ø 30-50 mm, Length 27.5-127.5 mm, Speed 500 rpm, 6-24 rings, Current 3A/16A, Power supply 36V/240V.
- SD Disk Slip Ring: Outer Ø 50-240 mm, Inner Ø 30-170 mm, Length 7.5 mm, Speed 100 rpm, 2-10 rings, Current 2A/3A, Power supply 48V.

Additional Information: The document notes that specifications are subject to change without prior notice and were issued in June 2001.

Catalog excerpts

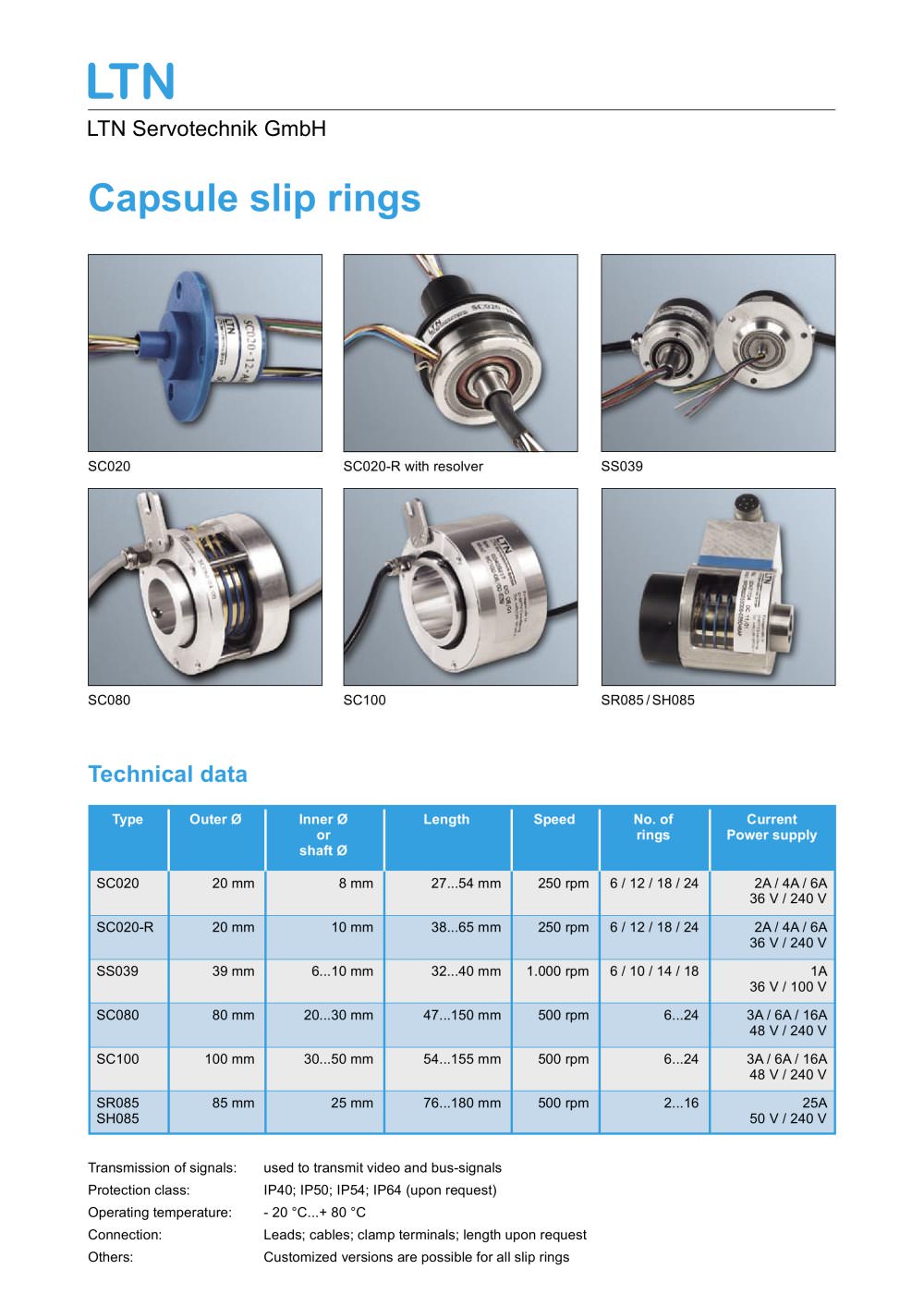

TypeOuter Inner ؘorshaft LengthSpeedNo. of ringsCurrentPower supply SC020 20 mm 8 mm 27...54 mm 250 rpm 6 / 12 / 18 / 24 2A / 4A / 6A 36 V / 240 V SC020-R 20 mm 10 mm 38...65 mm 250 rpm 6 / 12 / 18 / 24 2A / 4A / 6A 36 V / 240 V SS039 39 mm 6...10 mm 32...40 mm 1.000 rpm 6 / 10 / 14 / 18 1A 36 V / 100 V SC080 80 mm 20...30 mm 47...150 mm 500 rpm 6...24 3A / 6A / 16A 48 V / 240 V SC100 100 mm 30...50 mm 54...155 mm 500 rpm 6...24 3A / 6A / 16A 48 V / 240 V SR085 85 mm 25 mm 76...180 mm 500 rpm 2...16 25A SH085 50 V / 240 V Transmission of signals: used to transmit video and bus-signalsProtection class: IP40; IP50; IP54; IP64 (upon request) Operating temperature: - 20 ذC...+ 80 C Connection: Leads; cables; clamp terminals; length upon request Others: Customized versions are possible for all slip rings >
