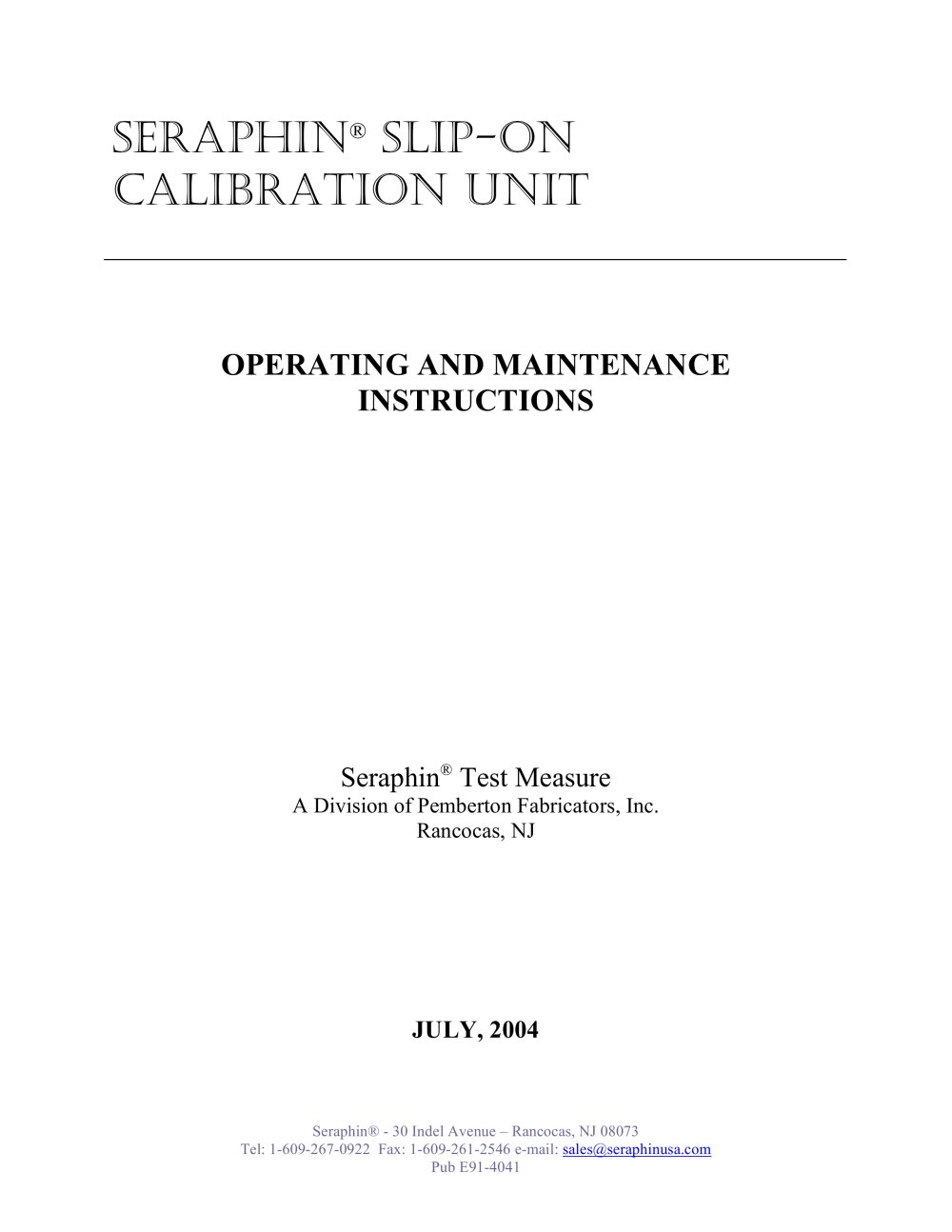

SERAPHIN > SLIP-ON CALIBRATION UNIT > OPERATING AND MAINTENANCE INSTRUCTIONS Seraphin ή Test Measure A Division of Pemberton Fabricators, Inc. Rancocas, NJ JULY, 2004 Seraphin - 30 Indel Avenue Ζ Rancocas, NJ 08073 Tel: 1-609-267-0922 Fax: 1-609-261-2546 e-mail: sales@seraphinusa.com Pub E91-4041 size="-5">

PEMBERTON FABRICATORS, INC. (SERAPHIN > DIVISION) SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS IN THIS MANUAL OR OMISSIONS FROM THIS MANUAL. SERAPHIN > ή MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THIS MANUAL AND, IN NO EVENT, SHALL SERAPHIN > BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PRODUCTION, LOSS OF PROFITS, ETC. PRODUCT NAMES USED HEREIN ARE FOR MANUFACTURER OR SUPPLIER IDENTIFICATION ONLY AND MAYBE TRADEMARKS/REGISTERED...

3 Description: The Seraphin > Slip-on Designed to slip easily into the bed of a pick-up truck, Seraphin's Slip-On Volumetric Calibration Unit can speed the job of calibrating multiple fuel dispensing units, while at the same time, enhancing safety. The unit consists of three 5 gallon NIST compliant bottom drain provers individually plumbed to (3) 80 gallon, Stainless Steel transfer tanks. The 80 gallon configuration allows for up to 48 calibration tests before returning to the fuel station's storage tank for dumping CAUTION : Secure the Slip-on unit to the bed of the pick-up truck, so that...

4 Prover Wetting Procedure :1.If the prover is clean and free of debris, fill the prover with liquid from the meter device being checked. Fill the prover until the amount on the meter reads the nominal capacity of the prover. NOTE : The prover must be filled once and drained in order to wet the internal sides of the prover body. Wetting the internals of the prover helps ensure consistency in the amount of liquid that clings to the sides, from one test to the next. 2.Open the prover drain valve to drain the prover into its holding tank. Once the cessation of main flow breaks, as viewed...

5 5.Open the prover drain valve. Once the cessation of the main flow breaks, wait 30 seconds and then close the drain valve. NOTE: Ensure the tank gravity drain valve is closed when draining the prover into the tank, to avoid the possibility of fuel spillage. Gravity draining of the 80 gallon holding tanks: 1.Ensure tank gravity drain valve is completely closed. 2.Connect the 2 petroleum drain hose (provided with the vehicle) to the tank gravity drain quick connect fitting, for the tank you wish to drain. 3.Route the hose to the below ground storage tank inlet piping. NOTE: Place traffic...

6 Reference: For officially recognized petroleum measurement procedures and methodsreference: NIST Handbook 44 Specifications, and Tolerances, and other Technical Requirements for Weighing and Measuring. API Manual of Petroleum Measurement Standards, Chapter 4, Section 4 (Tank Provers) and Section 8 (Operation of Proving Systems). Care and Maintenance 1.Check provers, valves and piping periodically for dents and leaks at the seams, joints, connections and gauge assembly. If a leak is detected, call SERAPHIN > ׮ for authorized repair parts. 2.Periodically check that the Slip-on unit is...

Bottom loading: Method of filling a volumetric vessel. Intake is made with a bottom load adapter. Capacity, nominal : T he nominal capacity of a field standard test measure or prover is the volume used to designate the measure or prover. The volume is determined by the nominal mark on a graduated upper neck gauge and between the nominal mark on the graduated upper neck gauge and the lower shut off valve or zero mark on a lower neck gauge on a prover. > NOTE: The nominal capacity of the prover has be set at the Seraphin facility using Standards that are traceable to the National Institute of...
