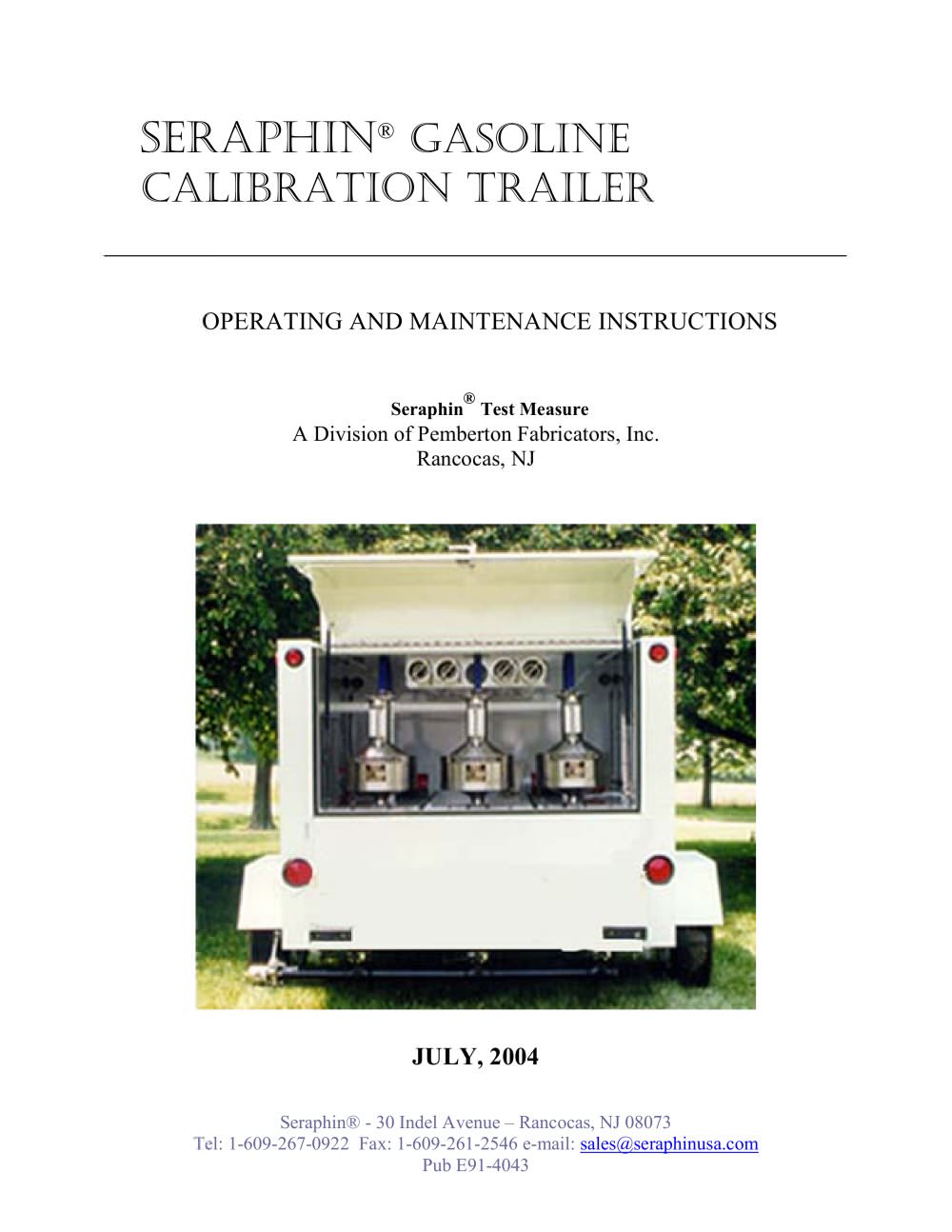

Seraphin > ή Test Measure > Seraphin - 30 Indel Avenue Ζ Rancocas, NJ 08073 Tel: 1-609-267-0922 Fax: 1-609-261-2546 e-mail:[email protected] Pub E91-4043 >

PEMBERTON FABRICATORS, INC. (SERAPHIN > DIVISION) SHALL NOT BE LIABLE FOR TECHNICALOR EDITORIAL ERRORS IN THIS MANUAL OR OMISSIONS FROM THIS MANUAL. SERAPHIN > ή MAKESNOWARRANTIES, EXPRESSED OR IMPLIED,INCLUDING THE IMPLIEDWARRANTIESOFMERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSEWITHRESPECT TOTHIS MANUALAND,IN NO EVENT, SHALL SERAPHIN > BE LIABLE FORANY SPECIALOR CONSEQUENTIALDAMAGESINCLUDING,BUTNOT LIMITED TO, LOSS OF PRODUCTION, LOSS OF PROFITS, ETC.PRODUCT NAMES USED HEREIN AREFORMANUFACTURER ORSUPPLIERIDENTIFICATIONONLYAND MAYBE TRADEMARKS/REGISTERED TRADEMARKS OF THESE COMPANIES.THE...

3 Description: Set-up Procedure for calibration with 5 gallon/20 liter Special J prover: The Seraphin > Gasoline Calibration (Box) Trailer is a mobile proving system designed tocalibrate gasoline dispensers. It is comprised of (3) precision volumetric stainless steel bottom drain provers connected each to their own individual 115 gallon holding tank in the rear of the totally enclosed trailer. The prover drain valve is plumbedto piping that can be routed via butterfly valves to a gravity drain. Five (6) six-foot hoses are supplied to help empty the tanks back into the storage facility tanks....

42.Open the prover drain valve to drain the prover into its holding tank. Once the cessation of main flow breaks, as viewed through the sight flow indicator, wait 30 seconds and then close the drain valve. 3.The prover is now wet down and is ready for an official test. Conducting the Calibration with the 5 gallon/20 liter Special J prover: 1.Fill the special JӔ prover until the amounton the meter reads the nominal capacity of the prover.2.Level the prover on its leveling ball joint untilthe bubble in the circular level is in thecenter circle. 3.Identify the volume measurement on the scale by...

53.Route the hose to the below ground storage tank inlet piping. NOTE: Place traffic cones around the storage tank inlet and the drain hose to alert motorists in the station of the hazard and that work is in progress. 4.Open the gravity drain isolation valve. 5.Ensure the gravity drain hose is attended at all times when drainingto ensure it stays inthe storage tank inlet until completely drained. 6.Once the tank is completely drained, close the holding tank gravity drain valve. 7.Disconnect the petroleum drain hose fromthe holding tank gravity drain connection. > CAUTION: Ensureall fuel residual...

1. Check pump, provers, valves and piping periodically for dents and leaks at the seams,joints, connections and gauge assembly. If a leak is detected, call SERAPHIN > for authorized repair parts. > Tires 1.Make sure the trailer tires and wheels are of the same size, type, tread design and load carrying capacity. Differences may adversely affect trailer handling and could increase a risk of loss of vehicle control. 2.Inflate tire pressure to manufacturers specifications and check weekly, when cool, before you drive. Failure to maintain the proper recommended pressure can adversely affect the way...

7 Lights 1.Make sure that all running lights, brake signals and hazard lights are operational witheach use. > 2. To replace trailer lamps, carefully pull the lamp from the assembly, remove the defectivebulb from the socket and replace with a similar bulb. Brakes Axle 1.Inspect brake to be sure they are operational with each use. 2.Adjust brakes to proper operating clearance every 3 months or 3, 000 miles 3.Inspect brake linings for wear and contamination annually or every 12,000 miles. 4.Inspect brake magnets for wear and current draw every 6 months or 6,000 miles. 5.Check brake cylinders for...

82.Raise the tongue jack high enough so that it can not hit while being transported 3.Connect the safety chains to the hook retainers of the vehicle hitch. To connect the trailers safety chains, cross the chains under the trailer tongue and allow slack for turning corners. Do not attach safety chains to the bumper . Trailer Connector 1.Seraphin supplies a thermo-plastic 7-way RV Connector that has brass contacts to prevent corrosion. It is interchangeable with other 7-way RV Connectors. 12 volts, 30 amps Typical Wiring Diagram for 7-Pole Connector : Locate wires by function only. Colorcoding...

Bottom loading: Method of filling a volumetric vessel. Intake is made with a bottom load adapter. Capacity, nominal : T he nominal capacity of a field standard test measure or prover is the volume used to designate the measure or prover. The volume is determined by the nominal mark on a graduated upperneck gauge and between the nominal mark on the graduated upper neck gauge and the lower shut off valve or zero mark on a lower neck gauge on a prover. > Cubical coefficient of thermal expansion: > -1 Three dimensional expansion or contraction of a material dueto temperature change, expressed > F...

The use of a test measure or prover standard may involve hazardous materials, operations, and equipment. Seraphin does not purport to address all safety problems associated with the use of each product. It is the responsibility of the user of the standard to establish appropriate safety and health practices and determine the applicability of local and federal regulatory limitations prior to use. Specific safety information is documented in the various trade references (e.g. American Petroleum Institute and Petroleum Equipment Institute).Commercial liquid measuring devices, tested with provers,...

DIVISION OF PEMBERTON FABRICATORS, INC.PO BOX 227 30 INDEL AVENUE RANCOCAS, NJ 08073-0227 > PEMBERTON FABRICATORS, INC. FULLYWARRANTS THAT THE PRODUCT SUPPLIEDSHALL CONFORM TO THE DESCRIPTION IN THE QUOTATION AND AGREES TO REPAIR OR REPLACE F.O.B. SHIPPING POINTS, ANY PARTS EXCEPTING EXPENDABLE ITEMSSUCH AS FILTERS AND LIGHTS THAT FAIL DUE TO DEFECTS IN MATERIAL OR WORKMANSHIP WITHIN ONE YEAR OF USE OR 18 MONTHS AFTER SHIPMENT, WHICHEVER OCCURS FIRST. Other than those expressively stated herein, there are no other warranties of any kind, expressed or implied,and specifically excluded but not...
