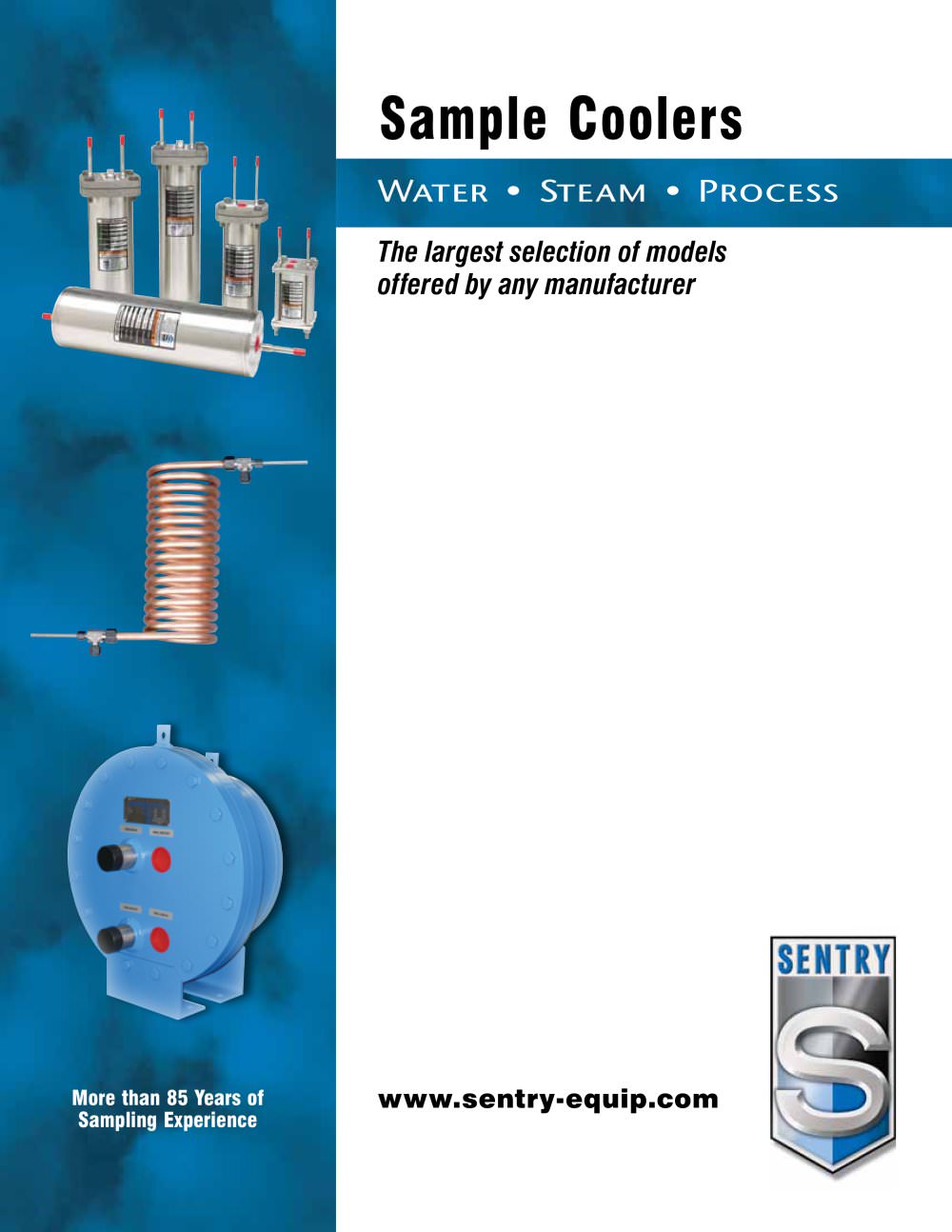

Sample Coolers Water • Steam • Process The largest selection of models offered by any manufacturer More than 85 Years of Sampling Experience
Open the catalog to page 1Cool, Heat or Condense Any Sample Sentry has more types of sample coolers than any other manufacturer. Flows from 0.25 Gal/Hr (1 L/Hr) to 100 Gal/Min (378 LPM) and pressure/temperature ratings up to 5,000 psi (345 bar) and up to 1100° F (593° C) are available using single tube Helical Coil, multi-tube Spiral Tube or Tube-in-Tube heat exchanger designs. With over 80 years of heat transfer experience, Sentry has the manufacturing know-how and engineering expertise to solve even the most complex sample conditioning problem. Special flow configurations, end connections, and exotic materials are...
Open the catalog to page 2HELICAL COIL SAMPLE COOLERS Tube Shell Shipping Part Model No. Shell Design Tube Design Material Material Area Weight Number Reference Bulletin 4.2 for complete TSR technical specifications. Reference Bulletin 4.3 for complete TLR technical specifications. Tube Shell Shipping Part Model No. Shell Design_Tube Design_Material_Material_Area_Weight Number Reference Bulletin 4.4 for complete FSR technical specifications. Reference Bulletin 4.5 for complete FLR technical specifications. Reference Bulletin 4.6 for complete FXR technical specifications. Models listed are standard offerings. Consult...
Open the catalog to page 3HELICAL COIL CONTINUED boiler applications SAMPLE INLET SAMPLE OUTLET COOLING WATER INLET COOLING WATER OUTLET Tube Shell Part Model No. Shell Design Tube Design Material Material Area Weight Number Reference Bulletin 4.1 for complete TRB technical specifications. * Tubing is 300 series stainless steel with chemical and physical properties equal to or better than T304. Sample Outlet - Cooling Water Outlet Shell Design Tube Design Reference Bulletin 4.7 for complete WSW technical specifications.
Open the catalog to page 4Spiral Tube A spiral tube heat exchanger is a spirally coiled tube and manifold assembly fitted into a compact shell that optimizes heat transfer efficiency and space. The spiral shape of the coil and shell flow paths creates centrifugal force that enhances heat transfer on both sides in a true counterflow arrangement. By varying the number, diameter and length of the coiled tube, efficiency and footprint can be optimized versus traditional shell and tube designs. • Flow rates to 100 GPM (378 LPM) • ample conditions up to 5000 psi (345 bar) and up S to 1000° F (540° C) • ptimal design for...
Open the catalog to page 5Tube-In-Tube Dual Tube Coil (DTC) products are helically wound, full counter flow heat exchangers— well-suited for a variety of applications where low flow rates of high pressure and/or temperature fluids need heating or cooling. A variety of inner and outer tube sizes are available to meet most application requirements. • Flow rates to 3 GPM (11.4 LPM) • ample conditions up to 6000 psi (414 bar) S and up to 1100° F (593° C) • Single continuous tube • Fully drainable • ighly resistant to thermal and hydraulic H shock • Sanitary model available • opper, 316 SS, Inconel® 625, Hastelloy®, C...
Open the catalog to page 6TUBE-IN-TUBE SPECIFICATIONS Inner Tube Outer Tube Inner Tube Outer Tube H.T. Part Model No. Design Design Material Material Area Weight Number Inner Tube Outer Tube Inner Tube Outer Tube H.T. Part Model No. Design Design Material Material Area Weight Number Inner Tube Outer Tube Inner Tube Outer Tube H.T. Part Model No. Design Design Material Material Area Weight Number For complete technical specifications reference data sheet 17.10.10 for DTC-4; 17.10.20 for DTC-6; 17.10.30 for DTC-8. Models listed are standard offerings. Consult referenced bulletins or factory for other materials and...
Open the catalog to page 7a sampling of Sentry Equipment's Products Water/Steam Sampling •• Sample Coolers •• VREL® Pressure Reducers •• Back Pressure Regulator/Relief Valves •• Thermal Shut Off Valves •• Single Line Sample Panels •• Cation Resin Columns •• Degassed Conductivity Panels •• Corrosion Products Samplers •• Temperature Control Units •• Sample Sequencers •• Custom Sampling Systems Process Sampling Sampling Equipment for: •• High vapor pressure gases/liquids •• High pressure gases •• Gas concentration measurement •• Liquids and slurries •• Bulk Solids •• For use in industries such as chemical, petroleum...
