Catalog excerpts

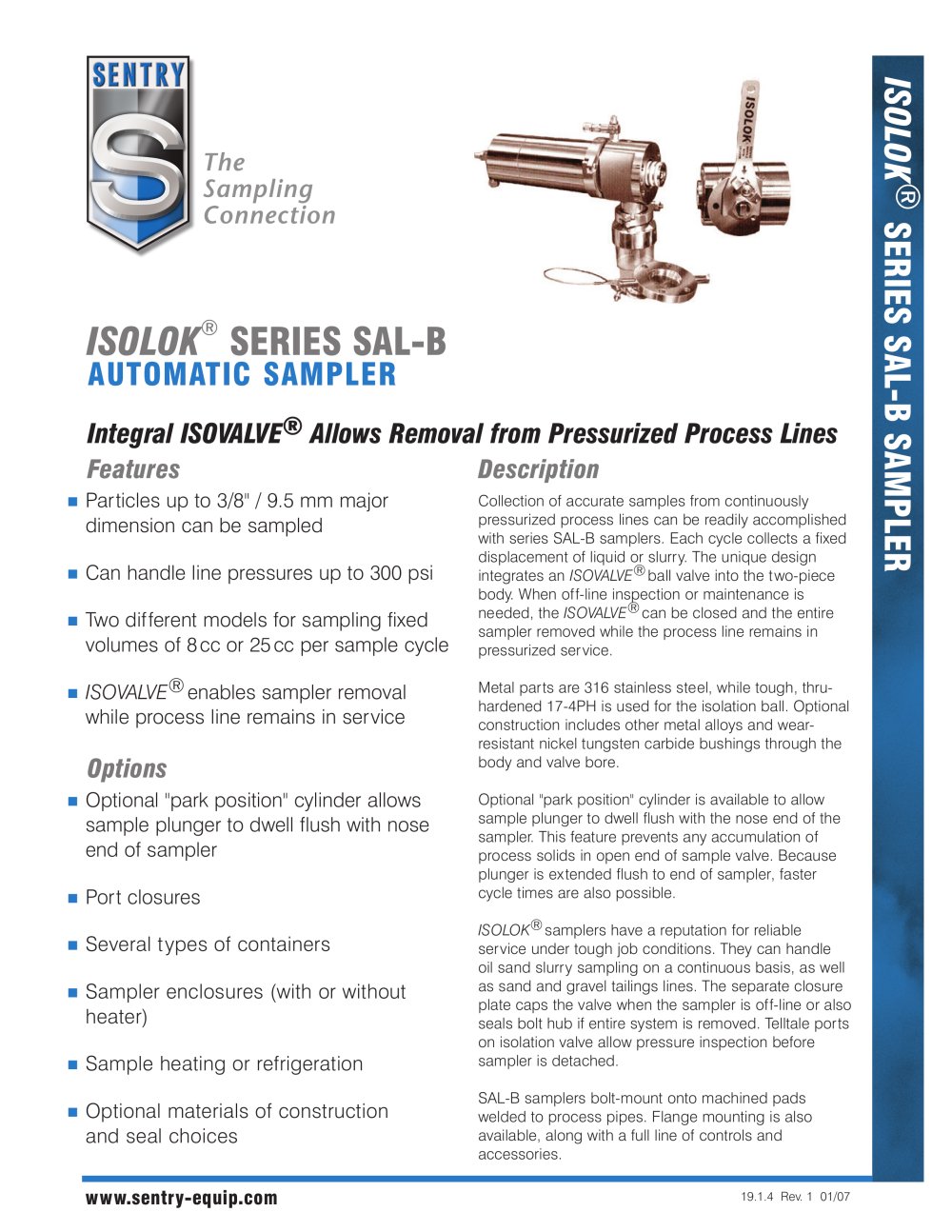

ISOLOK SERIES SAL-B SAMPLER ISOVALVEή ISOVALVE can be closed and the entire sampler removed while the process line remains in pressurized service.Metal parts are 316 stainless steel, while tough, thru-hardened 17-4PH is used for the isolation ball. Optional construction includes other metal alloys and wear- resistant nickel tungsten carbide bushings through the body and valve bore. Optional "park position" cylinder is available to allow sample plunger to dwell flush with the nose end of the sampler. This feature prevents any accumulation of process solids in open end of sample valve. Because plunger is extended flush to end of sampler, faster cycle times are also possible. ball valve into the two-piece body. When off-line inspection or maintenance is needed, the ISOLOKή samplers have a reputation for reliable service under tough job conditions. They can handle oil sand slurry sampling on a continuous basis, as well as sand and gravel tailings lines. The separate closure plate caps the valve when the sampler is off-line or also seals bolt hub if entire system is removed. Telltale ports on isolation valve allow pressure inspection before sampler is detached.SAL-B samplers bolt-mount onto machined pads welded to process pipes. Flange mounting is also available, along with a full line of controls and accessories. Particles up to 3/8" / 9.5 mm major dimension can be sampled > Collection of accurate samples from continuously pressurized process lines can be readily accomplished with series SAL-B samplers. Each cycle collects a fixed displacement of liquid or slurry. The unique design integrates an Can handle line pressures up to 300 psi Two different models for sampling fixed volumes of 8 cc or 25 cc per sample cycle ISOVALVE enables sampler removal while process line remains in service > Optional "park position" cylinder allows sample plunger to dwell flush with nose end of sampler Port closures Several types of containers Sampler enclosures (with or without heater) Sample heating or refrigeration Optional materials of construction and seal choices > www.sentry-equip.com 19.1.4 Rev. 1 01/07 size="-3">
