II36-1 Incremental Inductive Encoder
II36-1 Incremental Inductive Encoder
- Mechanical Specifications: The encoder has a mechanical angle of 360° (endless), a protection degree of IP67, a starting torque of 1mN·m, and a maximum speed of 6000rpm. It is constructed with an anodized aluminum alloy housing and a stainless steel shaft with a diameter of 10mm (customizable).
- Electrical Specifications: The standard model operates at 5V DC±10%, with a current consumption of less than 20mA. It features a push-pull output form and offers output pulse options of 500, 512, 1000, 1024, 2000, 2048, 4000, and 4096 ppr.
- Environmental Specifications: The operating temperature range is -40°C to +125°C, with a storage temperature range of -55°C to +125°C. It can withstand vibrations of 100m/s² and shocks of 500m/s².
- Integrated design with precision ball bearings.
- Flange mount installation method.
- Available with both clockwise and counterclockwise output directions.

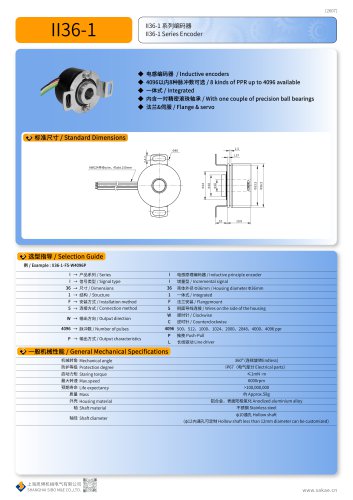

Catalog excerpts
♦ / With one couple of precision ball bearings V / Selection Guide $1 / Example : II36-1-F5-W4096P W -» 5artH^j[Rl / Output direction 4096 -> / Number of pulses I / Inductive principle encoder ^ Hi / Incremental signal 36 |036mm / Housing diameter Q36mm 5 / Wires on the side of the housing W JUfttf- / Clockwise c mm / Counterclockwise 4096 500n 512n 1000x 1024N 2000x 2048x 4000x 4096 ppr ””P Push-Pull V — mStn.M'tttls / General Mechanical Specifications Mechanical angle IProtection degree Staring torque Max.speed Life expectancy Mass Housing material ^ Shaft material fan1#, OTnPBt&ttlj Anodized aluminium alloy Stainless steel Shaft diameter (012rtM?LR]/Elr|!y Hollow shaft less than 12mm diameter can be customized)
Open the catalog to page 1
V / Environmental Specifications IftSlS Operating temperature range fiSSSIfi Storage temperature range ScftSSSf® (Contact discharge) ±8KV, V —/ General Electrical Specifications Standard model Applied voltage SijUjJtSSC Output form (Push-pull output) Number of output pulse Start time ■fa^SEW Output propagation delay Current consumption Output level Insulation resistance Dielectric strength Sift Color V 0^J?m / Signal Timing Diagram vcc h=14P(teM/ Standard) or 3/4P / Optional. Please inform us before placing your order.) V / Special Specifications Available Special shaft &»8lfc* (St¥E* 7T«* SgPfHL*...
