FCPS22AC
1 /2Pages
FCPS22AC
1 /2Pages
Catalog excerpts
FCPS22AC 系列精密单圈电位器 FCPS22AC Series Precision Single-Turn Potentiometer 导电塑料 / Conductive Plastic 伺服安装 / Servomount 内含无油金属轴承 / Oilless Metal Bearings Incorporated 经济型 / Low-cost Item 符合RoHS / RoHS Compliant 标准尺寸 / Standard Dimensions 选型指导 / Selection Guide 例 / Example: FCPS22AC-5K S → 特殊规格 / Special Specification FCPS → 产品系列 / Series 00000 → 4或5位数 / 4 or 5 digits branch number 特殊机械规格 / Special mechanical specifications 导电塑料电阻 / Conductive plastic resistive element type 壳体外径Φ22mm / Housing diameter Φ22mm 500Ω~100kΩ 用于特殊需求 / To be used for specific requirements 一般机械性能 / General Mechanical Specifications 机械行程 Mechanical travel 防护等级 Protection grade (IP) 启动力矩 Starting torque 预期旋转寿命 Rotational life expectancy 质量 Mass 外壳 Housing material 上海思博机械电气有限公司 SHANGHAI SIBO M & E CO.,LTD.
Open the catalog to page 1
FCPS22AC 系列精密单圈电位器 FCPS22AC Series Precision Single-Turn Potentiometer 环境特性 / Environmental Specifications 工作温度 Operating temperature range 温度循环 Temperature cycle -55℃～+105℃ 在-55℃～+105℃循环 5次，总阻值变化低于±10%，无机械损坏。/ 5 cycles under -55℃～ +105℃, total resistance value variation: <± 10％, No mechanical damage. 在-55℃ 24小时，总阻值变化低于±5%，无机械损坏。/ 24 hours at -55℃, Total resistance value variation: <±5％, No mechanical damage. 高温 Exposure at high temperature 在105℃ 1000小时，总阻值变化低于±10%，无机械损坏。/ 1,000 hours at 105℃, Total resistance value variation: <±10％, No mechanical damage. 10Hz～2000Hz，147m/s²，12小时，总阻值变化低于±2%，无机械和电气损坏。/...
Open the catalog to page 2All SENTOP by Shanghai Sibo M&E Co., Ltd. catalogs and technical brochures
S50JCK-4803P2 Pages

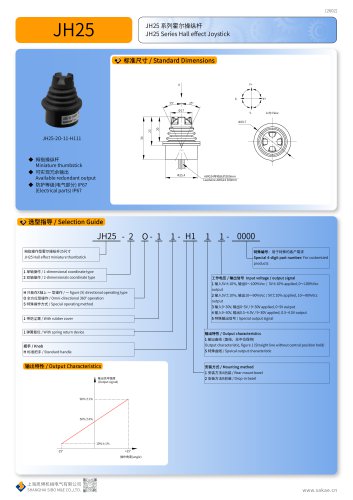

HALL EFFECT JOYSTICK JH252 Pages
JOYSTICK JH22B2 Pages
ROTARY POTENTIOMETER WDD352 Pages
JOYSTICK JP503 Pages
JOYSTICK JH302 Pages

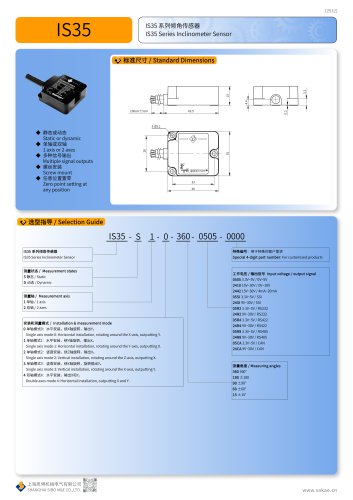

IS35 Inclinometer Senser3 Pages

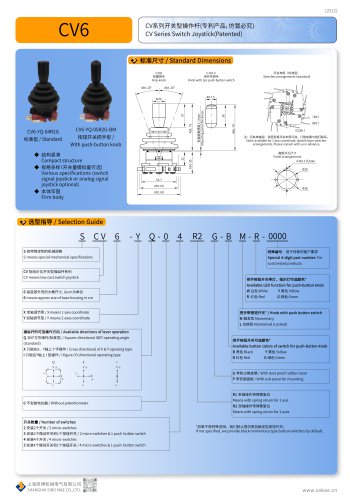

SWITHC JOYSTICK CV63 Pages

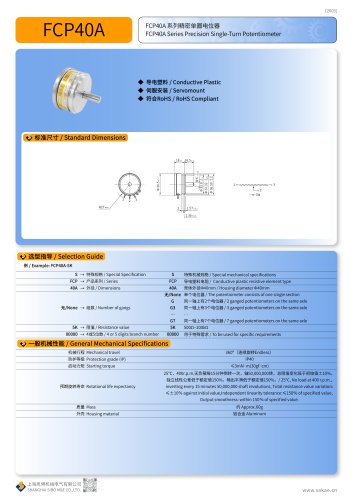

FCP40A2 Pages
JOYSTICK JH503 Pages

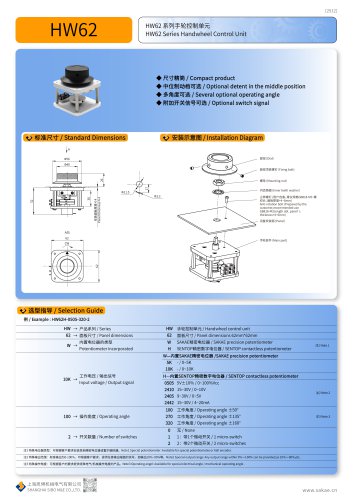

JOYSTICK HW622 Pages
MAGNETIC ENCODER EI18A2 Pages

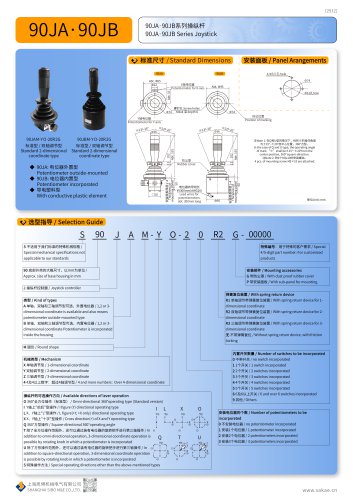

JOYSTICK 90JA 90JB3 Pages
JOYSTICK JH40-USB3 Pages
JOYSTICK JH403 Pages
JOYSTICK CB2 Pages

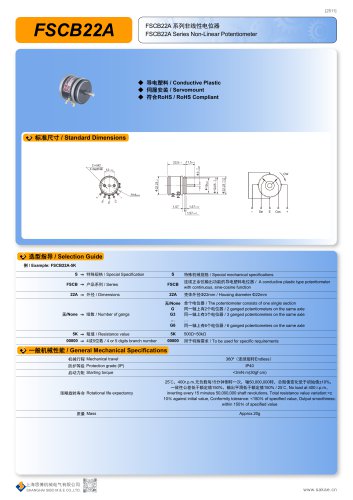

FSCB22A2 Pages
JOYSTICK C90JAM·C90JBM3 Pages
JOYSTICK JH802 Pages
EAS40A-S12 Pages

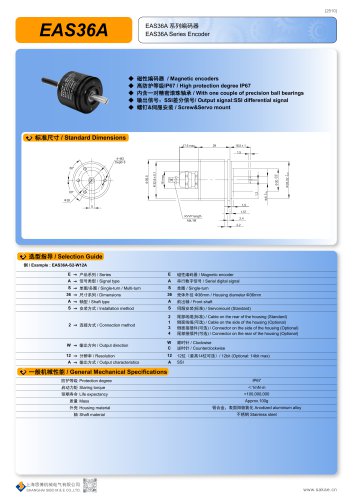

MAGNETIC ENCODER EAS36A2 Pages
EAS40A-S22 Pages
EAS40B-F12 Pages
MAGNETIC ENCODER EI40B2 Pages
MAGNETIC ENCODER EI40A2 Pages
MAGNETIC ENCODER EID58A2 Pages
EI36B-F12 Pages
MAGNETIC ENCODER EI36A2 Pages
MAGNETIC ENCODER EI35A-C92 Pages

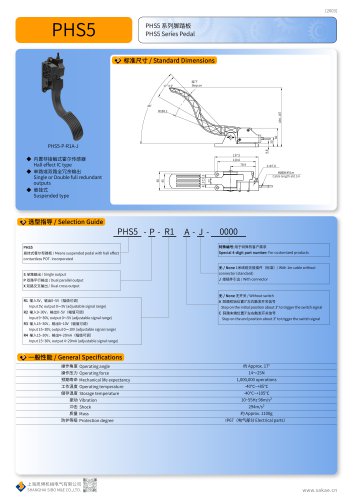

PEDAL PHS52 Pages

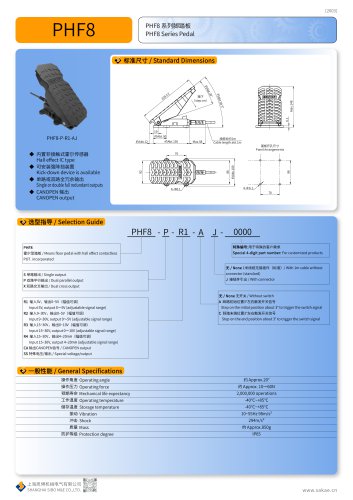

PEDAL PHF82 Pages
SWITHC JOYSTICK CV42 Pages
SWITHC JOYSTICK CV4A2 Pages
Joystick S30JLK-4801P3 Pages
MAGNETIC ENCODER EBSD58A3 Pages
MAGNETIC ENCODER EASD58A2 Pages

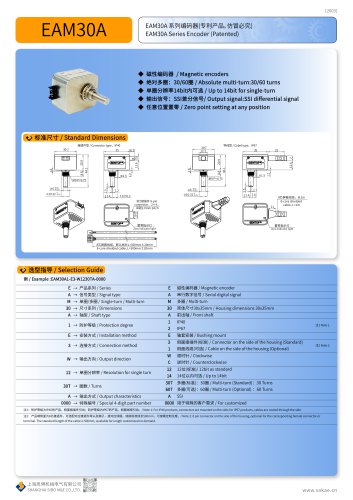

MAGNETIC ENCODER EAM30A3 Pages
MAGNETIC ENCODER EAMD58A2 Pages
MAGNETIC ENCODER EBS40B-F13 Pages
MAGNETIC ENCODER EBS40A-S23 Pages
MAGNETIC ENCODER EBS40A-S13 Pages
MAGNETIC ENCODER EBM30A4 Pages

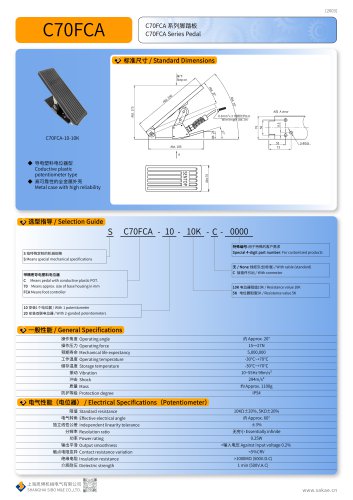

PEDAL C70FCA2 Pages

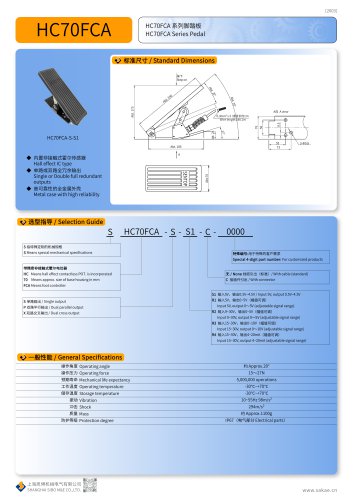

PEDAL HC70FCA2 Pages
JP30 Series Joystick2 Pages
OF40LP2 Pages
DB2 Pages
MAGNETIC ENCODER EBS36A2 Pages
CFL2 Pages
JOYSTICK C-S50JCK-115912 Pages
LINEAR POTENTIOMETER CL322 Pages
LINEAR POTENTIOMETER CL25A2 Pages
JP45 Series Joystick2 Pages
JOYSTICK H30JL2 Pages
JOYSTICK 50JC2 Pages
MAGNETIC ENCODER EI22A-E92 Pages
JH22C Joysticks2 Pages
Hall effect joystick JH352 Pages
DRAW WIRE SENSOR XL50SI4 Pages
DRAW WIRE SENSOR XL50SW4 Pages
DRAW WIRE SENSOR XL50SH4 Pages
DRAW WIRE SENSOR XL50SB4 Pages
DRAW WIRE SENSOR XL50SA4 Pages
ROTARY POTENTIOMETER WDX252 Pages
SIGNAL CONVERTER SBS90M3 Pages
HSM102 Pages
Joystick JH50A3 Pages

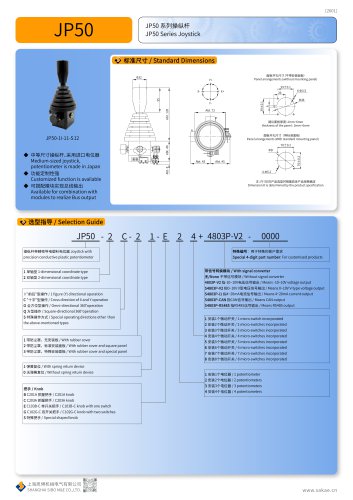

Joystick JP50A3 Pages
