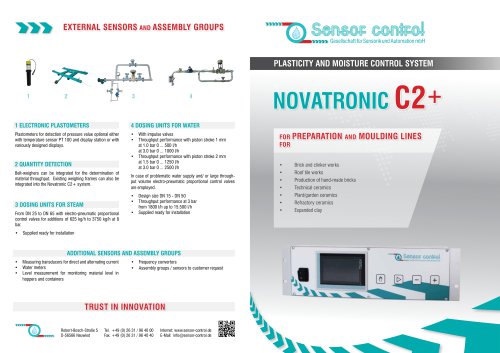

EXTERNAL SENSORS and ASSEMBLY GROUPS PLASTICITY AND MOISTURE CONTROL SYSTEM 4 DOSING UNITS FOR WATER Plastometers for detection of pressure value optional either with temperature sensor PT 100 and display station or with variously designed displays. 2 QUANTITY DETECTION Belt-weighers can be integrated for the determination of material throughput. Existing weighing frames can also be integrated into the Novatronic C2+ system. From DN 25 to DN 65 with electro-pneumatic proportional control valves for additions of 625 kg/h to 3750 kg/h at 8 bar. • In case of problematic water supply and/ or large throughput volume electro-pneumatic proportional control valves are employed. • • 3 DOSING UNITS FOR STEAM With impulse valves Throughput performance with piston stroke 1 mm at 1.0 bar 0 ... 500 l/h at 3.0 bar 0 ... 1000 l/h Throughput performance with piston stroke 2 mm at 1.5 bar 0 ... 1250 l/h at 3.0 bar 0 ... 2500 l/h Design size DN 15 - DN 50 Throughput performance at 3 bar from 1800 l/h up to 15.500 l/h Supplied ready for installation Supplied ready for installation ADDITIONAL WeitereSENSORS Sensoren AND und ASSEMBLY Baugruppen GROUPS • • • Measuring transducers for direct and alternating current Water meters Level measurement for monitoring material level in hoppers and containers Frequency converters Assembly groups / sensors to customer request tRUST IN INNOVATION Robert-Bosch-Straße 5 D-56566 Neuwied Internet: www.sensor-control.de E-Mail: [email protected] Brick and clinker works Roof tile works Production of hand-made bricks Technical ceramics Plant/garden ceramics Refractory ce

CONNECTION ASSIGNMENT of the novatronic C2+ CONTROL of processing machine The NOVATRONIC C2+ can be used to evaluate following measured values: • Power consumption • Flow pressure in pressing head • Material moisture • Material temperature • Belt scale NOVATRONIC C2+ IS THE NEW, ENHANCED VERSION OF THE MM M TRIED-AND-TESTED CONTROL SYSTEM NOVATRONIC C2 NOVATRONIC C2+ is based on PLC control and is designed to regulate individual processing machines. During development, the dimensions and parameter structure of the NOVATRONIC C2 were used as a guide, meaning that it is simple to make a 1-to-1...
