SENCO
Framing & Sheathing Nailers

Framing & Sheathing Nailers

Product catalog summary

Overview of Framing and Sheathing Nailers
This document provides detailed information on various models of framing and sheathing nailers, highlighting their benefits, applications, and specifications.

Key Benefits

ThinkTrac technology powered by 4 AAA batteries, offering water and shock resistance.
Depth-of-drive control and EZ-Clear feature for consistent nail depth and easy jam clearing.
Aggressive sawtooth safety for effective toenailing.
Two-year warranty and rugged internal design for extended life.
Lightweight design for improved maneuverability and comfort.

Applications

Framing, truss building, subflooring, decking, sheathing, siding, fencing, pallets, crate assembly, and wood-to-green concrete.

Product Specifications

FramePro® 600E: Height: 13 1/4", Length: 15", Weight: 8.25 lbs.
FramePro® 700E-XL/750E-XL: 700E-XL: Height: 13 1/4", Length: 15", Weight: 8.25 lbs; 750E-XL: Height: 14 1/4", Length: 15", Weight: 8.5 lbs.
FramePro® 700XL/750XL: 700XL: Height: 13 1/4", Length: 15", Weight: 8.0 lbs; 750XL: Height: 14 1/4", Length: 15", Weight: 8.4 lbs.
SN70: Height: 14 11/16", Length: 15 7/8", Weight: 9.7 lbs.
FramePro® 700XL FRH/750XL FRH: 700XL FRH: Height: 13 1/4", Length: 20", Weight: 8.4 lbs; 750XL FRH: Height: 14 1/4", Length: 20", Weight: 8.75 lbs.
FramePro® 600 FRH/650 FRH: 600 FRH: Height: 13 1/4", Length: 20", Weight: 8.4 lbs; 650 FRH: Height: 14 1/4", Length: 20", Weight: 8.75 lbs.

Nail Specifications

Clipped-Head Nails: 2" - 3 1/2", 6d - 16d, available in smooth, ring, and screw types with a capacity of 56 - 80 nails.
Full Round Head Nails: Drives 2" - 3 1/2" smooth shank nails and 2" - 3" ring shank nails with shank diameters of .113, .120, .131, and .148.

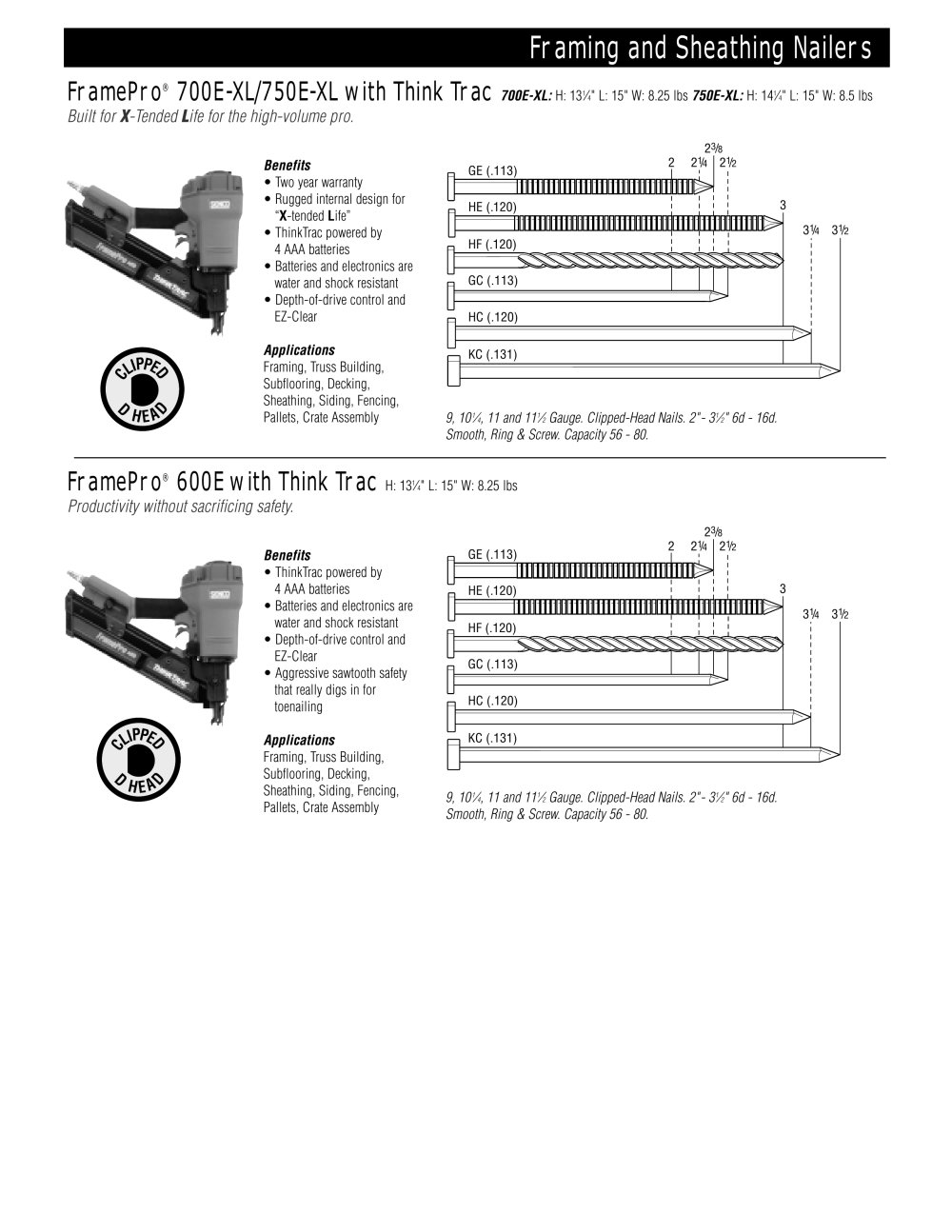

Catalog excerpts

2 3 / 8 Benefits Two year warrantyՕ Rugged internal design for > 1 1 GE (.113) 22 / 4 2 / 2 X -tended L ifeӔ ThinkTrac powered by4 AAA batteriesՕ Batteries and electronics arewater and shock resistant Depth-of-drive control andEZ-Clear > HE (.120) 33 3 1 / 4 1 / 2 HF (.120) GC (.113) HC (.120) Applications Framing, Truss Building, Subflooring, Decking, Sheathing, Siding, Fencing, Pallets, Crate Assembly > D 9, 10 > 1 բD > 4 , 11 and 11 > 1 ⁄ > 2 Gauge. Clipped-Head Nails. 2"- 3 > 1 ⁄ > 2 " 6d - 16d.Smooth, Ring & Screw. Capacity 56 - 80. > 2 3 / 8 1 1 Benefits > GE (.113) 22 / 4 2 / 2 ThinkTrac powered by4 AAA batteriesՕ Batteries and electronics arewater and shock resistant Depth-of-drive control andEZ-ClearՕ Aggressive sawtooth safetythat really digs in for toenailing > HE (.120) 33 3 1 / 4 1 / 2 HF (.120) GC (.113) Applications > HC (.120) Framing, Truss Building, Subflooring, Decking, Sheathing, Siding, Fencing, Pallets, Crate Assembly >

Open the catalog to page 1

2 3 / 8 22 1 / 4 2 1 / 2 Benefits > GE (.113) Two-Year Warranty Օ Rugged internal engine design for X -Tended L ifeӔ Drives a wide variety of clipped headnails from 2" Ֆ 3 > HE (.120) 33 3 1 / 4 1 / 2 HF (.120) 1 ⁄ > 2 " Lightweight at 8.0 lbs.(750XL: 8.4 lbs)Օ Improved comfort grip Aggressive toenail safety > GC (.113) Applications > HC (.120) L D Framing, Truss Building, Subflooring, Decking, Sheathing, Fencing, Pallets and Crate Assembly, Wood-to-Green Concrete > C KC (.131) D Benefits > 2 3 / 8 1 1 Adjustable depth-of-drive drives nails to a consistent and controllable depthՕ Rugged 35˚ angled...

Open the catalog to page 2

1 / 4 2 1 / 2 Benefits > GL (.113, 600/700 only)GD (.113, 600/700 only)HL (.120)HD (.120)KD (.131) 2 3 / 8 Two-Year Warranty Օ Rugged internal engine design for X -tended L ifeӔ Aggressive sawtooth safety thatreally digs in for toenailingՕ In-line magazine for superiorbalance and line of sight Depth-of-Drive control andEZ-Clear feature > 322 3 1 / 4 3 1 / 2 MD (.148) Applications > U Framing, Truss building, Subflooring, Sheathing, Decking, Siding, Fencing, Pallets and Crate Assembly. > ND (.162 650/750 only) FramePro > ծ 700XL FRH nailer drives 2"3 > 1 ֢D > 2 " smooth shank nails (Sencote >...

Open the catalog to page 3
