Product catalog summary

Overview
This document provides detailed specifications and benefits of various SENCO compressors, highlighting their applications, performance metrics, and design features. The compressors are categorized based on their horsepower, design (hand carry, wheelbarrow), and whether they are oil-splash or oil-less.

Compressor Models and Benefits

PC2001 2.0 hp Electric Hand Carry Oil-Splash Compressor: Compact and lightweight, featuring a direct drive motor/pump and a durable cast iron cylinder. It delivers 5.3 cfm at 40 psi and 4.3 cfm at 100 psi, suitable for framing, sheathing, roofing, decking, finish, and trim applications.
PC1001 2.0 hp Twin-Stack Oil-Splash Electric Compressor: Offers a high power-to-weight ratio, lightweight design, and delivers 5.3 cfm at 40 psi and 4.0 cfm at 90 psi. Ideal for similar applications as the PC2001.
PC1005 1.0 hp Oil-Splash Electric Compressor: Lightweight and ergonomically designed for easy carrying, providing 2.9 cfm at 40 psi and 2.4 cfm at 90 psi, suitable for finish and trim work.
PC2002 1.5 hp Hand Carry Oil-Less Compressor: Features a durable cast iron cylinder and air shroud for cooler operation, delivering 5.4 cfm at 40 psi and 4.3 cfm at 100 psi.
PC2012 5.5 hp Honda Engine Wheelbarrow Oil-Splash Compressor: Equipped with a durable cast iron cylinder and dual control for constant run or on/off operations, providing 9.8 cfm at 40 psi and 8.9 cfm at 100 psi.
PC2011 1.5 hp Electric Wheelbarrow Oil-Splash Compressor: Features twin air tanks for even weight distribution and idle control, delivering 12.4 cfm at 40 psi and 10.4 cfm at 100 psi.
PC2014 6.5 hp Honda Engine Wheelbarrow Oil-Splash Compressor: Offers superior performance with a durable cast iron cylinder and dual control, delivering 7.2 cfm at 40 psi and 6.5 cfm at 100 psi.
PC2015 8.0 hp Honda Engine Wheelbarrow Oil-Splash Compressor: Provides ultra-fast pump-up and recovery with a two-stage design, delivering 17.0 cfm at 40 psi and 16.3 cfm at 100 psi.

Specifications
The document includes detailed specifications for each model, such as running amps, power requirements, noise levels, and weight. Dimensions and ratings for each model are also provided, indicating their suitability for various tools and applications.

Warranty and Parts
SENCO compressors come with a one-year limited warranty and a full line of service and replacement parts is available. Users are advised to refer to the Operators Manual and Parts List for detailed information.

Catalog excerpts

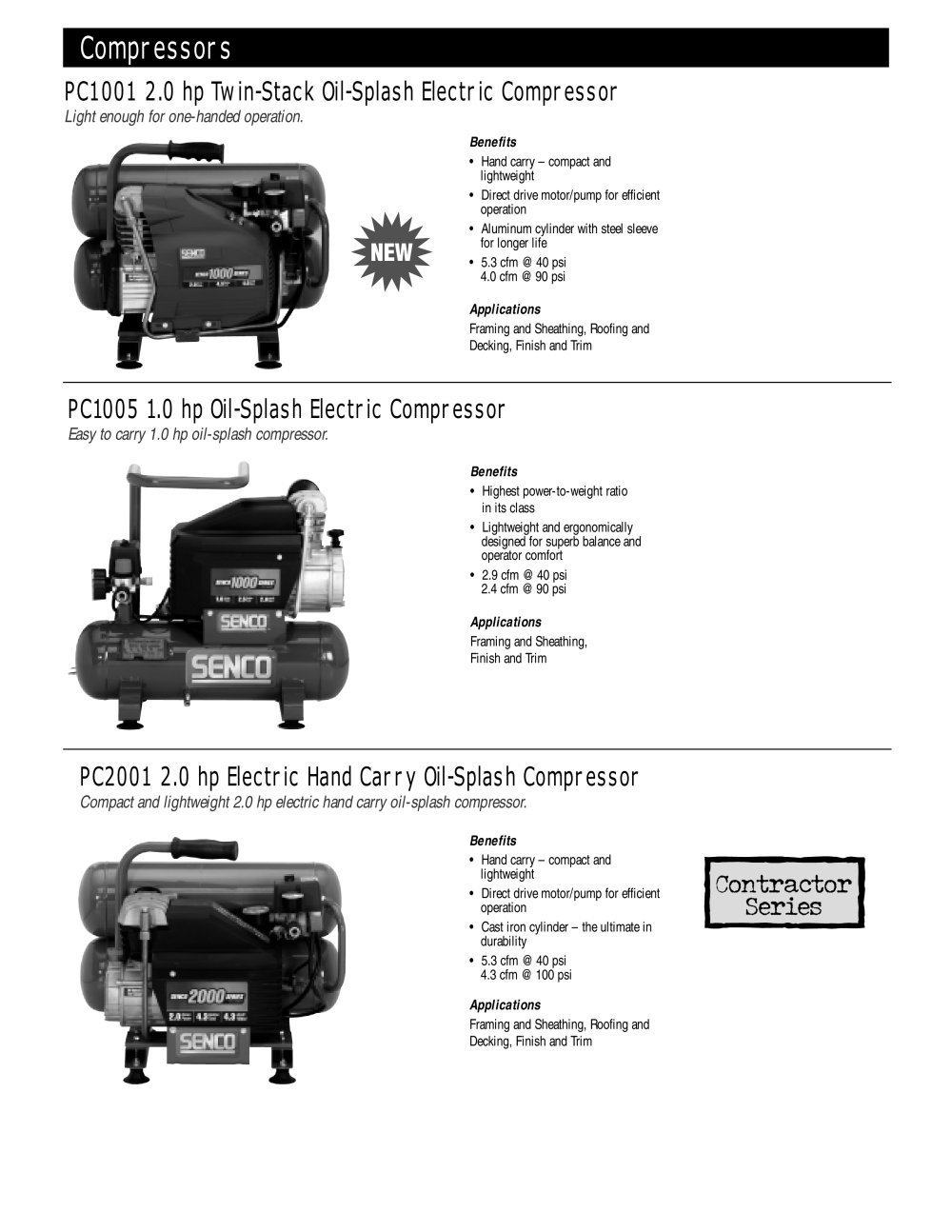

Benefits ? Hand carry compact andlightweight? Direct drive motor/pump for efficientoperation? Aluminum cylinder with steel sleevefor longer life? 5.3 cfm @ 40 psi4.0 cfm @ 90 psi Applications Framing and Sheathing, Roofing andDecking, Finish and Trim > Benefits ? Highest power-to-weight ratio in its class? Lightweight and ergonomically designed for superb balance and operator comfort? 2.9 cfm @ 40 psi2.4 cfm @ 90 psi Applications Framing and Sheathing,Finish and Trim > Benefits ? Hand carry ֖ compact andlightweight? Direct drive motor/pump for efficientoperation? Cast iron cylinder the ultimate indurability? 5.3 cfm @ 40 psi4.3 cfm @ 100 psi > Applications Framing and Sheathing, Roofing andDecking, Finish and Trim >

Open the catalog to page 1

Benefits ? Direct drive motor/pump for reliable operation? Compact and lightweight handcarry design? 5.4 cfm @ 40 psi;4.3 cfm @ 100 psi Applications Finish and Trim > Benefits ? Durable cast iron cylinder for extended wear? Dual control for constant run oron/off operations? 7.2 cfm @ 40 psi6.5 cfm @ 100 psi Applications Framing and Sheathing, Roofing and Decking > Benefits ? Durable cast iron cylinder for extended wear? Air shroud for cooler runningpump and superior heatdissipation? 9.8 cfm @ 40 psi;8.9 cfm @ 100 psi > Applications Framing and Sheathing, Roofing and Decking >

Open the catalog to page 2

Benefits ? Durable cast iron cylinder for extended wear ? Dual control for constant run or on/off operations ? 8.5 cfm @ 40 psi7.2 cfm @ 100 psi Applications > Framing and Sheathing, Roofing and Decking > Benefits ? Twin air tanks for even weight distribution with8.0 gallon capacity? Idle control allows engine to run at low RPM ? 12.4 cfm @ 40 psi10.4 cfm @ 100 psi > Applications Framing and Sheathing, Roofing and Decking > Benefits ? Two stage for ultra-fast pump-up and recovery ? Durable cast iron cylinder for extended wear ? 8.0 Honda > gas engine for superior performance? Oil-splash pump...

Open the catalog to page 3
