Brochure MT

Product catalog summary

Overview: This document provides detailed specifications and options for Permanent Magnet D.C. Servomotors, specifically the MT22, MT30, MT40, and MT52 ranges. It includes mechanical and electrical data, standard features, and optional configurations.

Specifications:

Dimensions are provided in millimeters with specific notes on additional dimensions when encoders or other attachments are added.
Motor types are categorized by frame size, core length, number of poles, and voltage gradient.
Protection ratings include IP44/65, with options for increased protection with additional sealing.

Mechanical and Electrical Data:

Torque, inertia, and weight specifications are provided for each motor type.
Electrical data includes torque constant, stall torque, peak current, and voltage gradients.

Standard Features:

Ferrite Permanent Magnets and skewed motor armature for smooth operation.
Integral tachogenerator and thermal cutouts (except MT22 range).
Standard mounting arrangements and encoder interfacing facilities.

Optional Features:

Various flange and face arrangements, including 'C' and 'CD' flanges.
Different brake options (24V D.C., 90V D.C., 110V A.C.).
Environmental protection options like IP64/65 and tropicalization.
Cooling options include blower preparation and blower-cooled configurations.
Electrical connection options such as terminal boxes and connectors.
Encoder and resolver mounting kits for customer-specified components.

Explanatory Notes:

All dimensions and data are subject to specific tolerances.
Motors must be derated for use with SCR type amplifiers.
Performance curves and full dimensions for blower attachments are available upon request.

Contact Information: SEM Limited, Faraday Way, Orpington, Kent BR5 3QT England. Telephone: +44 (0) 1689 884700, Fax: +44 (0) 1689 884884, Email: [email protected], Website: http://www.sem.co.uk

Catalog excerpts

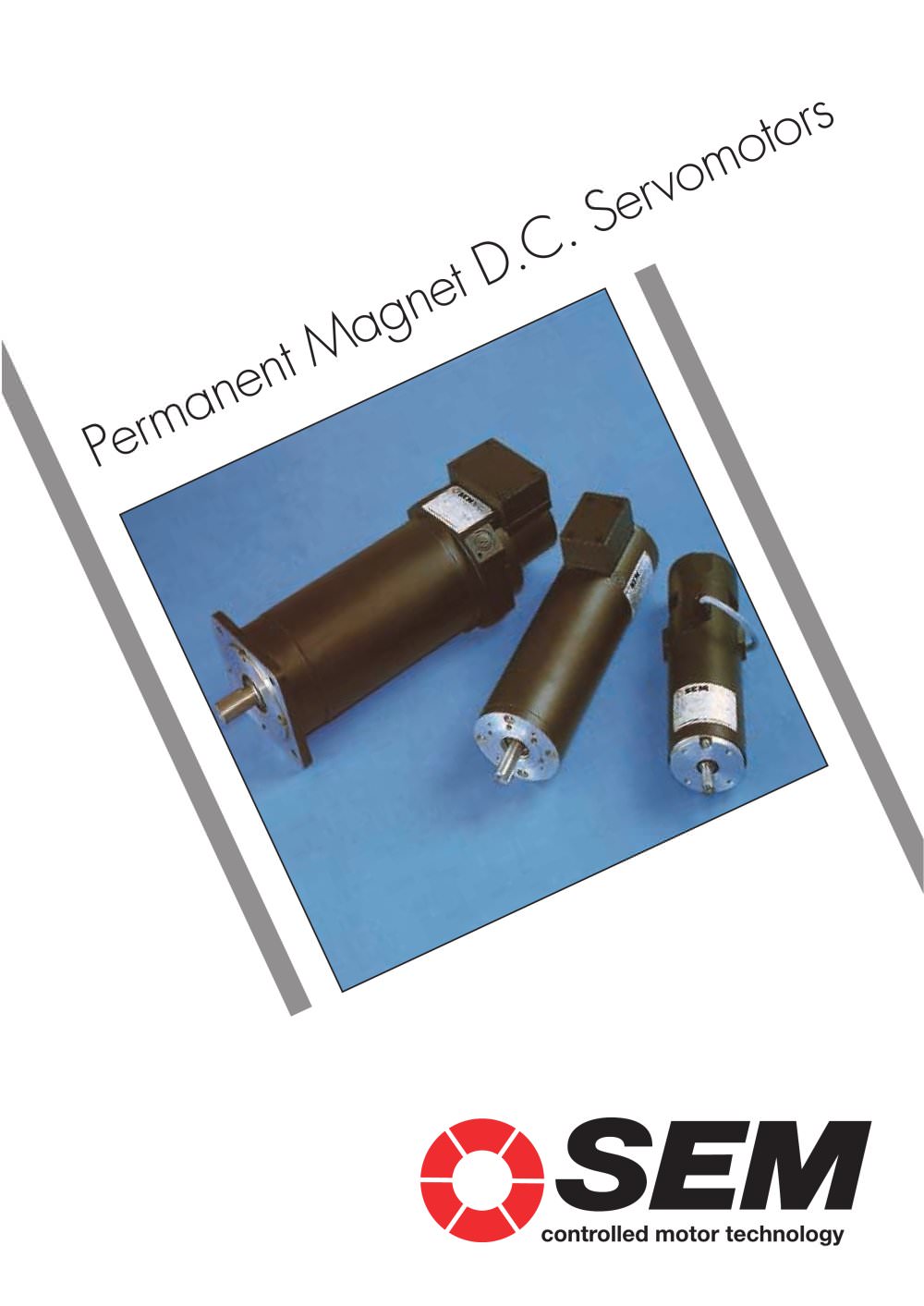

Permanent Magnet D.C. Servomotors >

Open the catalog to page 1

MT30 With Optional IntegralEncoder and MS Connector MT52 Showing StandardIntegral Tacho (SectionedMotor shown) MT52 With Standard CDђFlange MT30 With Optional StubShaft Encoder and Mounting Kit MT52 Showing OptionalIntegral Brake (SectionedMotor shown) MT30 With Optional Cђ Flange MT22 With Optional FlexibleMounted Encoder (HollowShaft) MT22 With Standard Cђ Face MT40 With Optional BlowerAttached Two Types of OptionalEncoder/ResolverEnclosures With StubShaft Adaptors C Face MT30 With Standard ё MT40 With StandardCDђ Flange >

Open the catalog to page 5

DESCRIPTION OPTIONSSERVOMOTOR TYPE MT22MT30MT40MT52 > FLANGE/FACECђ FACE ARRANGEMENTSCDђ FLANGE > TOTALLY ENCLOSED NON-VENTILATED-TENV (IC400) > ELECTRICAL4 ENTRY TERMINAL BOX CONNECTIONM.S. CONNECTOR > FLEXIBLE MOUNTED HOLLOW ENCODER ANDSHAFT ENCODERMOUNTING KITSTUB SHAFT ENCODEROPTIONSMOUNTING KIT > SPECIFIED ENCODER)STUB SHAFT RESOLVERRESOLVERMOUNTING KIT MOUNTING KIT(TO SUIT CUSTOMER > STANDARD FEATURE OPTION NOT AVAILABLE SEM Limited, Faraday Way,Orpington, Kent BR5 3QT England Telephone: +44 (0) 1689 884700 Fax: +44 (0) 1689 884884 E-mail: [email protected] Internet: http://www.sem.co.uk UL...

Open the catalog to page 6
