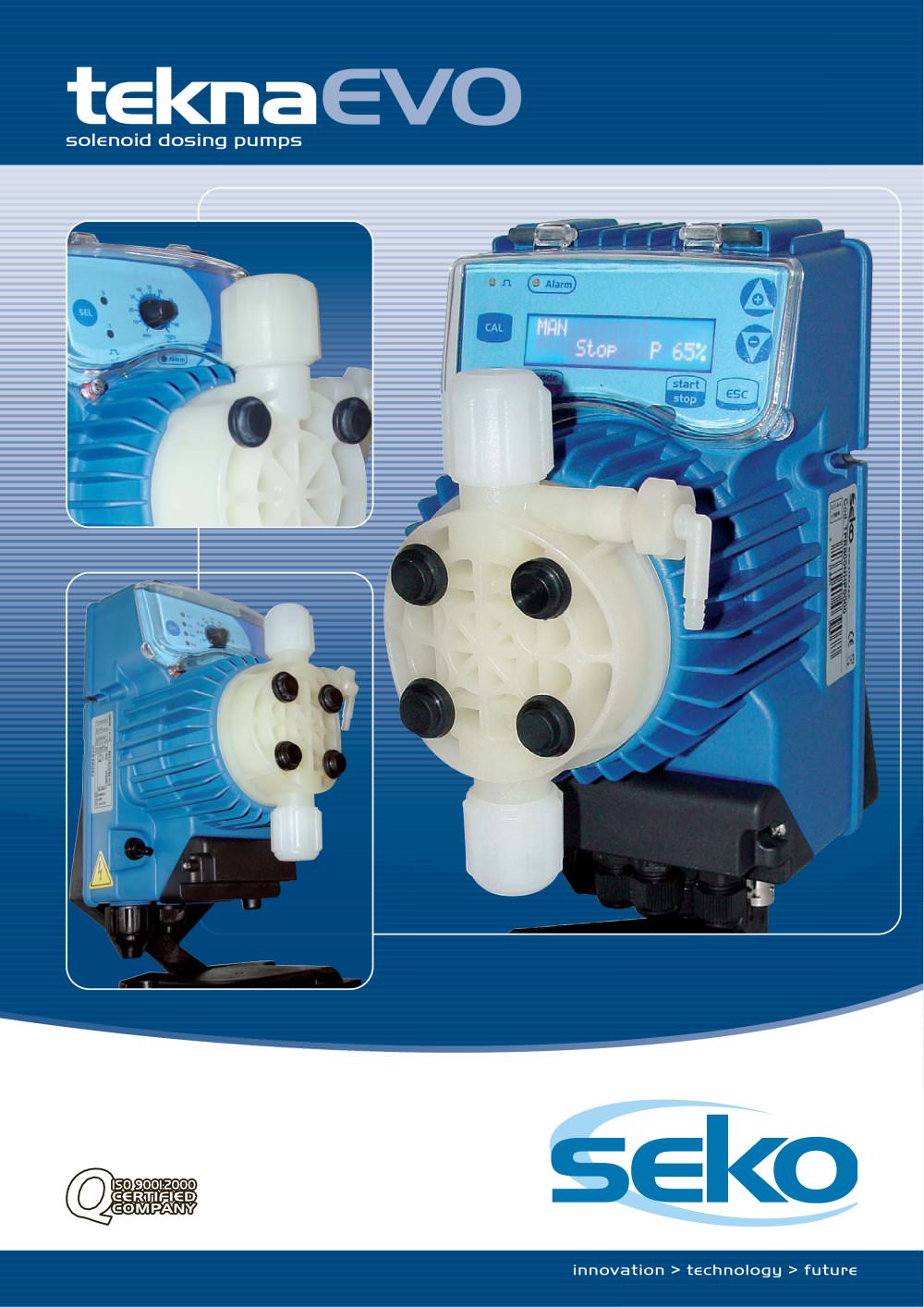

teknaEVO solenoid dosing pumps innovation > technology > future

2 water & industry > solenoid dosing pumps tekna evo The evolution of solenoid dosing pumps Compatible PVDF pump head and ceramic ball valve as standard Full chemical compatibility PVDF is suitable for almost all chemical used in the Industrial, Waste Water Treatment and potableWater applications The use of Ceramic balls as standard improves the pumping reliability and the chemical compatibility of the whole liquid end evo Inventory Reduction Reduce spares stock holding 4 models that cover 1 to 60 lt/h with an output pressure up to 20 Bar 1 Casing allows skids to be pre-constructed, as the...

innovation > technology > future 3 The advanced design and manufacturing process allows the diaphragm to have a unique life expectancy Made of pure solid PTFE, the diaphragm is compatible with most chemicals The diaphragm has been tested over a period of 5 years giving superior results Routine diaphragm replacement is no longer a requirement Reduced maintenance Full chemical compatibility evo Reduced power consumption as the solenoid only draws the required power to activate the pump, based on the working conditions Stable dosing performance: improve pump efficiency as performance is not...

4 water & industry > solenoid dosing pumps tekna evo proportional dosage SEL Alarm SEL 1:1 C 9 8 7 5 6 4 3 2 1 90 80 30 70 40 50 60 20 10 min 100% 10 4:1 10:1 1:n 4-20 Analogue Version teknaEVOAPG Analogue dosing pump with constant flow rate manually adjustable, proportional flow rate according to an external analogue (4÷20 mA) or digital pulse signal (e.g. from water meter). • Control dial (percentage and "n" value in multiplication mode) • 6 position adjustable switch: - 3 in division mode (1, 4, 10 = n) - 1 in multiplication mode (n=1) - 1 for proportional 4÷20 mA signal - 1 for constant...

innovation > technology > future 5 Digital Version proportional dosage ESC start stop PROG mode enter Alarm teknaEVO TPG Digital dosing pump with constant flow rate manually adjustable, proportional flow rate according to an external analog (4÷20 mA) or digital pulse signal (e.g. from water meter). This digital version of the APG, includes additonal characteristics: Timer function, ppm dosing, statistics, password and On/Off input (remote switch) proportional dosage CAL ESC start stop PROG mode enter Alarm teknaEVO TPR Digital dosing pump with pH/Redox control meter built in. • Digital...

6 water & industry > solenoid dosing pumps tekna evo 100 ÷ 240 Vac 50-60 Hz 24 ÷ 48 Vac (just for AKL and APG version) AKL 603 N H H 0 000 AKL APG ATL TPG TPR TCK Analogue dosing pump with constant flow rate manually adjustable Analogue dosing pump with constant flow rate manually adjustable, with proportional flow rate according to an external analog (4÷20 mA) or digital signal (water meter) Analogue dosing pump with constant flow rate manually adjustable and timed dosage with T on-T off double regolation Digital dosing pump with constant flow rate manually adjustable, with proportional...

C A D B • Casing made of PP reinforced with glass fibre • IP 65 rated • PTFE diaphragm • Level control input • Priming valve • Complete standard installation kit composed by: foot filter and injection valve, PVC suction tube, PE delivery tube and fixing bracket innovation > technology > future 7 Technical Features - Flow Rate and Dimensional Drawings Model 600 603 800 803 A (Height) [mm] B (Width) [mm] C (Depth) [mm] D (Max Height) [mm] 231 119 145 257 149 600 603 800 803 Pressure [bar] Flow Rate [lt/h ]

8 water & industry > solenoid dosing pumps tekna evo Typical Installation kontrol 40 MODE esc CAL ente r Backpressure valve Pulse-emitter water meter Flow Sensor Bleed valve Multifuction Valve Mixer Priming-aid Tank Suction Devices On pulse-emitter water meter On control instrument

innovation > technology > future 9 lt/pulse Connections DN (mm) Woltmann Series 25 50 100 250 500 1000 50 50 50 - - - 65 65 65 - - - 80 80 80 - - - 100 100 - - - - - - - 150 150 150 Accessories Pulse-emitter water meter Flanged Water Meters (Dry-dial magnetic coupling) 50 2 65 2 1/2 80 3 100 4 150 6 Water meters, with reading, for cold water up to 30 °C. WE 25 WE 50 WE 100 WE 250 WE 500 WE 1000 Size DN Inch dimension data hydraulic data The meters which we offer have high precision and sensitivity according to CEE standards Their plastic and metallic parts, in particular those in contact...

10 water & industry > solenoid dosing pumps tekna evo Slow mixers [70 rpm] Accessories Tanks • Mixers • Suction devices … Tanks in polyethylene Mixers Tank Code Capacity (Lt) Height (cm) Diameter (cm) SER 50 50 45,5 40 SER 100 100 64 46 SER 250 250 87 59,5 SER 300 300 95 67 SER 500 500 118,5 76 SER 1000 1000 122 108,5 Models and Technical Features Body Shaft length (mm) Motor (kW) PVC AISI 316 600 800 900 1100 90 0,13 100 250 300 500/1000 150 220 Tank reinforcement made of PVC (20 mm thick) to be used to install mixers and motor driven pumps or solenoid dosing pumps on tanks SER series....

innovation > technology > future 11 Accessories Valves • Sensors • Priming-aid Multifunction valve acts as: a back pressure valve, an anti-siphoning valve, a safety valve, a priming valve, a delivery drain valve (for maintenance) Multifunction valve is fitted directly on the delivery valve on the dosing pump. Technical Features Safety valve with pressure selection 6(*) - 12 bar Back pressure valve with pressure 1.5 bar Max temperature of liquid 40°C (*) 6 bar type, supplied with 8/12 tube connections Material PVC Max flow rate 50 lt/h Max pressure 10 bar Connections 1/2” g.m., tube 8x12,...
