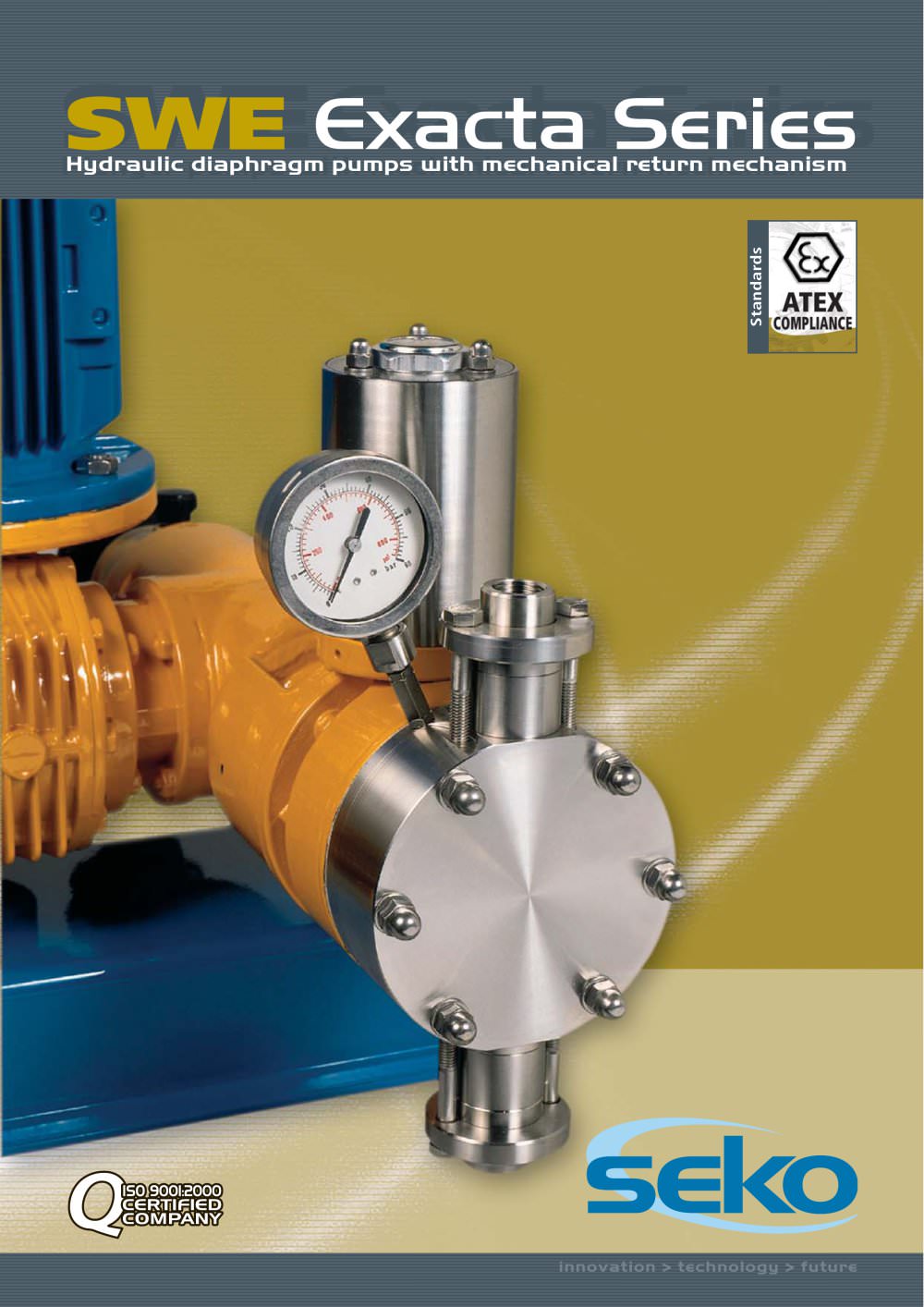

SWEExacta Series SWE Exacta Series Standards Hydraulic diaphragm pumps with mechanical return mechanism Plunger pumps with mechanical return mechanism innovation > technology > future

Open the catalog to page 1

API 675 Hydraulic Diaphgram Metering Pumps Metering pumps can be considered an irreplaceable instrument that allows the transfer, measure and control of liquids in a process. Customers requirements to meet with a broad variety of applications, along with economical considerations, led us to the design of modular systems of pumps. The SWE Exacta Series pumps of SEKO can be assembled to match nearly any dosing and budget requirement with our standard executions. Mechanism EXACTA® E Exacta Series Should a special execution not to be included in our standard manufacturing program, the...

Open the catalog to page 2

The “Exacta” Solution For Your Dosing Demands… SW Pumphead Hydraulic diaphragm pumpheads represent the ideal and sealed solution when transferring toxic or dangerous liquids that could pollute the environment or when the liquid pumped should be protected from external contaminations. Operating principle The diaphragm is hydraulically balanced between the process liquid and the hydraulic fluid and separates the hydraulic liquid from the ambient. The plunger reciprocating movement displaces the hydraulic fluid causing the movement of the diaphragm and an equal displacement of the process...

Open the catalog to page 3

* Ceramic Valves Electric motor ** PTFE disc valve Flow Rate Pressure Stroke rate Piston diameter Motor Powers The shown pressures refer to rated values. Available motors (0,55 - 0,75 - 1,1 - 1,5 kW). For further details please contact our offices. Pump model Piston diameter Pump head S=316L or P=PP Membrane T=PTFE (A) Single Valves • (B) Double Valves Reduction ratio (15 • 19 • 24) Motor Poles (2 • 4) Motor Power Version Type PTTA PTTB STTA STTB PESP SESP Contact parts materials Bar Pumphead Diaphragms max PP PTFE 10 PP PTFE 10 40 316L PTFE 316L PTFE 80 Plastic special versions Stainless...

Open the catalog to page 4

Flow Rate Pressure Stroke rate Piston diameter Motor Powers * PTFE disc valve innovation > technology > future The shown pressures refer to rated values. Available motors (0,75 - 1,1 - 1,5 - 2,2 and 3 kW). For further details please contact our offices. Pump model Piston diameter Pump head S=316L or P=PP Membrane T=PTFE (A) Single Valves • (B) Double Valves Reduction ratio (15 • 20 • 23) Motor Poles (2 • 4) Motor Power Version Type PTTA PTTB STTA STTB PESP SESP Contact parts materials Bar Pumphead Diaphragms max PP PTFE 10 PP PTFE 10 40 316L PTFE 316L PTFE 80 Plastic special versions...

Open the catalog to page 5

Electric motor * PTFE disc valve Flow Rate Pressure Stroke rate Piston diameter Motor Powers The shown pressures refer to rated values. Available motors (2,2 - 3 - 4 - 5 - 7,5 - 9,2 kW). For further details please contact our offices. Pump model Piston diameter Pump head S=316L or P=PP Membrane T=PTFE (A) Single Valves • (B) Double Valves Reduction ratio (15 • 20 • 23) Motor Poles (2 • 4) Motor Power Version Type PTTA PTTB STTA STTB PESP SESP Contact parts materials Bar Pumphead Diaphragms max PP PTFE 10 PP PTFE 10 40 316L PTFE 316L PTFE 80 Plastic special versions Stainless steel special...

Open the catalog to page 6

Dimensional drawings and selection table Model SWE1R SWE2R SWE2RDE SWE3 SWE3DE * Without Electric motor, depending on pumphead size The trouble-free operation of a pump depends mainly by an installation studied for the required duty; the choice of the suitable accessories and their sizing are very important to fit the pump in a functional system. Filters Liquids may contain impurities that can cause the malfunctioning of the valves and consequently flow fluctuation and even the clogging of the pipes. To prevent these dangerous situations it is advisable to install a filter on the suction...

Open the catalog to page 7

SEKO Asia Pacific SINGAPORE • SEKO China CHINA • SEKO do Brasil BRAZIL • SEKO Dosing Systems USA • SEKO Deutschland GERMANY • SEKO France FRANCE • SEKO Iberica SPAIN SEKO Italia ITALY • OOO SEKO RUSSIA • SEKO Northern Europe DENMARK • SEKO SIETA ROMANIA • SEKO Southern Africa SOUTH AFRICA • SEKO UK UNITED KINGDOM BRO SWEUK 062 The technical data may be modified without notice. The drawings and images are only indicative
