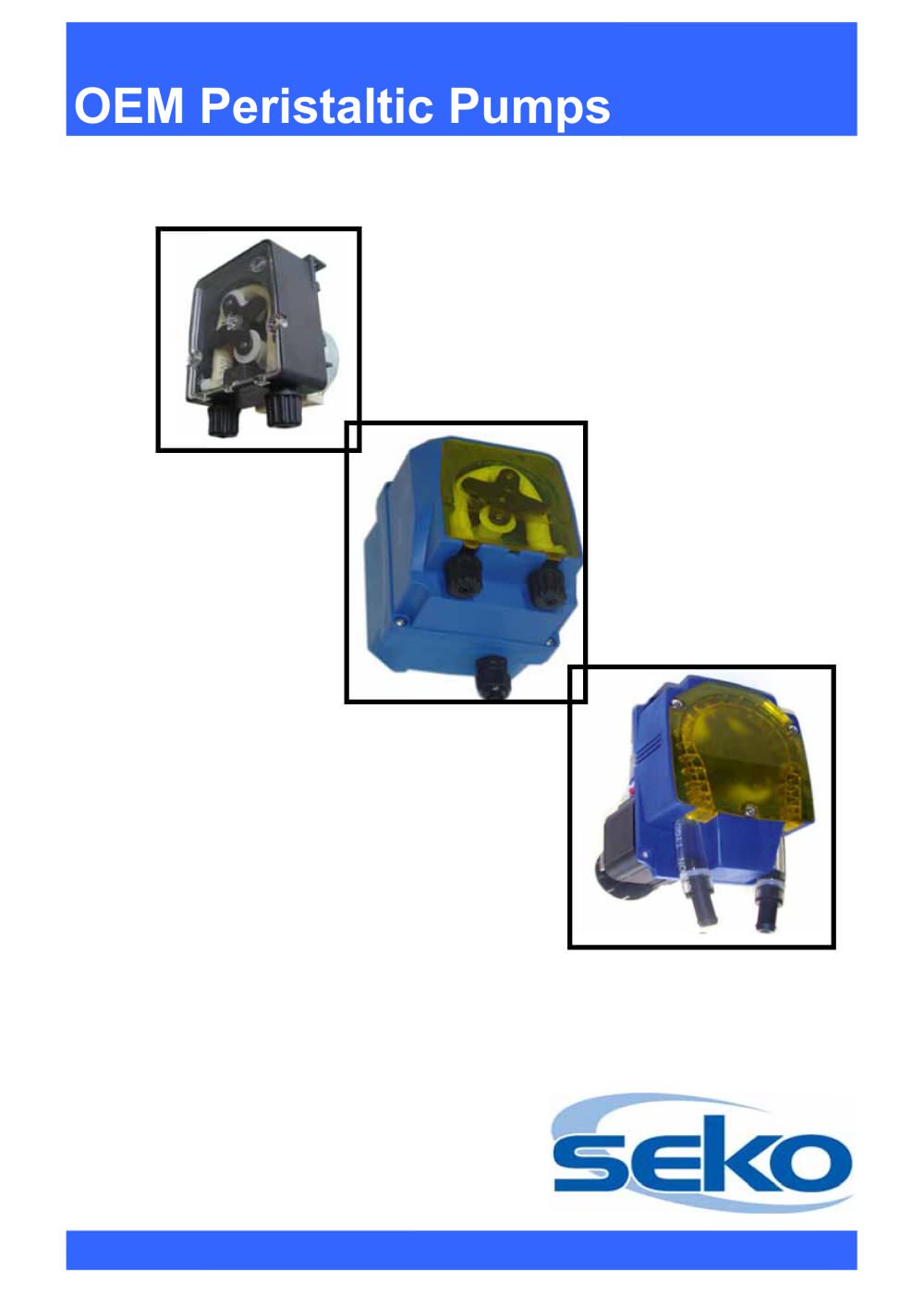

OEM's Peristaltic Pumps catalogue

OEM's Peristaltic Pumps catalogue

Product catalog summary

Overview: This document details the specifications and options for OEM peristaltic pumps, designed for panel and bracket mounting. These pumps are suitable for applications requiring IP 65 protection and offer various flow rates and power supply options.

Specifications:

Flow rates range from 1.33 to 100.0 ml/min (0.08 to 6.0 l/h), with adjustable flow rates available in some models.
Power supply options include 24 Vac, 115 Vac, and 230 Vac.
Standard tubing connections are ID4/OD6 mm, with options for 5, 6, and 8 mm ID tubing.
Transaxle technology is available for heavy-duty and long-life operation.

Models and Features:

Series PP: Open case, panel mounting, AC motor, fixed flow rate.
Series PG: Open case, bracket mounting, AC motor, fixed flow rate.
Series PBR: Open case, bracket mounting, AC motors, adjustable flow rate.
Series PE: IP65 case, wall mounting, AC power, fixed flow rate.
Series PR: IP65 case, wall mounting, AC power, speed regulation.
Series PSG: Open case, panel mounting, AC motor, fixed flow rate.

Performance and Limitations:

Flow rate values are measured with water; actual performance may vary based on tubing type, age, pressure, and fluid viscosity.
Some models are recommended for intermittent running only.

Additional Options:

Food-grade tubing is available upon request.
Models with built-in fixing brackets are available for installations where pumps should not be easily accessible.

Additional Specifications: The document outlines specifications for a series of peristaltic pumps with fixed flow rates ranging from 500 to 1383 ml/min (30 to 83 l/h), selectable via jumpers on the motors. These pumps operate on a 24 Vdc power supply and are equipped with connections for ID8 mm inlet-outlet tubing.

Flow Rates and Tubing: Flow rates are measured with water, and actual values may vary based on tubing type, age, pressure, and viscosity. The pumps are compatible with various tubing materials, including Tygon R1000, Norprene, Sekobril, Sekoflex, and Sekokem, each with specific chemical compatibility and limitations.

Accessories: The document lists several accessories for pump installation, such as PP foot filters, non-return valves, connectors, and tubing rolls in various sizes and materials, suitable for different applications and pressures.

Chemical Compatibility: A detailed chart provides the chemical compatibility of different tubing materials with various chemicals, rated as Excellent (E), Good (G), Fair (F), or Not Recommended (U). The ratings are based on tests conducted at room temperature and may vary with temperature changes.

Recommendations: Users are advised to conduct tests under their specific application conditions before selecting a tubing formulation, as chemical resistance can be affected by prolonged exposure and elevated temperatures.

Catalog excerpts

The pumps of the series PG, PBR, PR PE and PP with AC or DC motors can be supplied with food grade tubing and inlet/outlet connector.Available tubing are in SANTOPRENE 6 x 10 and SEKOBRIL 6x10. Inlet Outlet connection are for ID8mm tubing. For the available flow rate please refere to the specific page of the catalogue >

Open the catalog to page 13
