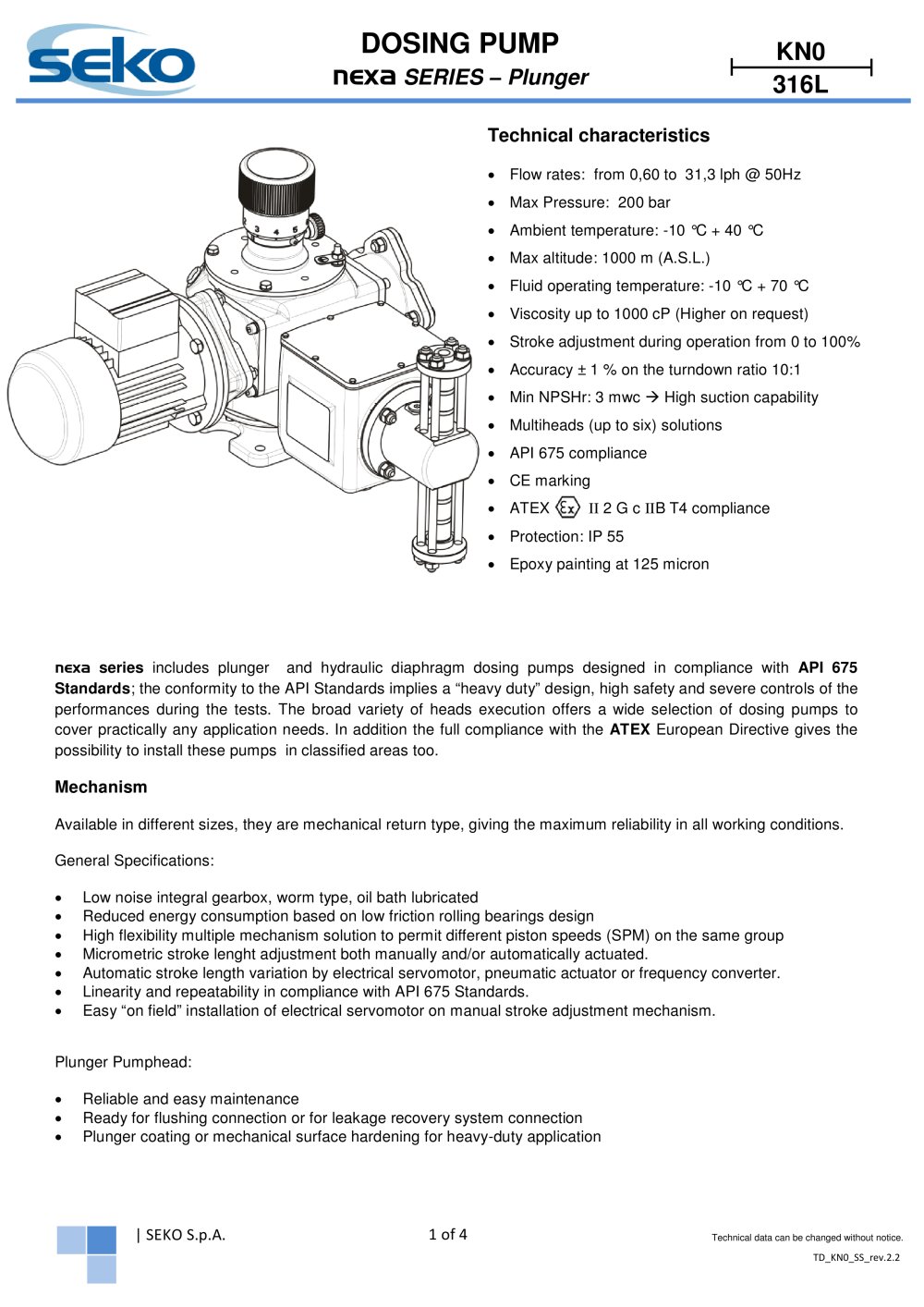

| SEKO S.p.A. KN0 316L DOSING PUMP nexa SERIES – Plunger Technical data can be changed without notice. TD_KN0_SS_rev.2.2 1 of 4 nexa series includes plunger and hydraulic diaphragm dosing pumps designed in compliance with API 675 Standards; the conformity to the API Standards implies a “heavy duty” design, high safety and severe controls of the performances during the tests. The broad variety of heads execution offers a wide selection of dosing pumps to cover practically any application needs. In addition the full compliance with the ATEX European Directive gives the possibility to install these pumps in classified areas too. Mechanism Available in different sizes, they are mechanical return type, giving the maximum reliability in all working conditions. General Specifications: „h Low noise integral gearbox, worm type, oil bath lubricated „h Reduced energy consumption based on low friction rolling bearings design „h High flexibility multiple mechanism solution to permit different piston speeds (SPM) on the same group „h Micrometric stroke lenght adjustment both manually and/or automatically actuated. „h Automatic stroke length variation by electrical servomotor, pneumatic actuator or frequency converter. „h Linearity and repeatability in compliance with API 675 Standards. „h Easy “on field” installation of electrical servomotor on manual stroke adjustment mechanism. Plunger Pumphead: „h Reliable and easy maintenance „h Ready for flushing connection or for leakage recovery system connection „h Plunger coating or mechanical surface hardening for heavy-duty application Technical characteristics „h Flow rates: from 0,60 to 31,3 lph @ 50Hz „h Max Pressure: 200 bar „h Ambient temperature: -10 °C + 40 °C „h Max altitude: 1000 m (A.S.L.) „h Fluid operating temperature: -10 °C + 70 °C „h Viscosity up to 1000 cP (Higher on request) „h Stroke adjustment during operation from 0 to 100% „h Accuracy ± 1 % on the turndown ratio 10:1 „h Min NPSHr: 3 mwc „³ High suction capability „h Multiheads (up to six) solutions „h API 675 compliance „h CE marking „h ATEX II 2 G c IIB T4 compliance „h Protection: IP 55 „h Epoxy painting at 125 micron
Open the catalog to page 1| SEKO S.p.A. KN0 316L DOSING PUMP nexa SERIES – Plunger Technical data can be changed without notice. TD_KN0_SS_rev.2.2 2 of 4 PUMP KEY CODE
Open the catalog to page 2| SEKO S.p.A. KN0 316L DOSING PUMP nexa SERIES – Plunger Technical data can be changed without notice. TD_KN0_SS_rev.2.2 4 of 4 Allowable loads referred to pump nozzles Fx 0.10 KN Mx 0.04 KNm Fy 0.12 KN My 0.04 KNm Fz 0.10 KN Mz 0.04 KNm DIMENSIONS [mm] EXTIMATED WEIGHT Kg PUMP MODEL A B C D F (without motor) 1K06N01AC.. BSPP 1/4"F 116 116 283 42 28 1K08N01AC.. BSPP 1/4"F 116 116 283 42 28 1K10N01AC.. BSPP 1/4"F 116 116 303 49 29 1K12N01AC.. BSPP 1/4"F 93 93 303 49 29 1K15N01AB.. BSPP 1/4"F 93 93 303 49 29 1K20N01AB.. BSPP 1/4"F 116 116 316 53 29 1K25N01AB.. BSPP 1/4"F 81 81 316 53 29...
