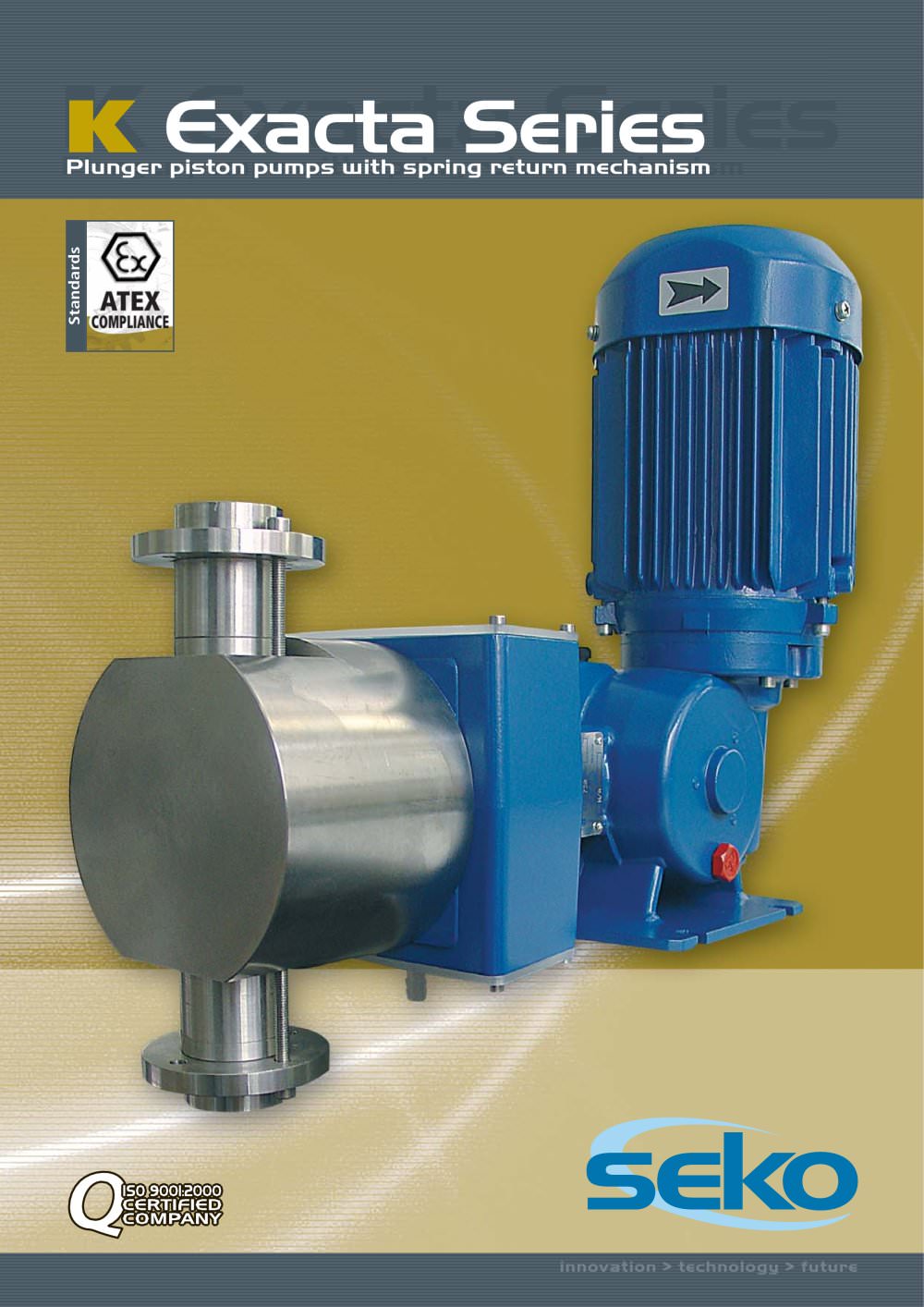

innovation > technology > future Standards K Exacta Series Plunger pumps with spring return mechanism K Exacta Series Plunger piston pumps with spring return mechanism

2 process & systems division > plunger piston pumps with spring return mechanism The K Exacta Series is the result of many years experience acquired by SEKO BONO EXACTA in many application fields. Economical and reliable, with mechanical actuated diaphragm, this series is an ideal solution for industrial applications where chemicals have to be pumped safely at low pressure.A very low maintenance is one of the main reason to chose this models. The K Exacta Series pumps adopt the principle of the eccentric with spring return to control the stroke variation and therefore the dosing of the pumped...

innovation > technology > future 3 The flow rate of the pump can be done by: ¡ Manually with grip handle and graded vernier ¡ Electric servomotor with a 4-20mA signal and manual emergency adjuster ¡ Inverter, by regulating the speed of the motor, keeping the manual adjustment on the stroke length ¡ Pneumatic servomotor, especially for classified areas Two models of plunger dosing pumps KS1 (maximum stroke length 15mm) and KS2 (maximum stroke length 25mm) offer a large range of flow rates up to 1.000 l/h. The K Exacta Series pumps are also available with adjustable packing and therefore a high...

Liquid End SS 316 L or PVC pump head (standard). The material in contact with the liquid to be dosed are listed in the “pump head materials” table (special materials may be supplied on request) SS 316 L or Ceramic Piston The packing seals on the piston, can either be automatic by lip or by adjustable "V" ring Max. Dosage Temperature • SS 316 L pump head: 90° C • PVC pump head: 40° C Flow Rate Adjustment Every pump can be equipped with an electric actuator which accepts a 4-20 mA signal, please note that pumps come with manual adjustment as standard. Piston Diameter SS 316 L A B C T 6 120 210...

Liquid End SS 316 L or PVC pump head (standard). The material in contact with the liquid to be dosed are listed in the “pump head materials” table (special materials may be supplied on request) SS 316 L or Ceramic Piston The packing seals on the piston, can either be automatic by lip or by adjustable "V" ring Max. Dosage Temperature • SS 316 L pump head: 90° C • PVC pump head: 40° C Flow Rate Adjustment Every pump can be equipped with an electric actuator which accepts a 4-20 mA signal, please note that pumps come with manual adjustment as standard. Piston Diameter SS 316 L A B C T 25 120 258...

SEKO Asia Pacific SINGAPORE • SEKO China CHINA • SEKO do Brasil BRAZIL • SEKO Dosing Systems USA • SEKO Southern Africa SOUTH AFRICA • SEKO Deutschland GERMANY • SEKO France FRANCE • SEKO Iberica SPAIN • SEKO Italia ITALY • SEKO Sieta ROMANIA • OOO SEKO RUSSIA • SEKO UK UNITED KINGDOM w w w . s e k o . c o m BRO KSPUK 061 The technical data may be modified without notice. The drawings and images are only indicative
