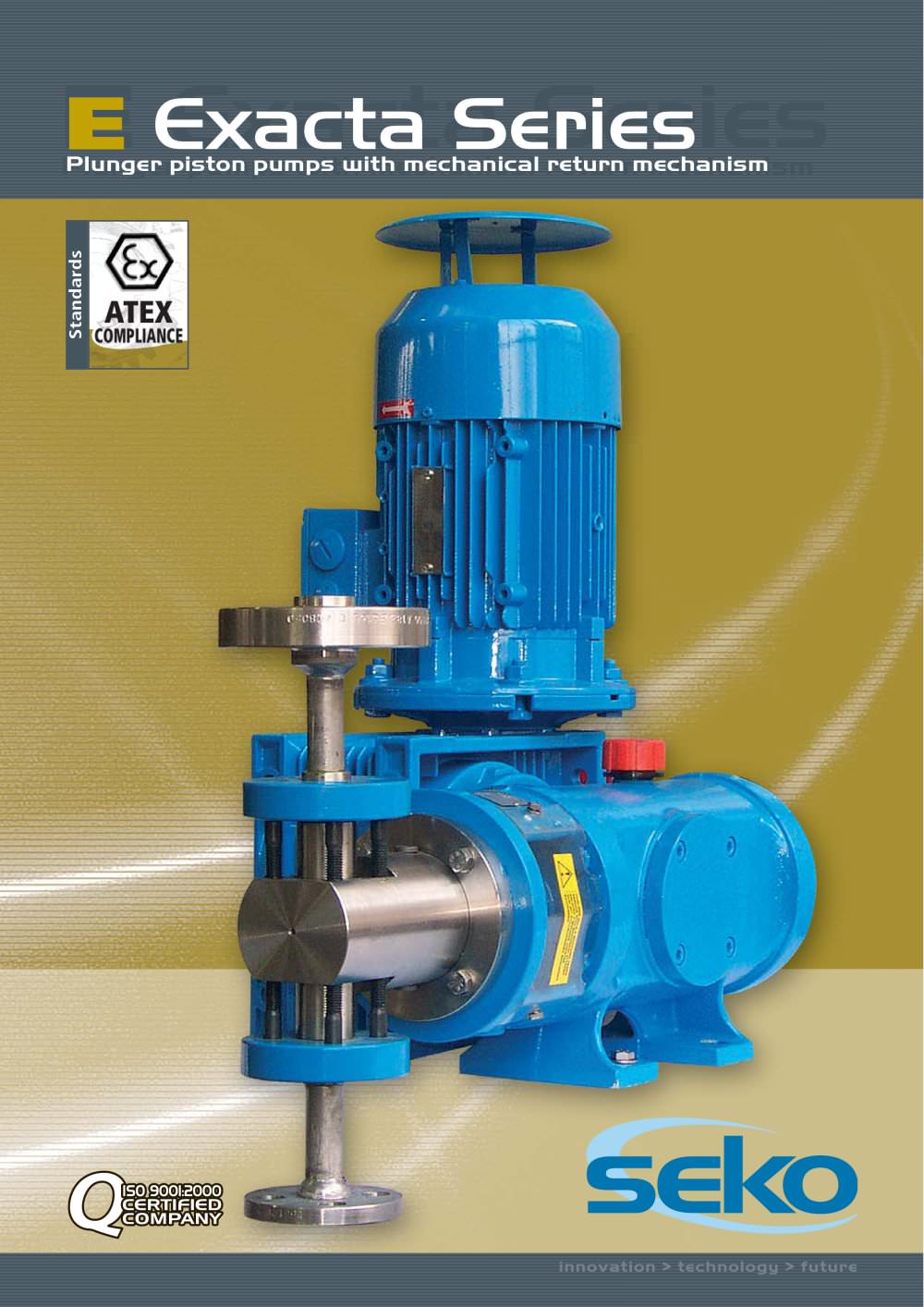

Exacta Series E Exacta Series Standards Plunger piston pumps with mechanical return mechanism Plunger pumps with mechanical return mechanism innovation > technology > future

API 675 Plunger Piston Pump Heads: Our Co The plunger pumps of the SEKO E Exacta Series are the ideal choice for applications with harmless liquids. They are simple, easy to maintain, highly accurate and very reliable. The plunger and packing are wetted by the medium. It is this very important to select suitable materials to ensure the best performances. Should a special execution non- Mechanism EXACTA® E Exacta Series The mechanisms of the E Exacta Series have been designed conforming to API 675 Standards. Three sizes of increasing power are available. Oil bath lubricated, very compact and rugged,...

ompetitive Solution For Your Dosing Demands… Types of pump head Plunger heads with adjustable packing The packings are designed with PTFE “V” seals (executions STA, STB) or with Kevlar/PTFE square rings (executions SBB, SBF) for high pressure. Moreover, the packing can be completed with a lantern ring that allows: • an hydraulic barrier to insulate liquefied gases from the ambient; Heating Jacket • a method of piping the leakage away to a safe area; • injecting a lubricant into the packing; • flushing the plunger in order to dilute leakage and remove abrasive particles. Plunger heads with automatic...

Versions available: Standard (E1R) and High Pressure (E1RHP) Technical Features Flow Rate Stroke rate Piston diameter Motor Powers Standard (E1R) from 0.6 to 1526 l/h (0.19 to 382 gph) High Pressure (E1RHP) from 1 to 323 l/h (0.32 to 78,1 gph) Standard (E1R) from 200 to 7 bar (2900 to 102 p.s.i.) High Pressure (E1RHP) from 800 to 240 bar (11600 to 3480 p.s.i.) 59 • 74 • 93 • 118 • 147 stokes/min. (50Hz) from 4 to 120 mm 0,55(D) • 0,75(E) • 1,1(F) • 1,5(G) kW Reduction ratio (15 • 19 • 24) Motor Poles (2 • 4) Motor Power Contact parts materials Pump head Pump model Piston diameter Pump head S=316L...

Electric Suc/Dis motor Connec Versions available: Standard (E2R & E2RDE) and High Pressure (E2RHP) Technical Features Flow Rate Standard (E2R & E2RDE) from 18 to 12960 l/h (4.8 to 3423.7 gph) High Pressure (E2RHP) from 1 to 323 l/h (0,32 to 78,1 gph) Standard (E2R & E2RDE) from 200 to 3.5 bar (2900 to 51 p.s.i.) High Pressure (E2RHP) from 800 to 240 bar (11600 to 3480 p.s.i.) Stroke rate Piston diameter Motor Powers The shown pressures refer to rated values. Available motors (0,55 - 0,75 - 1,1 - 1,5 - 2,2 and 3 kW). For further details please contact our offices. Version Model number Contact...

Electric Suc/Dis motor Connec Versions available: Standard (E3 & E3DE) and High Pressure (E3HP) Technical Features Flow Rate Stroke rate Piston diameter Motor Powers The shown pressures refer to rated values. Available motors (2,2 - 3 - 4 - 5,5 - 7,5 e 9,2 kW). For further details please contact our offices. Pump model Piston diameter Pump head S=316L Packing: (T) PTFE • (N) NBR • (V) FPM (B) Square rings • (H) High Pressure (A) Single Valves • (B) Double Valves (F) Wing Valves Reduction ratio (15 • 19 • 24) Motor Poles (2 • 4) Motor Power Contact parts materials Pump head PTFE PTFE PTFE 316L...

DIMENSIONS AND WEIGHT OF ELECTRIC MOTORS Power kW innovation > technology > future

SEKO Asia Pacific SINGAPORE • SEKO China CHINA • SEKO do Brasil BRAZIL • SEKO Dosing Systems USA • SEKO Deutschland GERMANY • SEKO France FRANCE • SEKO Iberica SPAIN SEKO Italia ITALY • OOO SEKO RUSSIA • SEKO Northern Europe DENMARK • SEKO SIETA ROMANIA • SEKO Southern Africa SOUTH AFRICA • SEKO UK UNITED KINGDOM BRO EPPUK 062 The technical data may be modified without notice. The drawings and images are only indicative
