3C TRIPLEX Exacta Series

3C TRIPLEX Exacta Series

Product catalog summary

Overview: The 3C Triplex Exacta Series is a line of three plunger reciprocating pumps designed by SEKO, adhering to API 674 standards. These pumps are engineered for heavy and continuous industrial processes, emphasizing reliability and durability.

Mechanism: The pumps feature a unique design that allows operation at low speeds without the need for forced lubrication or cooling. This makes them suitable for handling viscous liquids, hot products, or liquids with low vapor pressure. The design ensures silent and vibration-free operation due to precise mass balancing and sizing.

Pump Head: The pump head consists of three horizontally arranged cylinders with single-acting plungers. The low-speed operation reduces wear on moving parts, simplifying maintenance as components can be replaced from the front without disconnecting the pump from the piping.

Applications: These pumps are versatile, serving industries such as oil and gas, iron and steel, chemical, water treatment, desalination, and food processing. They are used for tasks like well head injection, descaling in metallurgical plants, and feeding reverse osmosis plants.

Technical Features: The pumps offer a range of flow rates and pressures, with various models available to suit different industrial needs. They can be equipped with different drives, including mechanical, hydraulic, and electric speed variators.

Accessories: Proper installation is crucial for optimal pump performance. Accessories such as safety valves, pulsation dampers, and calibration pots are recommended to ensure safe and efficient operation.

Energy Efficiency: The design of the pumps allows for significant energy savings, up to 60% compared to traditional systems, by reducing power consumption when pressure or flow rate decreases.

Materials and Construction: The pumps are constructed using materials like carbon steel, 316 stainless steel, and 304 stainless steel, with options for ceramic-lined components. This ensures durability and compatibility with various industrial fluids.

Conclusion: The 3C Triplex Exacta Series pumps are a robust solution for demanding industrial applications, offering flexibility, efficiency, and ease of maintenance.

Catalog excerpts

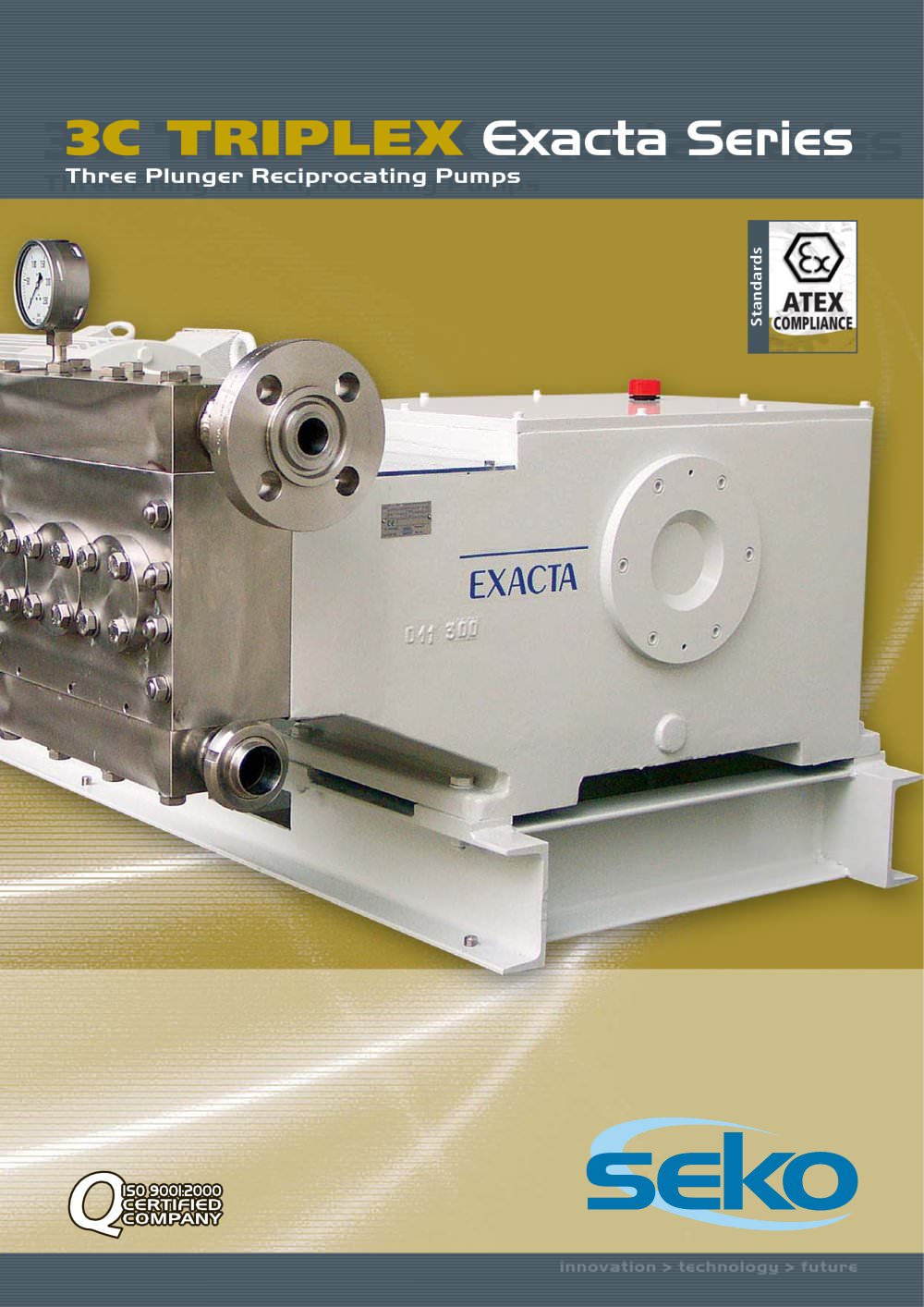

3C TRIPLEX Exacta Series Three Plunger Reciprocating Pumps innovation > technology > future Standards 3C TRIPLEX Exacta Series Three Plunger Reciprocating Pumps

Open the catalog to page 1

3C Triplex pumps designed according to API 674 Standards, represent the result of SEKO’s long experience in applications such as heavy and continuous industrial processes where reliability and durability are essential conditions. 2 process & systems division > three plungers reciprocating pumps 3C TRIPLEX three plungers reciprocating pump Standards Mechanism • The unique design of the mechanism allows the pump operation at very low speed without forced lubrication or cooling requirement, which makes “3C” pumps suitable for applications where a slow plunger motion is required e.g. to suck and...

Open the catalog to page 2

innovation > technology > future 3 ps to API 674 • Desalination: feeding of the reverse osmosis plants • Food industry: feeding of fruit puree to the heat exchanger in the pastorization process, concentrate of tomato transfer, homogenizers feeding. TC Execution The peculiar design of the pumps allows to fit two pump heads on the same mechanism, therefore the capacities shown on the “Selection Table” can be doubled. SW3C Hydraulic diaphragm pumps for transfer of slip and high abrasive slurries A complete line of pumps equipped with hydraulic diaphragm pumpheads designed for the transfer of abrasive...

Open the catalog to page 3

3C30 & 3C55 Triplex Exacta Series 4 process & systems division > three plungers reciprocating pumps Piston Flow Rate Max. Pressure Diameter (L/h) (Barg) P10 242 201 161 121 81 40 1150 P20 966 805 644 483 322 161 285 P25 1510 1258 1007 755 503 252 183 P30 2175 1812 1450 1087 725 362 125 P35 2960 2467 1973 1480 987 493 94 P40 3866 3222 2577 1933 1289 644 70 TRIPLEX 3C30 Pump head execution: C=Carbon Steel, S=316 Stainless Steel, X=304 Stainless Steel S P10 Piston diameter Flow Rate from 40 to 3866 l/h Technical Features Pressure from 1150 to 70 barg 3C Pump model Model number (Key to symbols) 30...

Open the catalog to page 4

Pump head execution: C=Carbon Steel, S=316 Stainless Steel, X=304 Stainless Steel S P30 Piston diameter Flow Rate from 2.900 to 75,676 l/h Technical Features Pressure from 570 to 62 barg 3C Pump model Model number (Key to symbols) 80 Stroke lenght (mm) Piston diameter from 30 to 90 mm Motor Powers 37 • 45 • 55 • 75 • 90 • 110 Kw B Square ring packings F=single wing valve, G=double wing valve, A=single ball valve, B=double ball valve F Version C S X Contact parts materials Carbon Steel 304 SS 316SS Head Body Stainless steel Ceramic lined Stainless steel Pistons Valves 316SS Seats 316SS Packing...

Open the catalog to page 6

BRO TPXUK 061 The technical data may be modified without notice. The drawings and images are only indicative SEKO Asia Pacific SINGAPORE • SEKO China CHINA • SEKO do Brasil BRAZIL • SEKO Dosing Systems USA • SEKO Southern Africa SOUTH AFRICA • SEKO Deutschland GERMANY • SEKO France FRANCE • SEKO Iberica SPAIN • SEKO Italia ITALY • SEKO Sieta ROMANIA • OOO SEKO RUSSIA • SEKO UK UNITED KINGDOM w w w . s e k o . c o m
