RZ Dehumidifiers

Product catalog summary

Overview: The document provides technical specifications and operational details for the Recusorb dehumidifier models RZ-81, RZ-82, RZ-101, RZ-102, and RLZ-104. These dehumidifiers are designed for storage applications, featuring a washable rotor and built-in heat recovery, ensuring no desiccant carry-over and a long lifetime.

Specifications:

Dehumidifying Capacity: Ranges from 19 to 65 kg/h at 20°C and 60% RH.
Dry Air Flow: Ranges from 2800 to 10500 m³/h.
Static Pressure: 400 Pa for dry air flow and 200 Pa for wet air flow.
Heater Power: Varies from 24 kW to 80 kW depending on the model.
Maximum Electric Consumption: Ranges from 27 kW to 92 kW.
Supply Fuse: Different configurations based on model, e.g., 3x 230/400V 50Hz.
Weight: Varies from 294 kg to 558 kg.

Operational Details:

The dehumidifiers operate efficiently with a high number of channels in the rotor, enhancing moisture adsorption.
The temperature of the dry air is calculated using the formula: tout = tin + (K x 14) + 5.
Capacity adjustments for different inlet conditions can be made using a correction factor from a provided diagram.

Dimensions: Specific dimensions are provided for each model, detailing measurements such as height, width, and depth.

Additional Features:

Available with electric, steam, or gas heaters.
Installation drawings can be downloaded from the manufacturer's website.

Contact Information: Seibu Giken DST AB, located in Spånga, Sweden, provides contact details for further inquiries.

Catalog excerpts

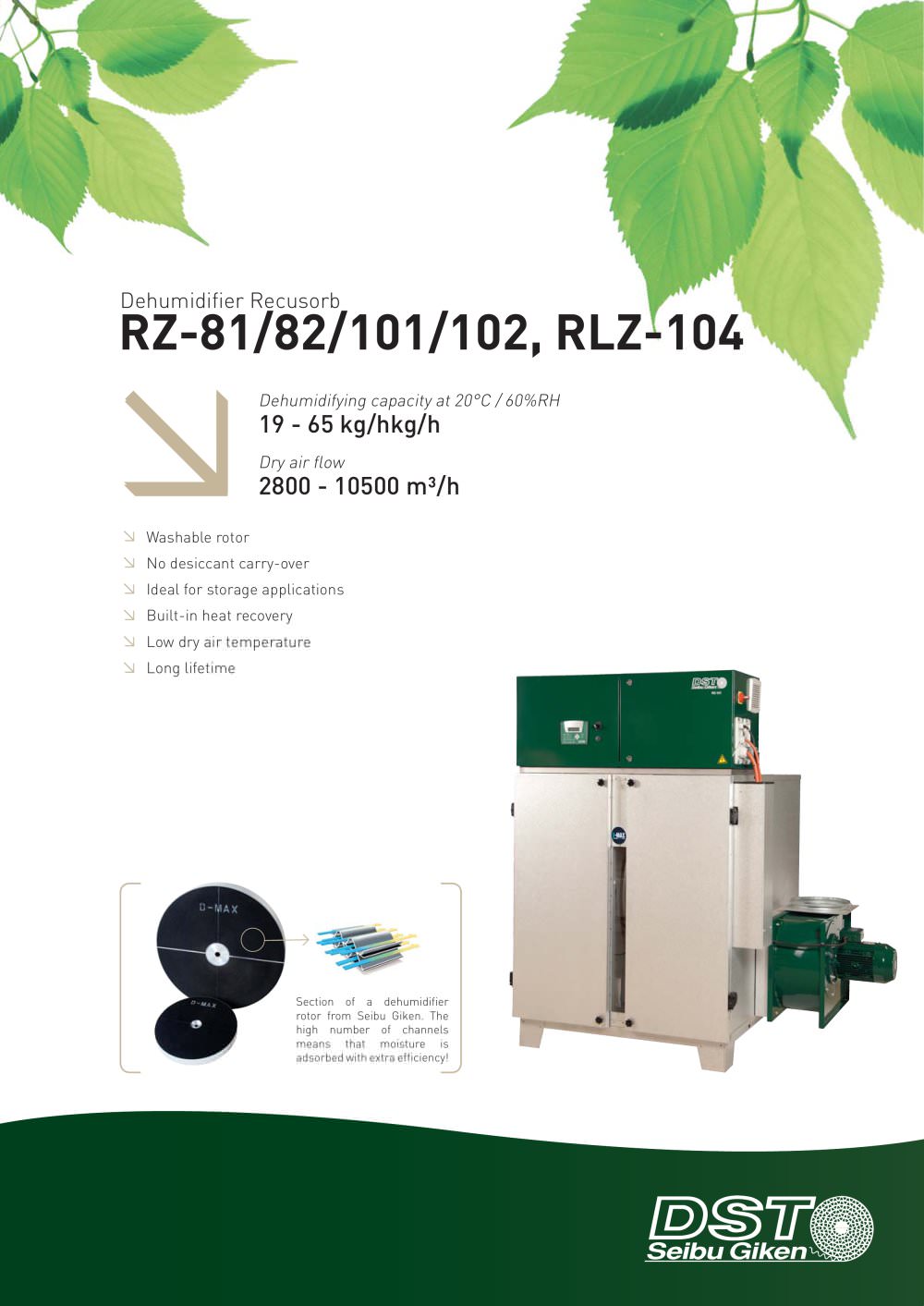

Dehumidier Recusorb 2800 - 10500 m³/h Washable rotor No desiccant carry-over Ideal for storage applications Built-in heat recovery Low dry air temperature Long lifetime Section of a dehumidier rotor from Seibu Giken. The high number of channels means that moisture is adsorbed with extra efciency!

Open the catalog to page 1

TECHNICAL DATA Dehumidier model Static pressure at disposal (Pa) Static pressure at disposal (Pa) Rotor motor Maximum electric consumption (kW) Valid for inlet conditions 20°C/ 60%RH. For other inlet conditions the capacity can be calculated by using the correction factor from the diagram shown below. CORRECTION DIAGRAM Volume ow for density 1.20 kg/m³. Available with electric heater, steam heater or gas heater The temperature of the dry air at nominal air ows is calculated by: tout = tin + ( K x 14 ) + 5 The dehumidifying capacity is estimated as the nominal capacity from above, multiplied by...

Open the catalog to page 2
