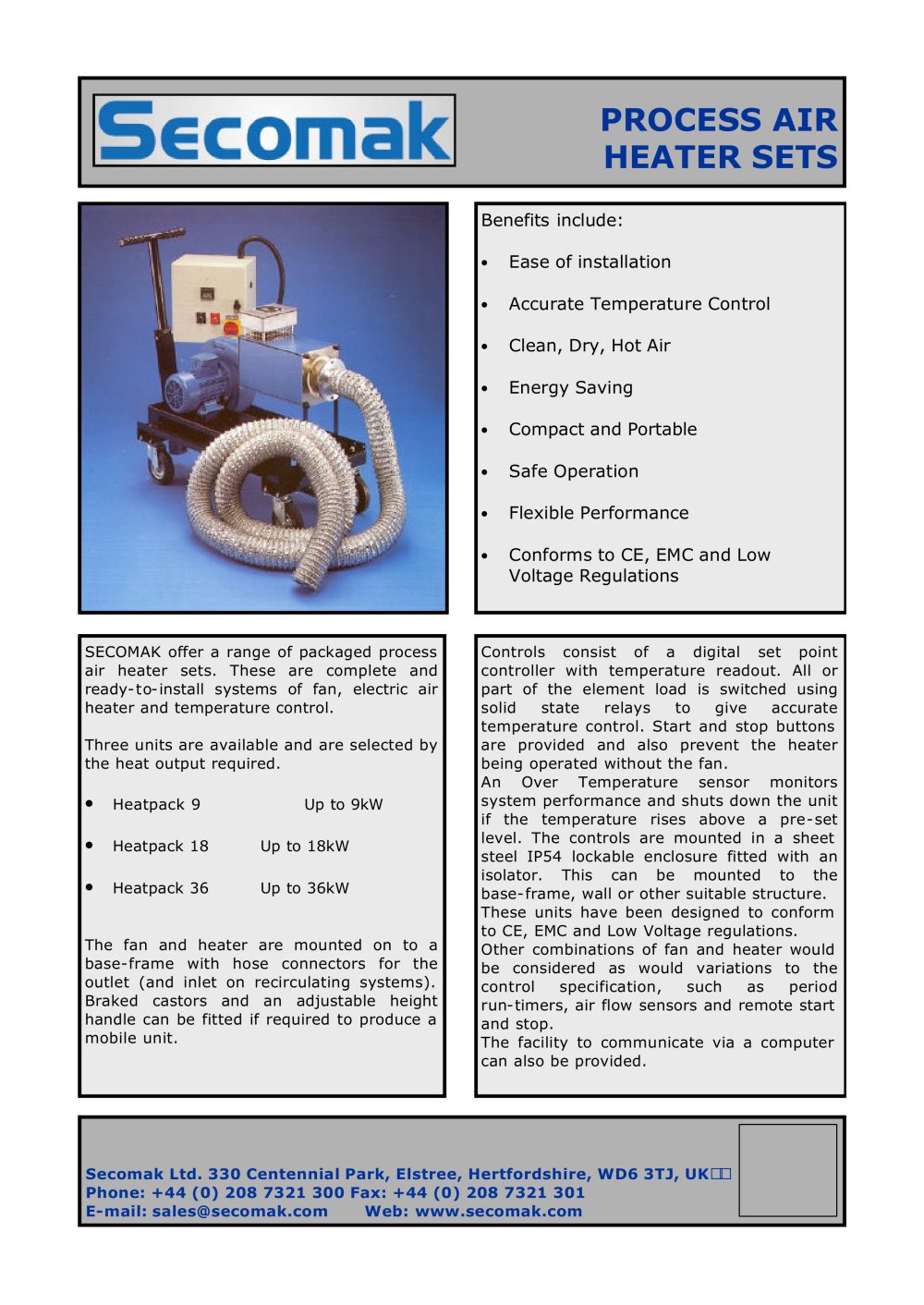

SECOMAK offer a range of packaged process air heater sets. These are complete and ready-to-install systems of fan, electric air heater and temperature control.Three units are available and are selected by the heat output required. Controls consist of a digital set pointcontroller with temperature readout. All or part of the element load is switched using solid state relays to give accurate temperature control. Start and stop buttons are provided and also prevent the heater being operated without the fan. An Over Temperature sensor monitors system performance and shuts down the unit if the temperature rises above a pre-set level. The controls are mounted in a sheet steel IP54 lockable enclosure fitted with an isolator. This can be mounted to the base-frame, wall or other suitable structure. These units have been designed to conform to CE, EMC and Low Voltage regulations. Other combinations of fan and heater would be considered as would variations to the control specification, such as period run-timers, air flow sensors and remote start and stop. The facility to communicate via a computer can also be provided. > Heatpack 36Up to 36kWThe fan and heater are mounted on to abase-frame with hose connectors for the outlet (and inlet on recirculating systems). Braked castors and an adjustable height handle can be fitted if required to produce a mobile unit. Secomak Ltd. 330 Centennial Park, Elstree, Hertfordshire, WD6 3TJ, UK Phone: +44 (0) 208 7321 300 Fax: +44 (0) 208 7321 301 E-mail: [email protected]: www.secomak.com >

PROCESS AIR HEATER SET, HEATPACK 9 >
