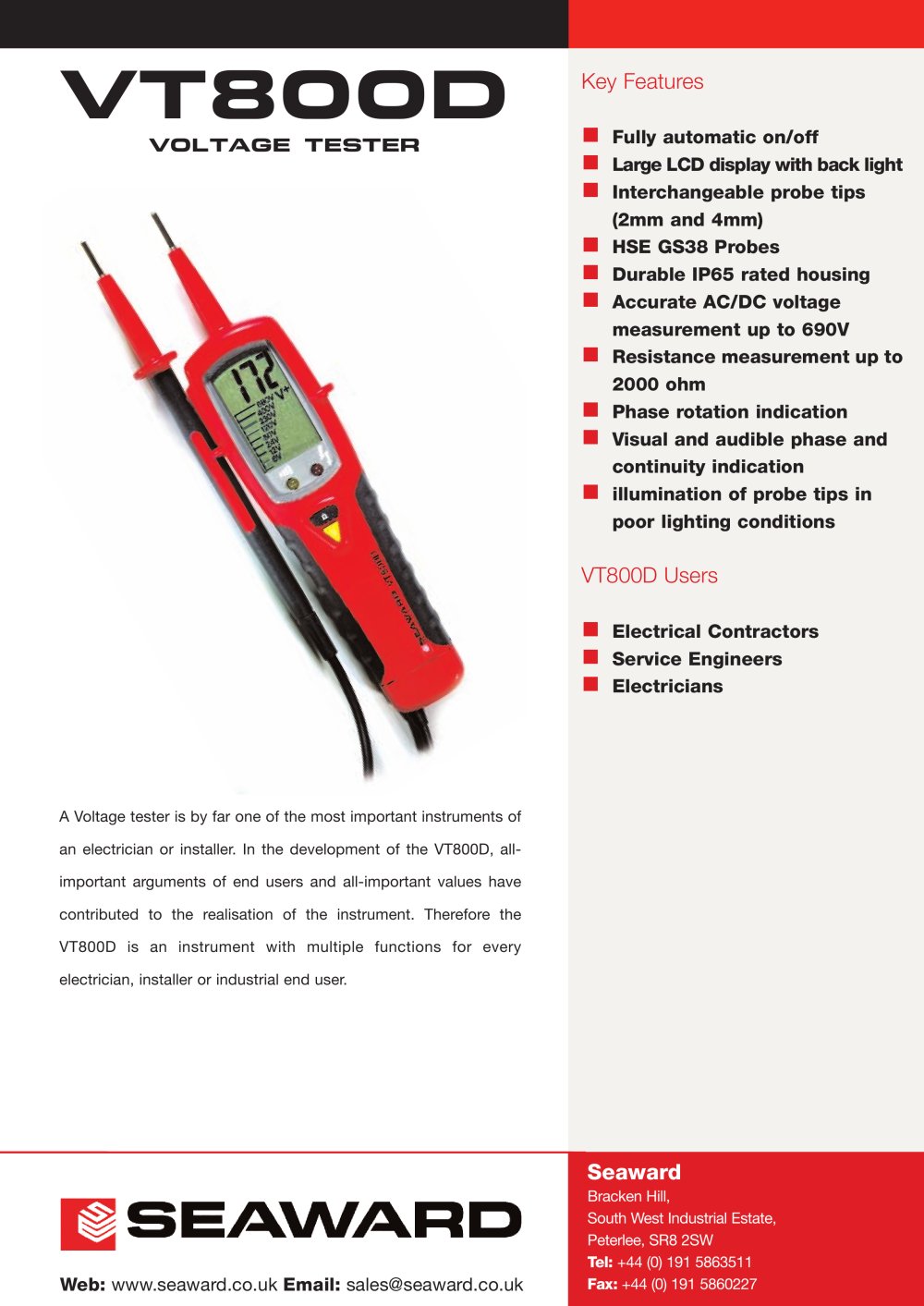

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 vt800d A Voltage tester is by far one of the most important instruments of an electrician or installer. In the development of the VT800D, allimportant arguments of end users and all-important values have contributed to the realisation of the instrument. Therefore the VT800D is an instrument with multiple functions for every electrician, installer or industrial end user. Key Features n Fully automatic on/off n Large LCD display with back light n Interchangeable probe tips (2mm and 4mm) n HSE GS38 Probes n Durable IP65 rated housing n Accurate AC/DC voltage measurement up to 690V n Resistance measurement up to 2000 ohm n Phase rotation indication n Visual and audible phase and continuity indication n illumination of probe tips in poor lighting conditions VT800D Users n Electrical Contractors n Service Engineers n Electricians voltage tester

Open the catalog to page 1

VT800D SPECIFICATIONS Voltage range: 10V to 690V AC/DC Digital / 6V to 690V AC/DC Bargraph LCD resolution: 1V Response time: <0.1 s LED Single Pole Phase Test: 100V to 690VAC Phase rotation: 2 pole Continuity: < 200k ohm Resistance: 0 to 2k ohm Frequency range: 45Hz to 65 Hz Power supply: 2x 1,5V LR03 battery IP-Protection: IP 64 Over voltage category: CATIII 1000V / CATIV 600V Standard: IEC 61010-1, IEC 61010-031, IEC 61243-3, IEC 61557-7, HSE GS38 ProbeTips: 2 mm. & 4 mm. Drop proof: 1 metre Test leads: 1.2 metre Dimensions: 240 x 56 x 24 mm. Weight: + 230 gram (incl. batteries) Part...
