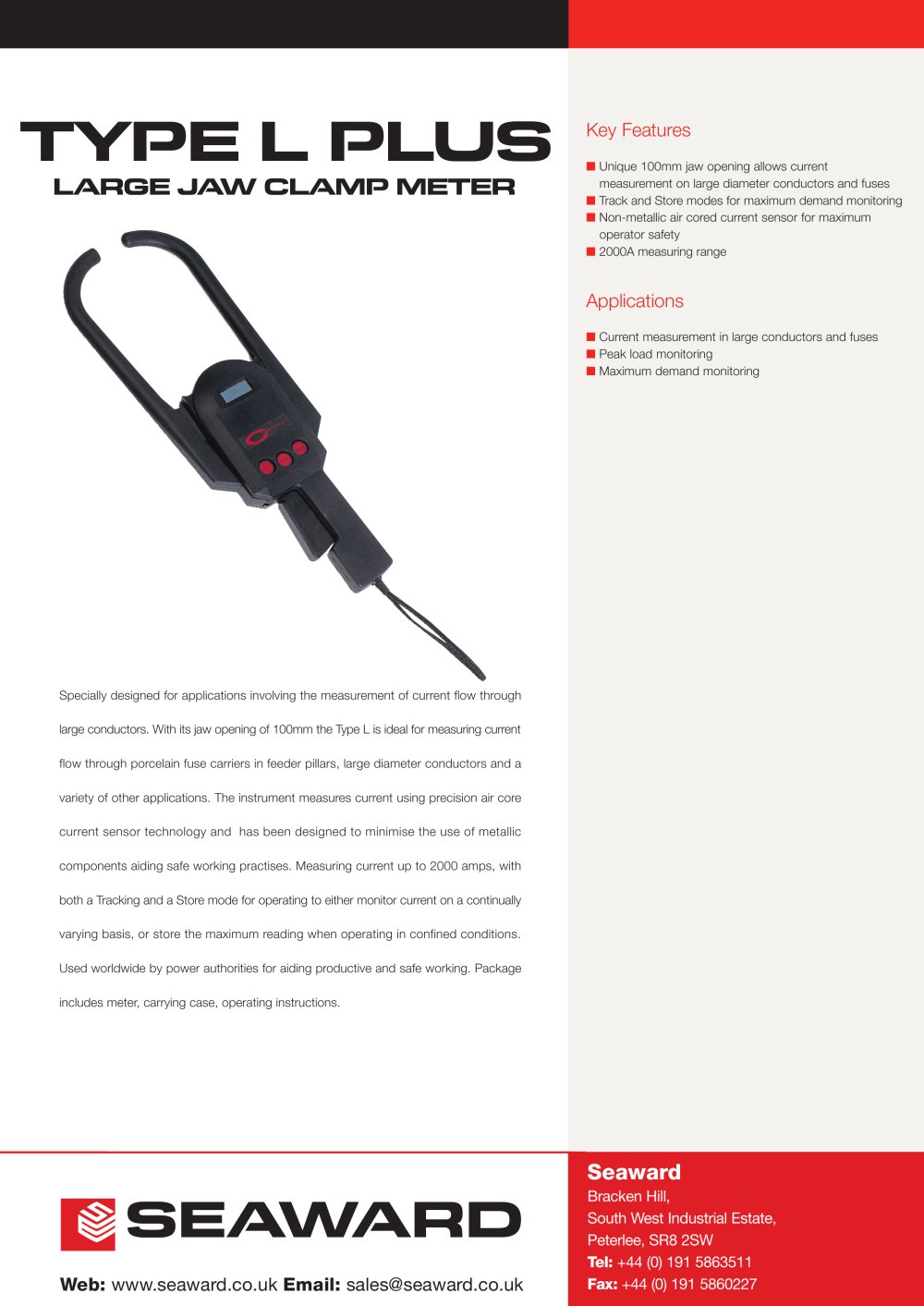

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 TYPE L PLUS Specially designed for applications involving the measurement of current flow through large conductors. With its jaw opening of 100mm the Type L is ideal for measuring current flow through porcelain fuse carriers in feeder pillars, large diameter conductors and a variety of other applications. The instrument measures current using precision air core current sensor technology and has been designed to minimise the use of metallic components aiding safe working practises. Measuring current up to 2000 amps, with both a Tracking and a Store mode for operating to either monitor current on a continually varying basis, or store the maximum reading when operating in confined conditions. Used worldwide by power authorities for aiding productive and safe working. Package includes meter, carrying case, operating instructions. LARGEJAWCLAMPMETER Key Features n Unique 100mm jaw opening allows current measurement on large diameter conductors and fuses n Track and Store modes for maximum demand monitoring n Non-metallic air cored current sensor for maximum operator safety n 2000A measuring range Applications n Current measurement in large conductors and fuses n Peak load monitoring n Maximum demand monitoring

Open the catalog to page 1

Web: www.cropico.com Email: info@cropico.com WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY INSTRUMENTS SEAWARD Seaward test and measurement companies include: TYPE L PLUS SPECIFICATIONS Specifications Features n 3.5” digit LCD display with12.0mm high characters n 0 – 2000 amps measurement range n 50 – 600 volts AC 50 HZ voltage range n 100mm x 140mm internal Jaw dimensions n 0oC - +40oC operating temperature range n - 20oC - +oC storage range n 9 volt PP3 IEC umber...
