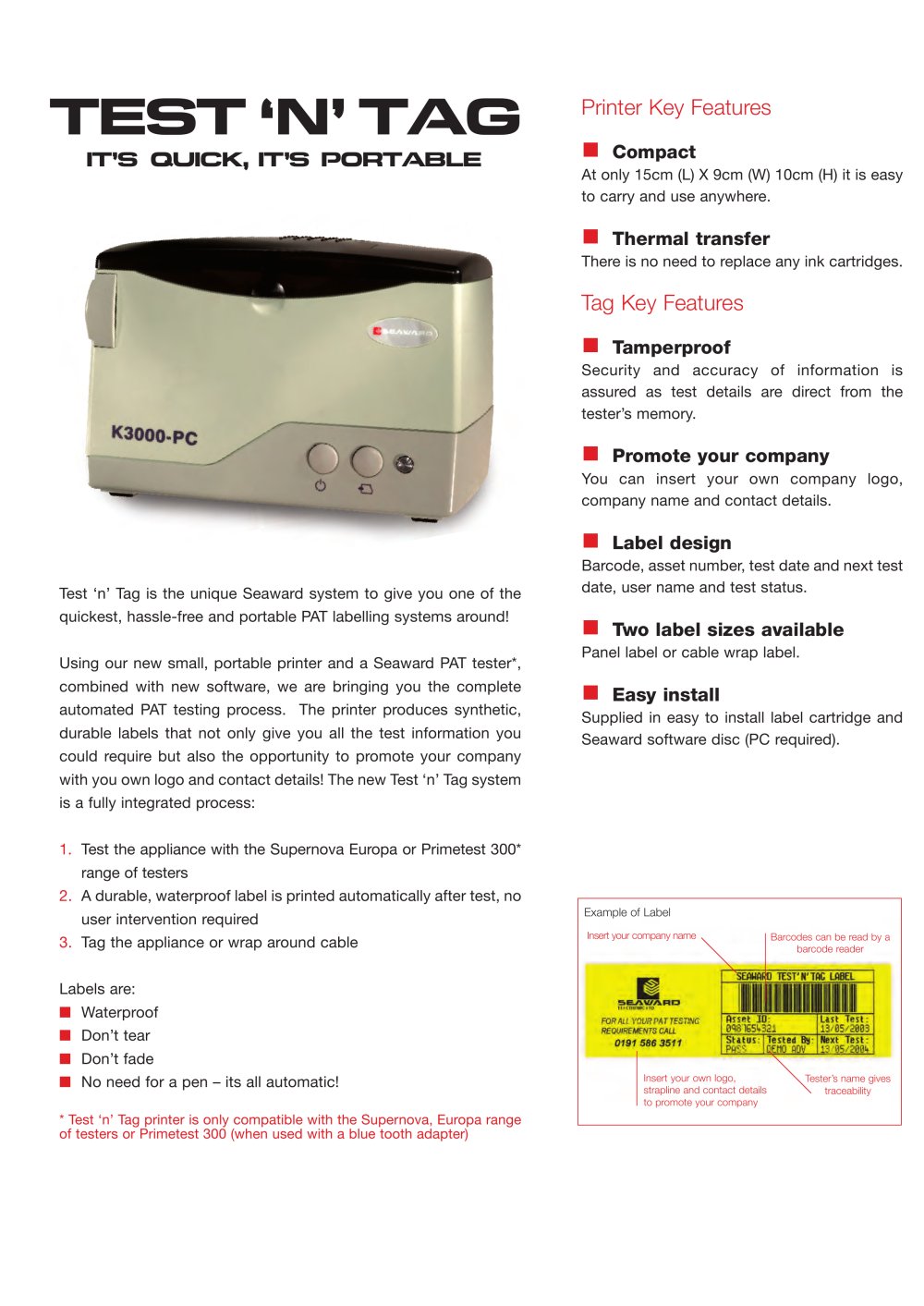

Test‘n’tag Test ‘n’ Tag is the unique Seaward system to give you one of the quickest, hassle-free and portable PAT labelling systems around! Using our new small, portable printer and a Seaward PAT tester*, combined with new software, we are bringing you the complete automated PAT testing process. The printer produces synthetic, durable labels that not only give you all the test information you could require but also the opportunity to promote your company with you own logo and contact details! The new Test ‘n’ Tag system is a fully integrated process: 1. Test the appliance with the Supernova Europa or Primetest 300* range of testers 2. A durable, waterproof label is printed automatically after test, no user intervention required 3. Tag the appliance or wrap around cable Labels are: n Waterproof n Don’t tear n Don’t fade n No need for a pen – its all automatic! * Test ‘n’ Tag printer is only compatible with the Supernova, Europa range of testers or Primetest 300 (when used with a blue tooth adapter) Printer Key Features n Compact At only 15cm (L) X 9cm (W) 10cm (H) it is easy to carry and use anywhere. n Thermal transfer There is no need to replace any ink cartridges. Tag Key Features n Tamperproof Security and accuracy of information is assured as test details are direct from the tester’s memory. n Promote your company You can insert your own company logo, company name and contact details. n Label design Barcode, asset number, test date and next test date, user name and test status. n Two label sizes available Panel label or cable wrap label. n Easy install Supplied in easy to install label cartridge and Seaward software disc (PC required). it’s quick, it’s portable Insert your company name Barcodes can be read by a barcode reader Tester’s name gives traceability Insert your own logo, strapline and contact details to promote your company Example of Label

Open the catalog to page 1

Seaward test and measurement companies include: Technical Specifications PRINTING n Thermal transfer printing n Resolution: 12dots per mm 300dpi n Max. print width: 24.7mm (0.97”) n Max. label width: 25.4mm (1”) n Max. print length: 508mm (20”) n Max. per second: 50mm (2”) DIMENSIONS Printer: 152mm L x 95mm W x 101mm H Electrical specifications and approvals: AC adaptor supplied Output 14VDC, 1.6Amp – UL listed, CSA certified, TUV “GS” approval and CE meets VDE-B and FCC part 15 class B RFI limits ENVIRONMENTAL Operating temp: 45oF to 105oF (7oC to 40oC) Supply cartridge storage...
