Seaward
Supernova Plus PAT Tester

Supernova Plus PAT Tester

Product catalog summary

Overview: The Supernova Plus is a comprehensive electrical safety tester designed for a wide range of applications, including construction, hire companies, manufacturers, and facilities management. It offers extensive testing capabilities, including flash testing and dual voltage testing, and features a large memory capacity for storing test records.

Key Features:

Comprehensive Testing: Capable of performing a full set of tests on any appliance with dual voltage and flash test capabilities.
User-Friendly Interface: Equipped with a large LCD display that provides step-by-step instructions for ease of use.
Connectivity: Includes ports for PC, barcode reader, braincell scanner, and printer connections, facilitating easy data transfer and management.
Fast Data Download: Offers rapid downloading of information, enhancing efficiency in asset management.

Advanced PATSolutions Package: This package includes the Supernova Plus tester, PATGuard software, and additional accessories to support efficient PAT testing operations. Optional extras such as scanners, modem kits, and training courses are available.

Specifications:

PAT Tests: Includes Earth Continuity, Insulation Resistance, Flash, Protective Conductor Current, Touch Current, Substitute Leakage, Load Test, and IEC Lead Polarity tests.
Operating Voltage: Supports a voltage range of 103V - 126V and 207V - 253V, with a frequency range of 45Hz - 65Hz.
Physical Attributes: Weighs 9.5Kg with dimensions of 400cm (l) x 32cm (w) x 16cm (d).
Interfaces: Features a QWERTY keyboard, graphic LCD display, RS232 port, and parallel port connections.

Conclusion: The Supernova Plus is a versatile and robust tester suitable for various industries, offering advanced features and connectivity options to streamline electrical safety testing processes.

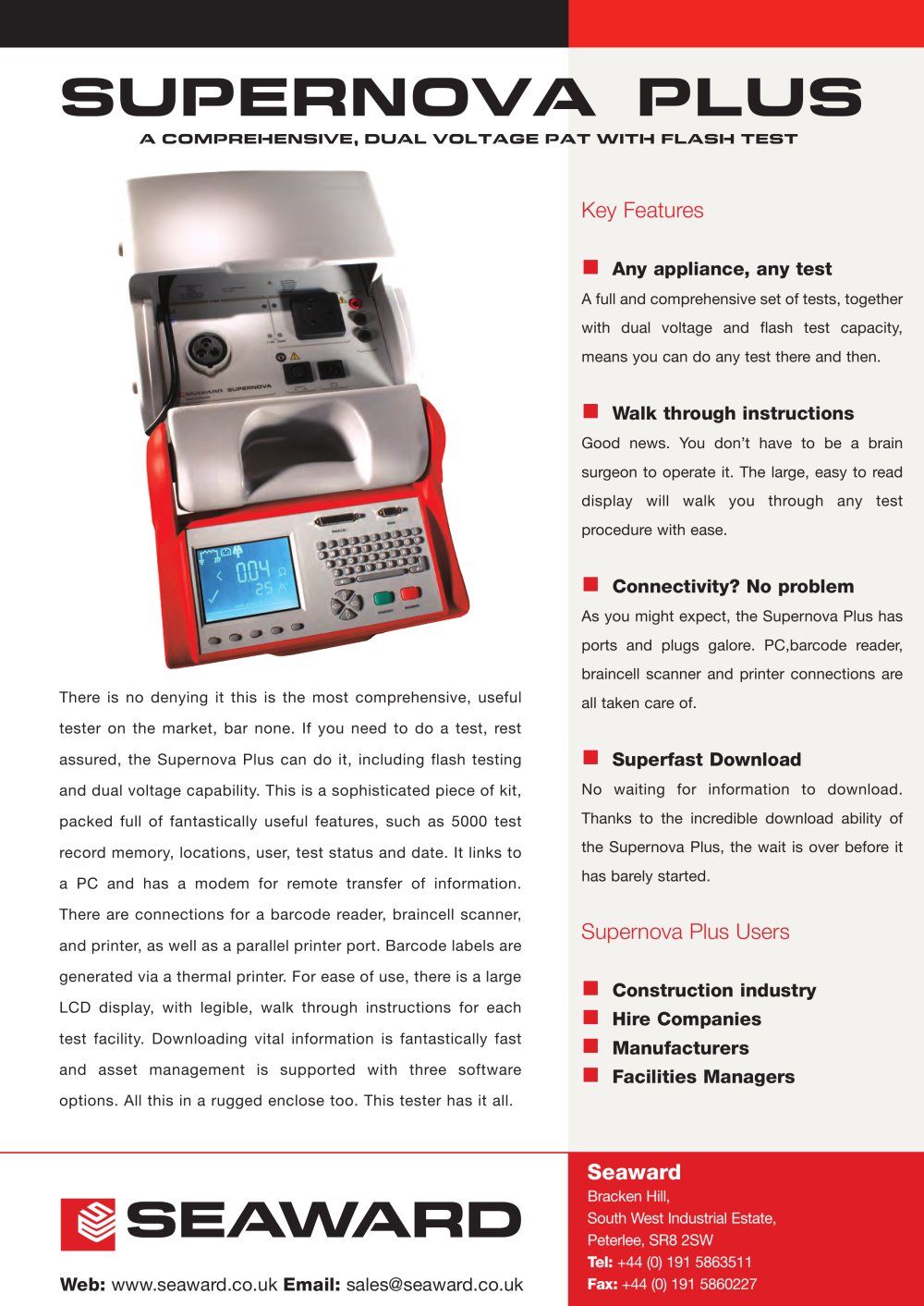

Catalog excerpts

PATTESTS PATSolutions is a total solutions philosophy thatencompasses all aspects of electrical safety testing, from the testers themselves to information management software, through to label printers and much more.Each tester and its accessories can be purchasedseparately or as an optional PATSolutions package which includes everything needed to run an efficient and effective PAT testing business. Earth Continuity Earth Screen Continuity Insulation Resistance Test Currents25A, 10A, 4A, AC Display Range0.00ohms - 19.99ohms Pass ValueUser Defined Measurement Technique4 Wire Measurement, Floating...

Open the catalog to page 2
