PrimeTest 50 PAT Tester Datasheet

 PrimeTest 50 PAT Tester Datasheet

PrimeTest 50 PAT Tester Datasheet

Product catalog summary
Overview: The document provides detailed information about the Primetest 50, a portable appliance checker designed for ease of use and portability. It is ideal for maintenance staff, schools, colleges, care homes, and the leisure industry.
Key Features:
  • Ease of Use: The device operates with simple push-button functionality, allowing users to connect the appliance, select the test mode, and receive a pass or fail result.
  • Portability: The Primetest 50 is compact, measuring 26 x 10 cm, and is battery-powered, enhancing its portability and ease of use without the need for a nearby power supply.
  • PATGuard Compatibility: It can be used with PATGuard Workabout software for mobile data input, facilitating easy testing and information management.
Specifications:
  • PAT Tests: Includes Earth Continuity with a test current of +/- 200mA DC and a pass/fail threshold of 0.2 ohms, and Insulation Resistance with test voltages of 500V DC and a pass/fail threshold of 2 Mohms.
  • IEC Lead Test: Performs tests on Earth Continuity, Insulation Resistance, and checks Live, Neutral Continuity, and Polarity.
  • Circuit Tests: Power Socket Test with an input voltage range of 230V +10%, -15% AC, and indicators for Phase to Earth Voltage, Phase to Neutral Voltage, and Neutral to Earth.
  • Physical Attributes: Weighs 800g with dimensions of 26cm (l) x 10cm (w) x 5.5cm (d), powered by 6 x AA batteries.
PATSolutions Package: The package includes the Primetest 50 Tester, Calibration Certificate, PATGuard Lite, PATGuard Support Contractor, PATGuard Workabout, and a Guide to Portable Appliance Testing. Optional extras include hardware like pass labels, log cards, and software training courses.
See more

Catalog excerpts

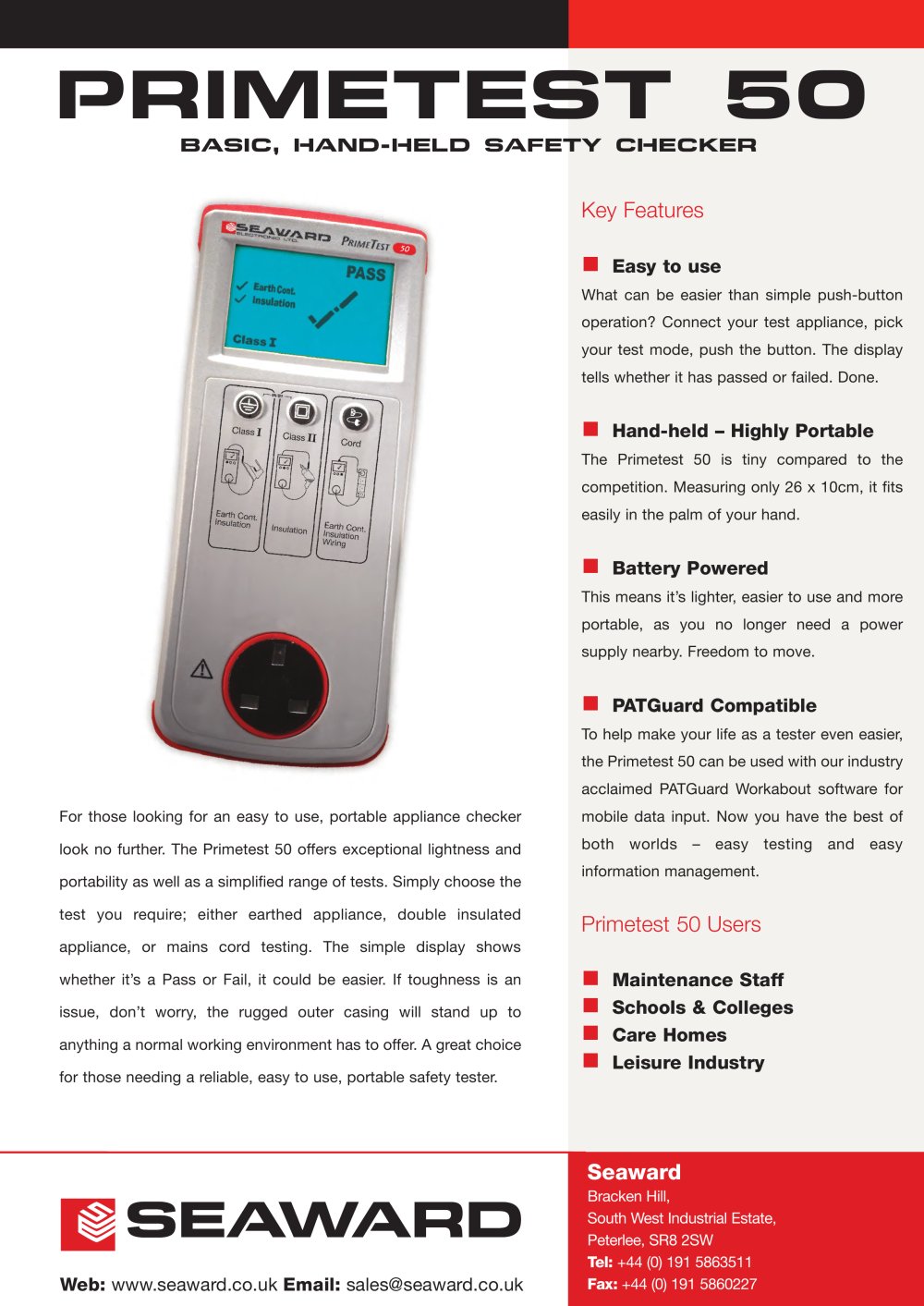

 PrimeTest 50 PAT Tester Datasheet-1

What can be easier than simple push-buttonoperation? Connect your test appliance, pick your test mode, push the button. The display tells whether it has passed or failed. Done. > The Primetest 50 is tiny compared to the competition. Measuring only 26 x 10cm, it fits easily in the palm of your hand. > This means it֒s lighter, easier to use and more portable, as you no longer need a power supply nearby. Freedom to move. > To help make your life as a tester even easier, the Primetest 50 can be used with our industry acclaimed PATGuard Workabout software for mobile data input. Now you have the best of both worlds easy testing and easy information management. For those looking for an easy to use, portable appliance checkerlook no further. The Primetest 50 offers exceptional lightness and portability as well as a simplified range of tests. Simply choose the test you require; either earthed appliance, double insulated appliance, or mains cord testing. The simple display shows whether it֒s a Pass or Fail, it could be easier. If toughness is an issue, dont worry, the rugged outer casing will stand up to anything a normal working environment has to offer. A great choice for those needing a reliable, easy to use, portable safety tester. > Bracken Hill,South West Industrial Estate,Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 >
