PowerPlus 1557 Datasheet

PowerPlus 1557 Datasheet

Product catalog summary

Overview: The PowerPlus 1557 is a fixed installation tester that integrates test and inspection capabilities, eliminating the need for additional recording devices. It allows direct data entry and synchronization with PC software for efficient data management.

Key Features:

Combined Test and Inspection: First of its kind to combine test and inspection in one unit, reducing the need for paper or additional devices.
Efficiency: Data entry is streamlined, avoiding duplication.
Bluetooth Connectivity: Enables data transfer to PC with various certificate templates available.
Future Proof: New templates can be added as needed.
Comprehensive Testing: Includes tests for earth continuity, insulation, loop impedance, RCD trip current, and more.

Applications: Designed for the inspection and testing of fixed installations, providing a comprehensive solution for field data collection and management.

Product Includes:

2-year warranty
Rechargeable batteries and charger
Test leads and alligator clips

Specifications:

Earth Continuity: Test current >200mA, range 0.00-200 ohms.
Insulation Resistance: Test voltages 100V to 1000V, range 0.00-200 Mohms.
Loop/Line Impedance: Supply voltage 195-253V, range 0.01-2000 ohms.
RCD Testing: Various trip time ranges and auto test sequences.
Voltage/Frequency Measurement: Range 0-440V, frequency 45-65Hz.
Phase Rotation: Displays correct phase sequence.

Compliance and Additional Information: Complies with IEC 61010-1 300V CAT III, EN 61557. Dimensions are 260 x 100 x 55 mm, and it weighs 950g. Powered by 6 AA NiMH rechargeable batteries.

Catalog excerpts

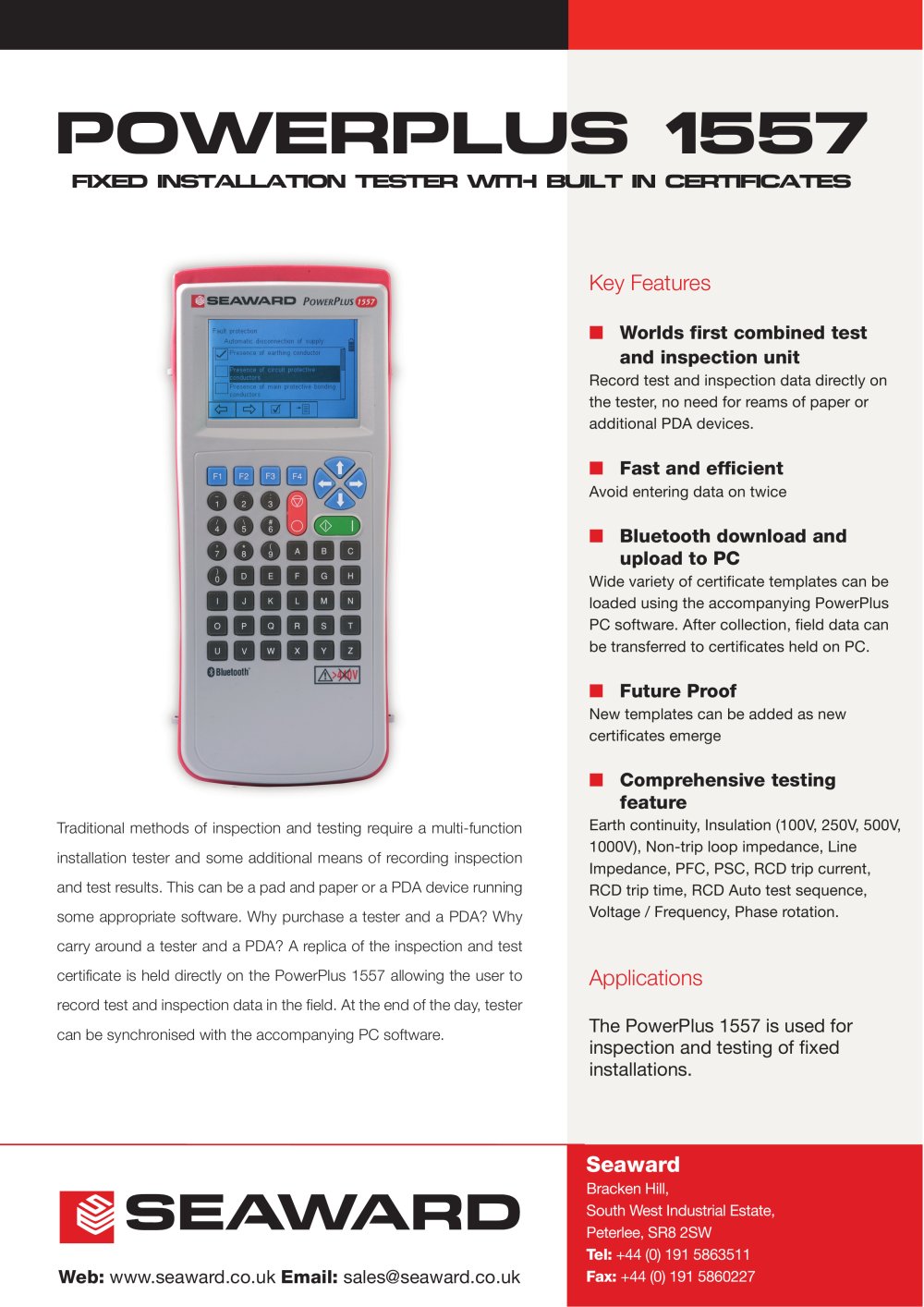

PowerPlus 1557 Fixed Installation Tester with built in certificates Key Features ¡ Worlds first combined test and inspection unit Record test and inspection data directly on the tester, no need for reams of paper or additional PDA devices. ¡ Fast and efficient Avoid entering data on twice ¡ Bluetooth download and upload to PC Wide variety of certificate templates can be loaded using the accompanying PowerPlus PC software. After collection, field data can be transferred to certificates held on PC. ¡ Future Proof New templates can be added as new certificates emerge ¡ Comprehensive testing feature Earth continuity, Insulation (100V, 250V, 500V, 1000V), Non-trip loop impedance, Line Impedance, PFC, PSC, RCD trip current, RCD trip time, RCD Auto test sequence, Voltage / Frequency, Phase rotation. Applications The PowerPlus 1557 is used for inspection and testing of fixed installations. Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: [email protected] Fax: +44 (0) 191 5860227 Traditional methods of inspection and testing require a multi-function installation tester and some additional means of recording inspection and test results. This can be a pad and paper or a PDA device running some appropriate software. Why purchase a tester and a PDA? Why carry around a tester and a PDA? A replica of the inspection and test certificate is held directly on the PowerPlus 1557 allowing the user to record test and inspection data in the field. At the end of the day, tester can be synchronised with the accompanying PC software.

Open the catalog to page 1

Product Includes ¡ 2 year warranty ¡ 6 x NiMH Rechargeable batteries ¡ Charger ¡ Test lead, 1.5M 13A UK plug to Red, Black, Green 4mm shrouded safety plugs ¡ Alligator Clips: Red, black, green ¡ Test lead, set 1.5M Red, Black, Green 4mm shrouded safety plugs to Red, Black, Green 4mm shrouded safety test probes ¡ Red, cordless, 4mm shrouded safety test probe Optional Extras Software: (375A910) (355A910) (355A920) Other products in this range ¡ PowerTest 1557 (328A910) ¡ ERT 1557 (362A910) ¡ PowerCheck 1557 (369A910) SPECIFICATION Earth Continuity Test Current >200mA Display Range 0.00ohms - 200ohms...

Open the catalog to page 2
