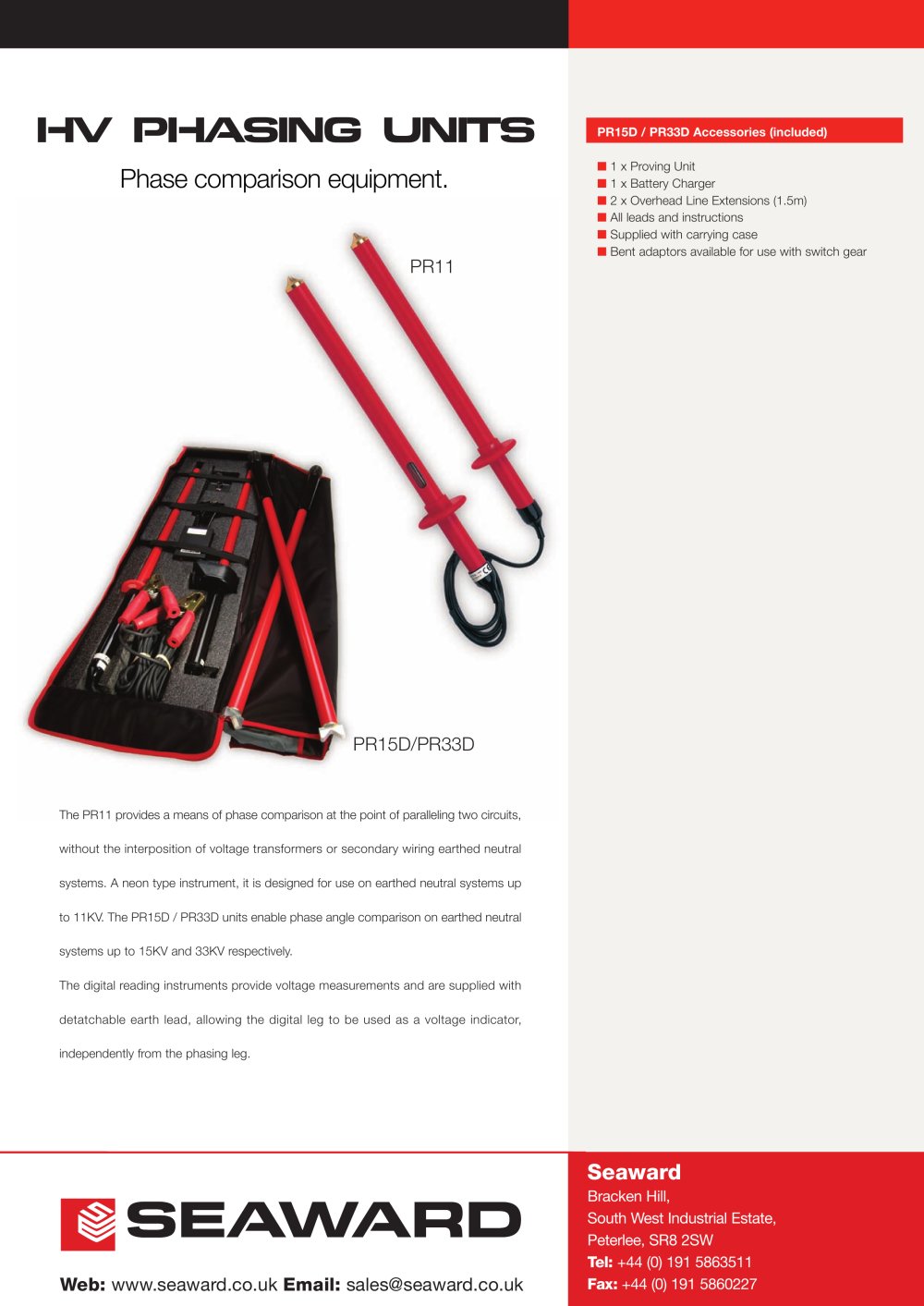

High Voltage Phasing Units - Datasheet - 1

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 HV Phasing Units The PR11 provides a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring earthed neutral systems. A neon type instrument, it is designed for use on earthed neutral systems up to 11KV. The PR15D / PR33D units enable phase angle comparison on earthed neutral systems up to 15KV and 33KV respectively. The digital reading instruments provide voltage measurements and are supplied with detatchable earth lead, allowing the digital leg to be used as a voltage indicator, independently from the phasing leg. Phase comparison equipment. PR15D / PR33D Accessories (included) n 1 x Proving Unit n 1 x Battery Charger n 2 x Overhead Line Extensions (1.5m) n All leads and instructions n Supplied with carrying case n Bent adaptors available for use with switch gear PR11 PR15D/PR33D

Open the catalog to page 1

High Voltage Phasing Units - Datasheet - 2

Cropico Hampton Road, Croydon, Surrey, United Kingdom, CR9 2RU Tel: +44 (0) 20 86844025 Web: www.cropico.com Email: info@cropico.com Fax: +44 (0) 20 86844094 WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY INSTRUMENTS SEAWARD Seaward test and measurement companies include: HV PHASING UNITS SPECIFICATIONS PR15D / PR33D Specifications Features n Provides a means of phase angle comparison and indication of phase angle voltage at the point of intended paralleling of two...
