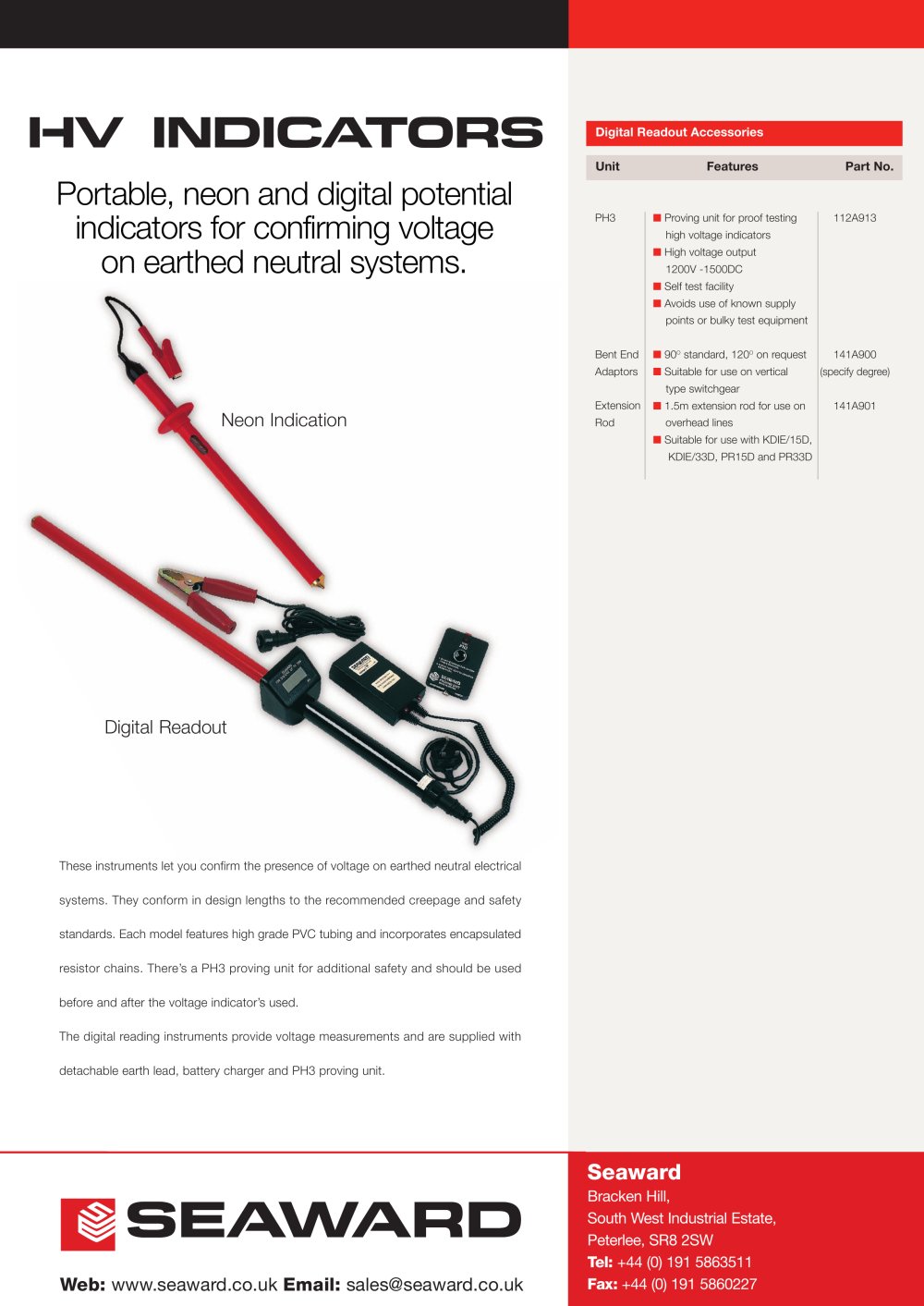

Seaward Bracken Hill, South West Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.seaward.co.uk Email: sales@seaward.co.uk Fax: +44 (0) 191 5860227 HV INDICATORS These instruments let you confirm the presence of voltage on earthed neutral electrical systems. They conform in design lengths to the recommended creepage and safety standards. Each model features high grade PVC tubing and incorporates encapsulated resistor chains. There’s a PH3 proving unit for additional safety and should be used before and after the voltage indicator’s used. The digital reading instruments provide voltage measurements and are supplied with detachable earth lead, battery charger and PH3 proving unit. Portable, neon and digital potential indicators for confirming voltage on earthed neutral systems. Neon Indication Digital Readout Digital Readout Accessories Unit Features Part No. n Proving unit for proof testing high voltage indicators n High voltage output 1200V -1500DC n Self test facility n Avoids use of known supply points or bulky test equipment n 90O standard, 120O on request n Suitable for use on vertical type switchgear n 1.5m extension rod for use on overhead lines n Suitable for use with KDIE/15D, KDIE/33D, PR15D and PR33D PH3 Bent End Adaptors Extension Rod 112A913 141A900 (specify degree) 141A901

Open the catalog to page 1

Cropico Hampton Road, Croydon, Surrey, United Kingdom, CR9 2RU Tel: +44 (0) 20 86844025 Web: www.cropico.com Email: info@cropico.com Fax: +44 (0) 20 86844094 WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY INSTRUMENTS SEAWARD Seaward test and measurement companies include: Maximum System voltage Maximum Voltage to earth Threshold voltage Measuring Range Resolution Sensitivity Circuit current (IEC 61234-2) Dielectric leakage current (IEC 61234-2) Length (mm) Diameter (mm)...
