Seaward
Europa Plus PAT Tester

Europa Plus PAT Tester

Product catalog summary

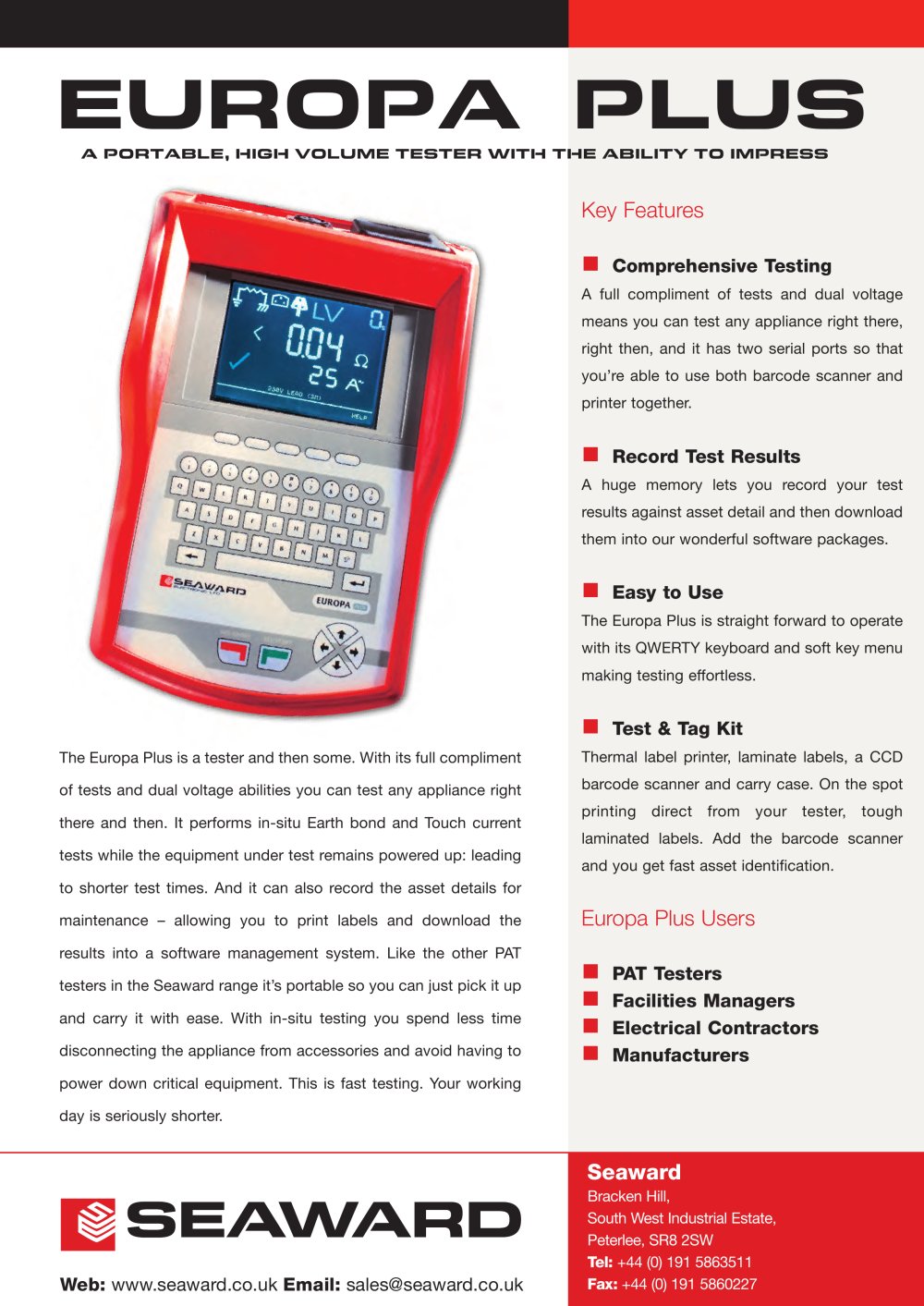

Overview: The document provides detailed information about the Europa Plus, a portable appliance tester (PAT) from Seaward. It highlights the device's capabilities, features, and specifications, as well as the comprehensive solutions offered by Seaward for electrical safety testing.

Key Features:

Comprehensive Testing: The Europa Plus offers a full range of tests with dual voltage capabilities, allowing for the testing of any appliance on-site. It includes two serial ports for simultaneous use of a barcode scanner and printer.
Record Test Results: The device has a large memory capacity to store test results, which can be downloaded into software management systems.
Ease of Use: Equipped with a QWERTY keyboard and soft key menu, the tester is user-friendly and efficient.
Test & Tag Kit: Includes a thermal label printer, laminate labels, a CCD barcode scanner, and a carry case for on-the-spot printing and asset identification.

Target Users: The Europa Plus is designed for PAT testers, facilities managers, electrical contractors, and manufacturers.

Advanced PATSolutions Package: Seaward offers a comprehensive package that includes the Europa Plus tester, calibration certificate, PATGuard Elite software, and other accessories necessary for efficient PAT testing.

Specifications:

PAT Tests: Includes Earth Continuity, Insulation Resistance, Protective Conductor Current, Touch Current, Substitute Leakage, Load Test, and IEC Lead Polarity tests.
Operating Voltage: 207V - 253V, 45Hz - 65Hz.
Weight & Dimensions: 3.5Kg, 31cm (l) x 21cm (w) x 8cm (d).
Interfaces: Features a QWERTY keyboard, graphic LCD display, and two serial port connections.

Software Options: Various PATGuard software options are available, including Elite, Pro, Lite, Time Manager, and Workabout, each catering to different testing and management needs.

Catalog excerpts

PATTESTS PATSolutions is a total solutions philosophy thatencompasses all aspects of electrical safety testing, from the testers themselves to information management software, through to label printers and much more.Each tester and its accessories can be purchasedseparately or as an optional PATSolutions package which includes everything needed to run an efficient and effective PAT testing business. Earth Continuity Test Currents 25A AC, 10A AC, 4A AC+-200mA DC Display Range0.01ohms - 19.99ohms Pass ValueUser Defined Measurement Technique4 Wire Measurement, Floating Earth Earth Screen Continuity...

Open the catalog to page 2
