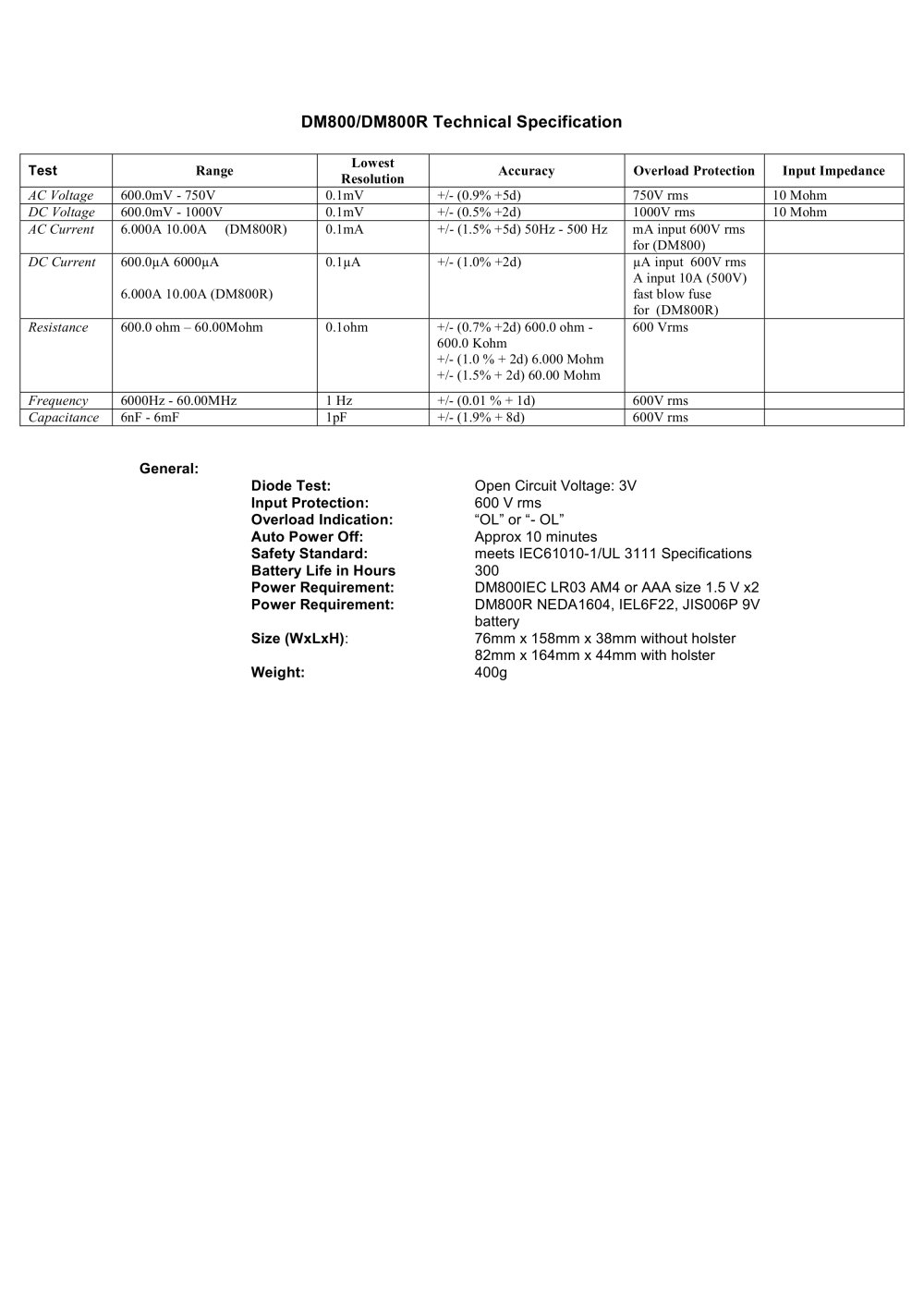

Technical Specifications Overview:

Voltage Measurement:
- AC Voltage: Range from 600.0mV to 750V with a resolution of 0.1mV and accuracy of +/- (0.9% +5d). Overload protection up to 750V rms with an input impedance of 10 Mohm.
- DC Voltage: Range from 600.0mV to 1000V with a resolution of 0.1mV and accuracy of +/- (0.5% +2d). Overload protection up to 1000V rms with an input impedance of 10 Mohm.

Current Measurement:
- AC Current: For DM800, range up to 6.000A; for DM800R, up to 10.00A with a resolution of 0.1mA and accuracy of +/- (1.5% +5d). Frequency range from 50Hz to 500Hz with mA input overload protection of 600V rms.
- DC Current: Range from 600.0µA to 10.00A (DM800R) with a resolution of 0.1µA and accuracy of +/- (1.0% +2d). Overload protection includes a fast blow fuse for A input at 10A (500V).

Resistance Measurement:
- Range from 600.0 ohm to 60.00Mohm with varying accuracy: +/- (0.7% +2d) for 600.0 ohm to 600.0 Kohm, +/- (1.0% + 2d) for 6.000 Mohm, and +/- (1.5% + 2d) for 60.00 Mohm. Overload protection up to 600 Vrms.

Frequency and Capacitance:
- Frequency: Range from 6000Hz to 60.00MHz with a resolution of 1 Hz and accuracy of +/- (0.01 % + 1d).
- Capacitance: Range from 6nF to 6mF with a resolution of 1pF and accuracy of +/- (1.9% + 8d).

General Features:
- Diode Test: Open Circuit Voltage of 3V.
- Input Protection: 600 V rms.
- Overload Indication: Displays “OL” or “- OL”.
- Auto Power Off: Activates after approximately 10 minutes.
- Safety Standard: Complies with IEC61010-1/UL 3111 specifications.
- Battery Life: Approximately 300 hours.
- Power Requirements: DM800 uses two AAA batteries; DM800R uses a 9V battery.
- Dimensions: Without holster: 76mm x 158mm x 38mm; with holster: 82mm x 164mm x 44mm.
- Weight: 400g.
