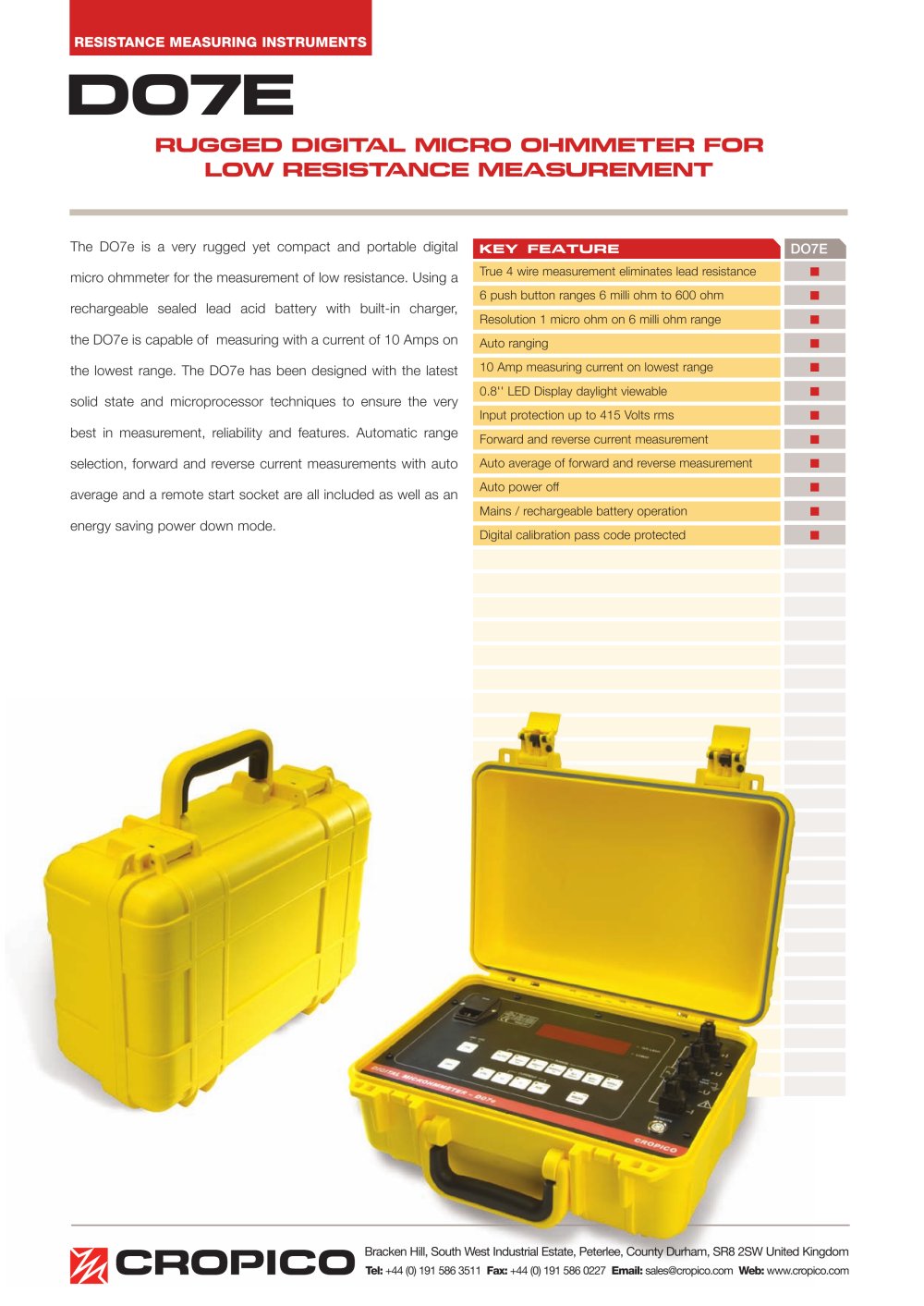

key feature DO7E True 4 wire measurement eliminates lead resistance n 6 push button ranges 6 milli ohm to 600 ohm n Resolution 1 micro ohm on 6 milli ohm range n Auto ranging n 10 Amp measuring current on lowest range n 0.8'' LED Display daylight viewable n Input protection up to 415 Volts rms n Forward and reverse current measurement n Auto average of forward and reverse measurement n Auto power off n Mains / rechargeable battery operation n Digital calibration pass code protected n D07E RUGGED DIGITAL MICRO OHMMETER FOR LOW RESISTANCE MEASUREMENT RESISTANCE MEASURING INSTRUMENTS The DO7e is a very rugged yet compact and portable digital micro ohmmeter for the measurement of low resistance. Using a rechargeable sealed lead acid battery with built-in charger, the DO7e is capable of measuring with a current of 10 Amps on the lowest range. The DO7e has been designed with the latest solid state and microprocessor techniques to ensure the very best in measurement, reliability and features. Automatic range selection, forward and reverse current measurements with auto average and a remote start socket are all included as well as an energy saving power down mode. Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com

Open the catalog to page 1

D07E SPECIFICATIONS Range Resolution Typical Current Accuracy at 20°C ±5°C, 1 Year Temp Coefficient/°C 600½ 60½ 6½ 600m½ 60m½ 6m½ 100m½ 10m½ 1m½ 100ì½ 10ì½ 1ì½ 1mA 10mA 100mA 1A 1A 10A ±(0.25% Rdg +0.05% FS) ±(0.25% Rdg +0.05% FS) ±(0.25% Rdg +0.05% FS) ±(0.25% Rdg +0.05% FS) ±(0.25% Rdg +0.05% FS) ±(0.25% Rdg +0.05% FS) 40ppm Rdg + 30ppm FS 40ppm Rdg + 30ppm FS 40ppm Rdg + 30ppm FS 40ppm Rdg + 30ppm FS 40ppm Rdg + 30ppm FS 40ppm Rdg + 250ppm FS Measurement 4 Terminal Kelvin / Thomson principle eliminates errors due to lead resistance. Open circuit measurement voltage = 2V dc Display 0.8”...
