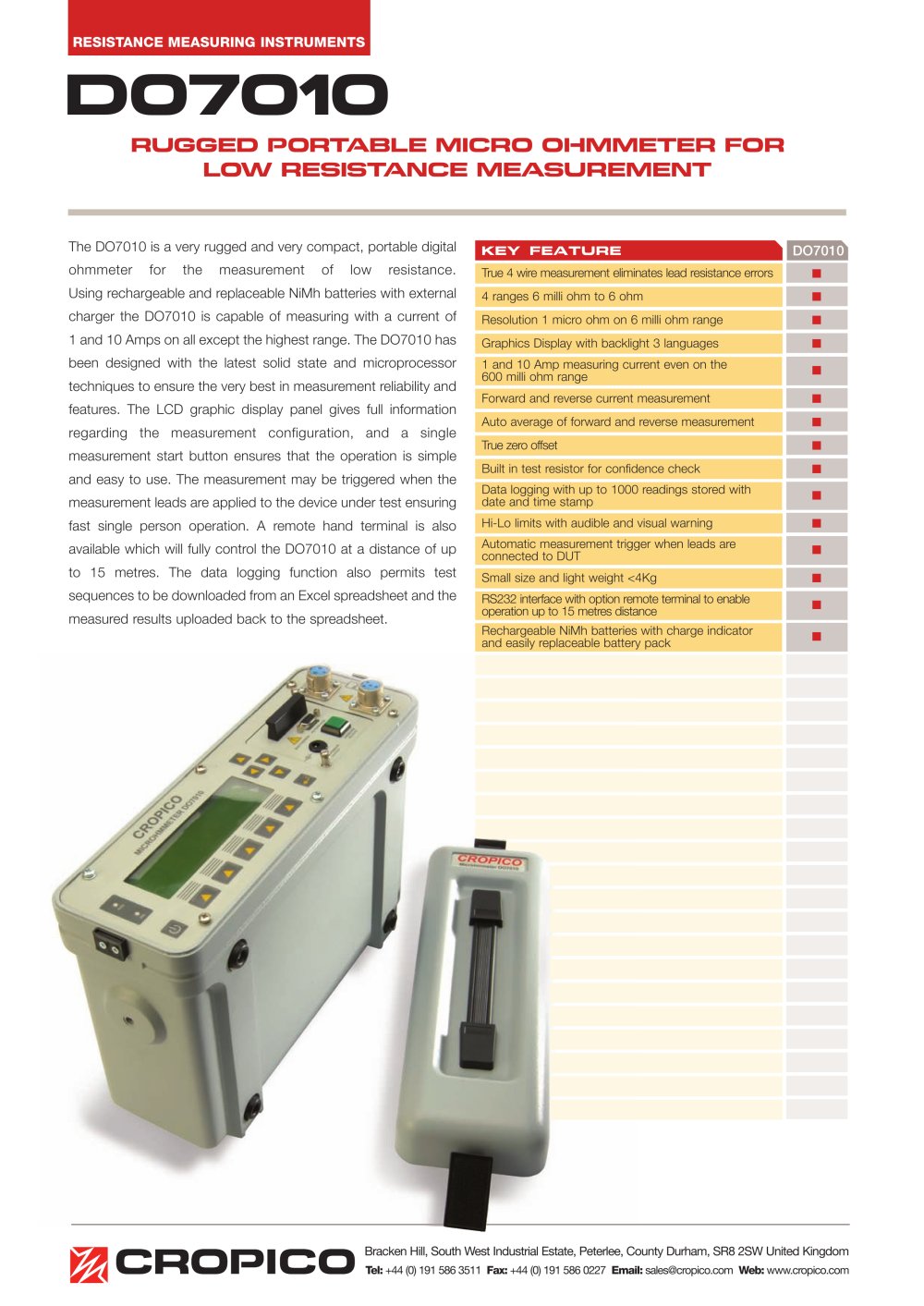

key feature DO7010 True 4 wire measurement eliminates lead resistance errors n 4 ranges 6 milli ohm to 6 ohm n Resolution 1 micro ohm on 6 milli ohm range n Graphics Display with backlight 3 languages n Forward and reverse current measurement n Auto average of forward and reverse measurement n True zero offset n Built in test resistor for confidence check n Hi-Lo limits with audible and visual warning n Small size and light weight <4Kg n 1 and 10 Amp measuring current even on the 600 milli ohm range n Data logging with up to 1000 readings stored with date and time stamp n Automatic measurement trigger when leads are connected to DUT n RS232 interface with option remote terminal to enable operation up to 15 metres distance n Rechargeable NiMh batteries with charge indicator and easily replaceable battery pack n D07010 RUGGED PORTABLE MICRO OHMMETER FOR LOW RESISTANCE MEASUREMENT RESISTANCE MEASURING INSTRUMENTS The DO7010 is a very rugged and very compact, portable digital ohmmeter for the measurement of low resistance. Using rechargeable and replaceable NiMh batteries with external charger the DO7010 is capable of measuring with a current of 1 and 10 Amps on all except the highest range. The DO7010 has been designed with the latest solid state and microprocessor techniques to ensure the very best in measurement reliability and features. The LCD graphic display panel gives full information regarding the measurement configuration, and a single measurement start button ensures that the operation is simple and easy to use. The measurement may be triggered when the measurement leads are applied to the device under test ensuring fast single person operation. A remote hand terminal is also available which will fully control the DO7010 at a distance of up to 15 metres. The data logging function also permits test sequences to be downloaded from an Excel spreadsheet and the measured results uploaded back to the spreadsheet. Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com

Open the catalog to page 1

D07010 SPECIFICATIONS Measurement 4 Terminal Kelvin/Thomson principle eliminates error due to lead resistance. Open circuit measurement voltage =5Vdc Display 240 x 64 dot graphics LCD with backlight Ranges 4 ranges with auto range mode. Two selectable measuring currents for each range Terminals The measurement leads are connected via Jaeger connectors and a full range of lead configurations are available Working Temperature 0°C to +50°C rel. humidity up to 80% non condensing Storage Temperature -20 to +50°C Safety Conforms to EN 61010-1, Main instrument Class 111 (SELV), Battery pack Class...
