Cropico DO7 Datasheet

Cropico DO7 Datasheet
2Pages

Catalog excerpts

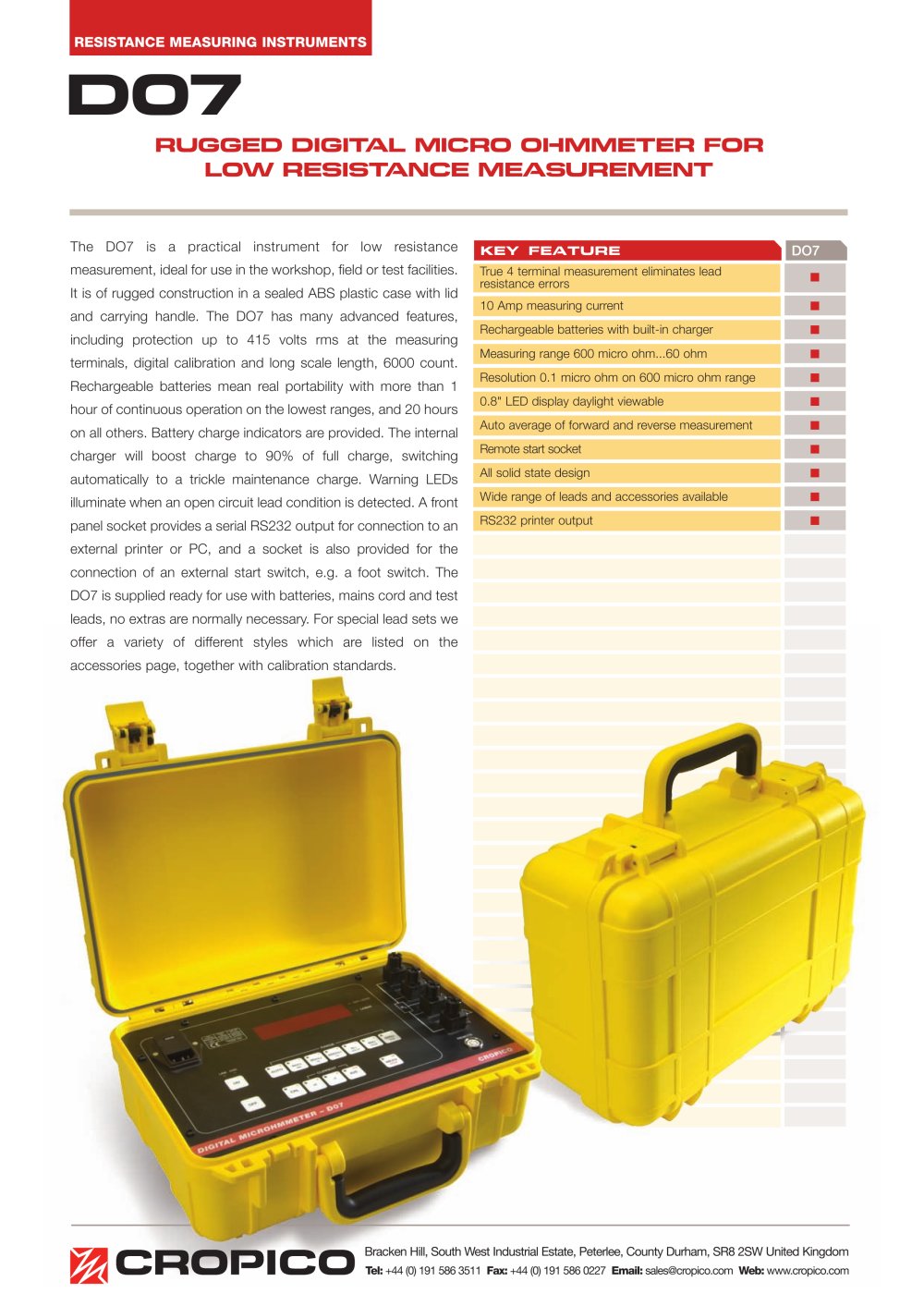

key feature DO7 10 Amp measuring current n Rechargeable batteries with built-in charger n Measuring range 600 micro ohm...60 ohm n Resolution 0.1 micro ohm on 600 micro ohm range n 0.8" LED display daylight viewable n Auto average of forward and reverse measurement n Remote start socket n All solid state design n Wide range of leads and accessories available n True 4 terminal measurement eliminates lead resistance errors n RS232 printer output n D07 RUGGED DIGITAL MICRO OHMMETER FOR LOW RESISTANCE MEASUREMENT RESISTANCE MEASURING INSTRUMENTS The DO7 is a practical instrument for low resistance measurement, ideal for use in the workshop, field or test facilities. It is of rugged construction in a sealed ABS plastic case with lid and carrying handle. The DO7 has many advanced features, including protection up to 415 volts rms at the measuring terminals, digital calibration and long scale length, 6000 count. Rechargeable batteries mean real portability with more than 1 hour of continuous operation on the lowest ranges, and 20 hours on all others. Battery charge indicators are provided. The internal charger will boost charge to 90% of full charge, switching automatically to a trickle maintenance charge. Warning LEDs illuminate when an open circuit lead condition is detected. A front panel socket provides a serial RS232 output for connection to an external printer or PC, and a socket is also provided for the connection of an external start switch, e.g. a foot switch. The DO7 is supplied ready for use with batteries, mains cord and test leads, no extras are normally necessary. For special lead sets we offer a variety of different styles which are listed on the accessories page, together with calibration standards. Bracken Hill, South West Industrial Estate, Peterlee, County Durham, SR8 2SW United Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@cropico.com Web: www.cropico.com

Open the catalog to page 1

D07 SPECIFICATIONS Measurement 4 Terminal Kelvin / Thomson principle eliminates errors due to lead resistance. Open circuit measurement voltage = 2V dc Display 0.8” LED 6000 count with automatic decimal point and polarity indication Ranges 6 push button selected with LED indication Terminals 6mm binding posts accept spade tags and 4 mm banana plugs Working Temperature 0°C to 40°C rel. humidity 80% max. non-condensing Storage Temperature -20 to +50°C Mains Supply 100 / 120 / 220 / 240 Volts +10% - 13% 47Hz to 63Hz. max 80VA Safety IEC 1010 Protective Class 1 Dimensions 343mm x 327mm x 152mm...

Open the catalog to page 2
