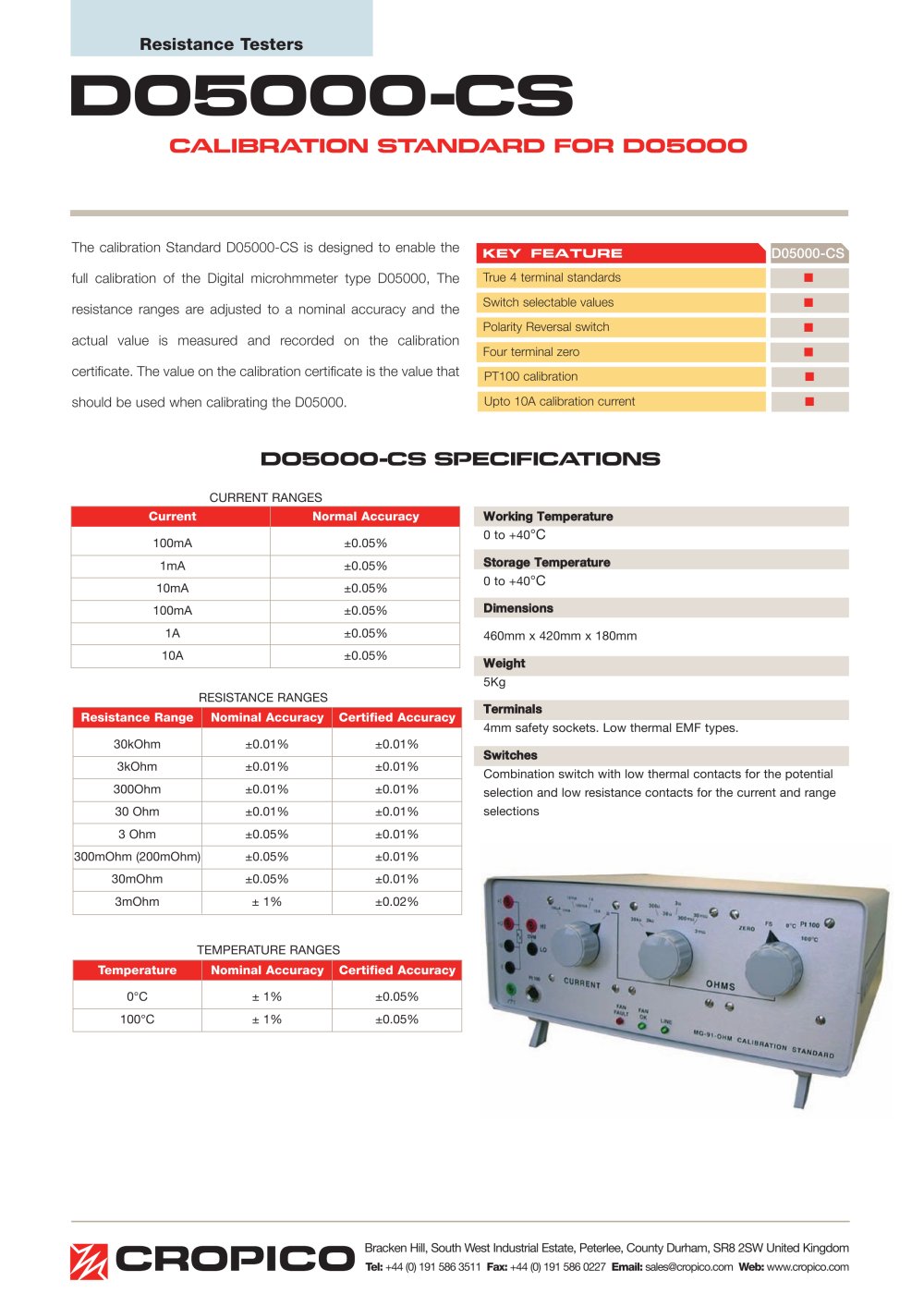

Bracken Hill, SouthWest Industrial Estate, Peterlee, County Durham, SR8 2SWUnited Kingdom Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: [email protected] Web:www.cropico.com D05000-CS CALIBRATION STANDARD FOR D05000 Resistance Testers DO5000-CS SPECIFICATIONS Working Temperature 0 to +40°C Storage Temperature 0 to +40°C Dimensions 460mm x 420mm x 180mm Weight 5Kg Terminals 4mm safety sockets. Low thermal EMF types. Switches Combination switch with low thermal contacts for the potential selection and low resistance contacts for the current and range selections The calibration Standard D05000-CS is designed to enable the full calibration of the Digital microhmmeter type D05000, The resistance ranges are adjusted to a nominal accuracy and the actual value is measured and recorded on the calibration certificate. The value on the calibration certificate is the value that should be used when calibrating the D05000. Current Normal Accuracy 100mA 1mA 10mA 100mA 1A 10A ±0.05% ±0.05% ±0.05% ±0.05% ±0.05% ±0.05% key feature D05000-CS True 4 terminal standards Switch selectable values Polarity Reversal switch Four terminal zero PT100 calibration Upto 10A calibration current Resistance Range Nominal Accuracy Certified Accuracy 30kOhm 3kOhm 300Ohm 30 Ohm 3 Ohm 300mOhm (200mOhm) 30mOhm 3mOhm ±0.01% ±0.01% ±0.01% ±0.01% ±0.05% ±0.05% ±0.05% ± 1% ±0.01% ±0.01% ±0.01% ±0.01% ±0.01% ±0.01% ±0.01% ±0.02% Temperature Nominal Accuracy Certified Accuracy 0°C 100°C ± 1% ± 1% ±0.05% ±0.05% CURRENT RANGES RESISTANCE RANGES TEMPERATURE RANGES
