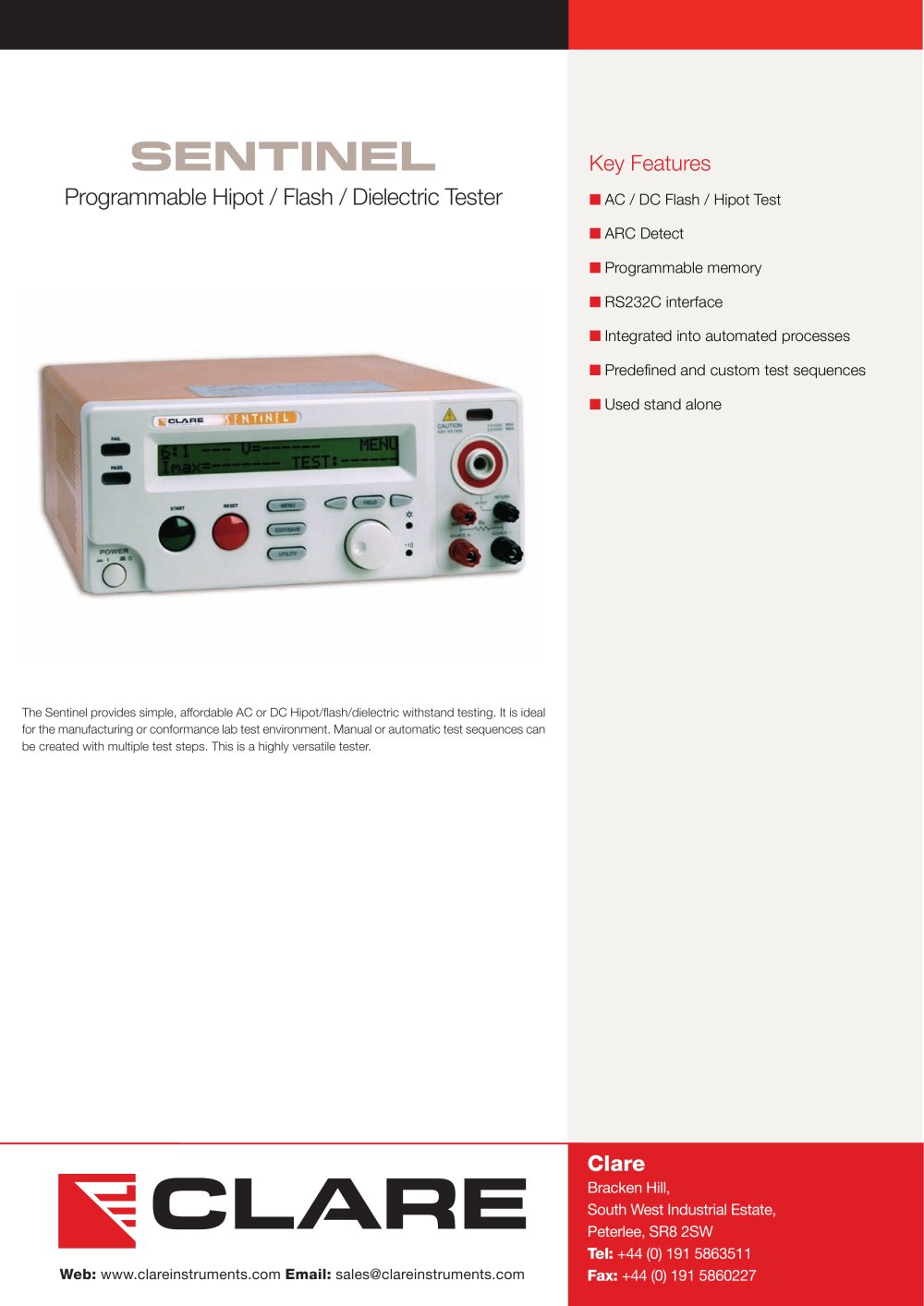

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 Sentinel Programmable Hipot / Flash / Dielectric Tester The Sentinel provides simple, affordable AC or DC Hipot/flash/dielectric withstand testing. It is ideal for the manufacturing or conformance lab test environment. Manual or automatic test sequences can be created with multiple test steps. This is a highly versatile tester. Key Features AC / DC Flash / Hipot Test ARC Detect Programmable memory RS232C interface Integrated into automated processes Predefined and custom test sequences Used stand alone

Open the catalog to page 1

SPECIFICATION AC Flash/Hipot Test Output Voltage Range 0.100 ~ 5.000kV Max. Current 40mA, (above 500V) Current Limit 0.10 ~ 40mA, 0.02mA (resolution) DC Flash/Hipot Test Output Voltage Range 0.100 ~ 6.000kV Max. Current 10mA, (above 500V) Current Limit 0.10~10mA, 0.01mA (resolution) ARC Detect Detect Current 40 levels (1-40mA) Memory Test Sequences 10 having upto 16 steps Interface RS232C Yes Remote I /O Yes 16 Channel HV Scanner Optional GPIB Optional ADDITIONAL INFORMATION Mechanical Dimensions 330W x 149H x 446D mm Weight Approx 15kg Electrical Supply Voltage Selectable 120V / 230V 50 or...
