Clare SafeTest Manufacturing (STM) Datasheet
3Pages

{{requestButtons}}

Catalog excerpts

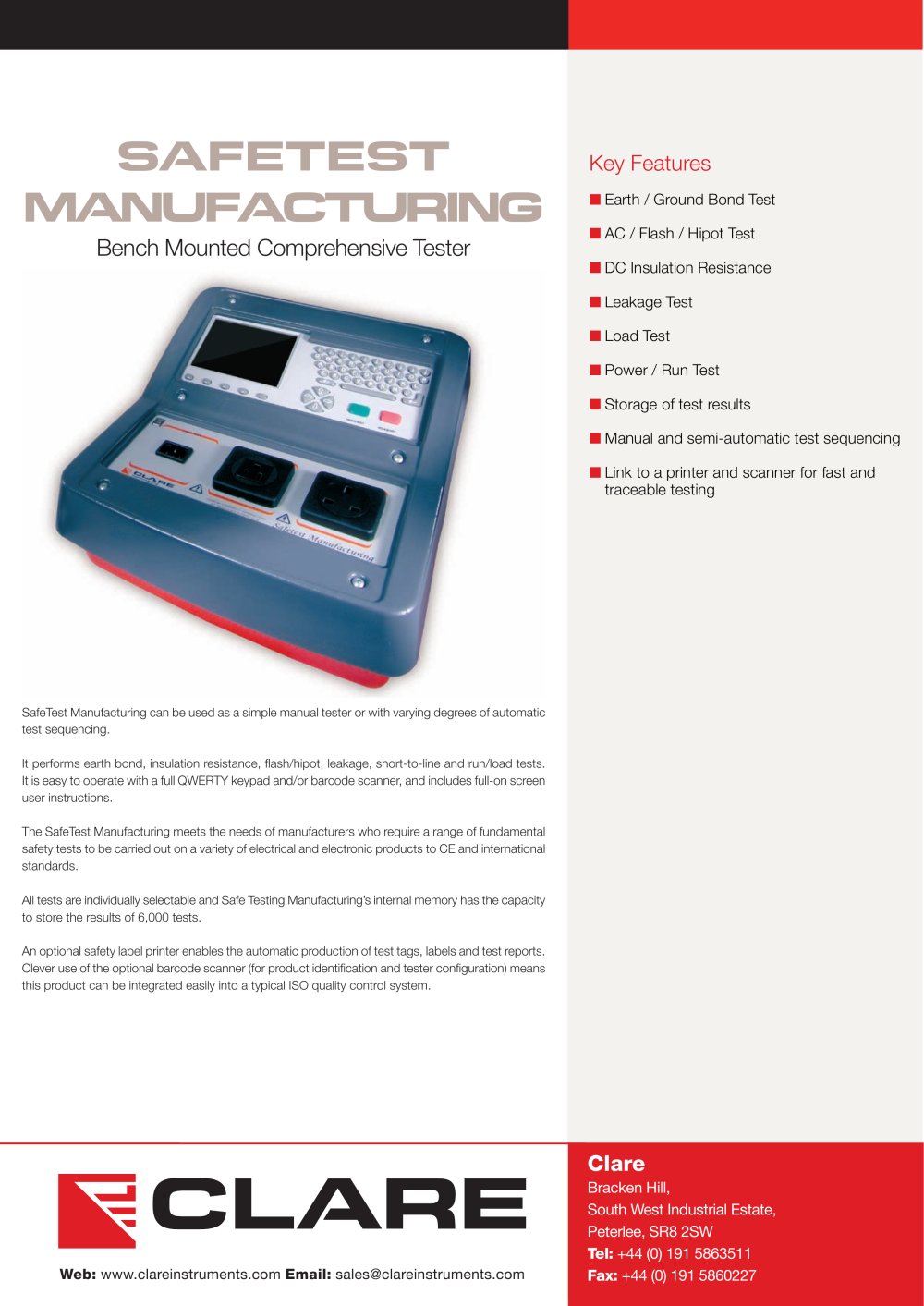

Clare SafeTest Manufacturing (STM) Datasheet - 1

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 SafeTest Manufacturing Bench Mounted Comprehensive Tester SafeTest Manufacturing can be used as a simple manual tester or with varying degrees of automatic test sequencing. It performs earth bond, insulation resistance, flash/hipot, leakage, short-to-line and run/load tests. It is easy to operate with a full QWERTY keypad and/or barcode scanner, and includes full-on screen user instructions. The SafeTest Manufacturing meets the needs of manufacturers who require a range of fundamental safety tests to be carried out on a variety of electrical and electronic products to CE and international standards. All tests are individually selectable and Safe Testing Manufacturing’s internal memory has the capacity to store the results of 6,000 tests. An optional safety label printer enables the automatic production of test tags, labels and test reports. Clever use of the optional barcode scanner (for product identification and tester configuration) means this product can be integrated easily into a typical ISO quality control system. Key Features Earth / Ground Bond Test AC / Flash / Hipot Test DC Insulation Resistance Leakage Test Load Test Power / Run Test Storage of test results Manual and semi-automatic test sequencing Link to a printer and scanner for fast and traceable testing

Open the catalog to page 1
Clare SafeTest Manufacturing (STM) Datasheet - 2

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 SPECIFICATION Flash/Hipot Test (Class I) Test Voltage Class I 1.5 kV AC Display Range 0.1 – 10.00 mA Resolution 0.01 mA Accuracy +/- 5% +/- 2 digits Pass Levels Selectable up to 10 mA Flash/Hipot Test (Class II) Test Voltage Class II 3.0 kV AC Range 0.1 – 10.00 mA Resolution 0.01 mA Accuracy +/- 5% +/- 2 digits Pass Levels Selectable up to 10 mA Earth / Ground Bond Test Test Voltage 6V AC (open circuit) Test...

Open the catalog to page 2
Clare SafeTest Manufacturing (STM) Datasheet - 3

Polarity Test performed Live & Neutral continuity & polarity External Connections Serial Port Parallel Port Guard Switch Beacon ADDITIONAL INFORMATION Mechanical Dimensions 450W x 410H x 155D mm Weight 9kg Electrical Operating Voltage Range 103V – 126V, 207V – 253V, 45Hz – 65Hz Operating Temperature 0 – 40°C EN 50191 Compliant when used with appropriate accessories Supplied with HT Probe Earth Bond Lead Guard with Plug Instruction Manual Cropico Hampton Road, Croydon, Surrey, United Kingdom, CR9 2RU Tel: +44 (0) 20 86844025 Web: www.cropico.com Email: info@cropico.com Fax: +44 (0) 20...

Open the catalog to page 3
