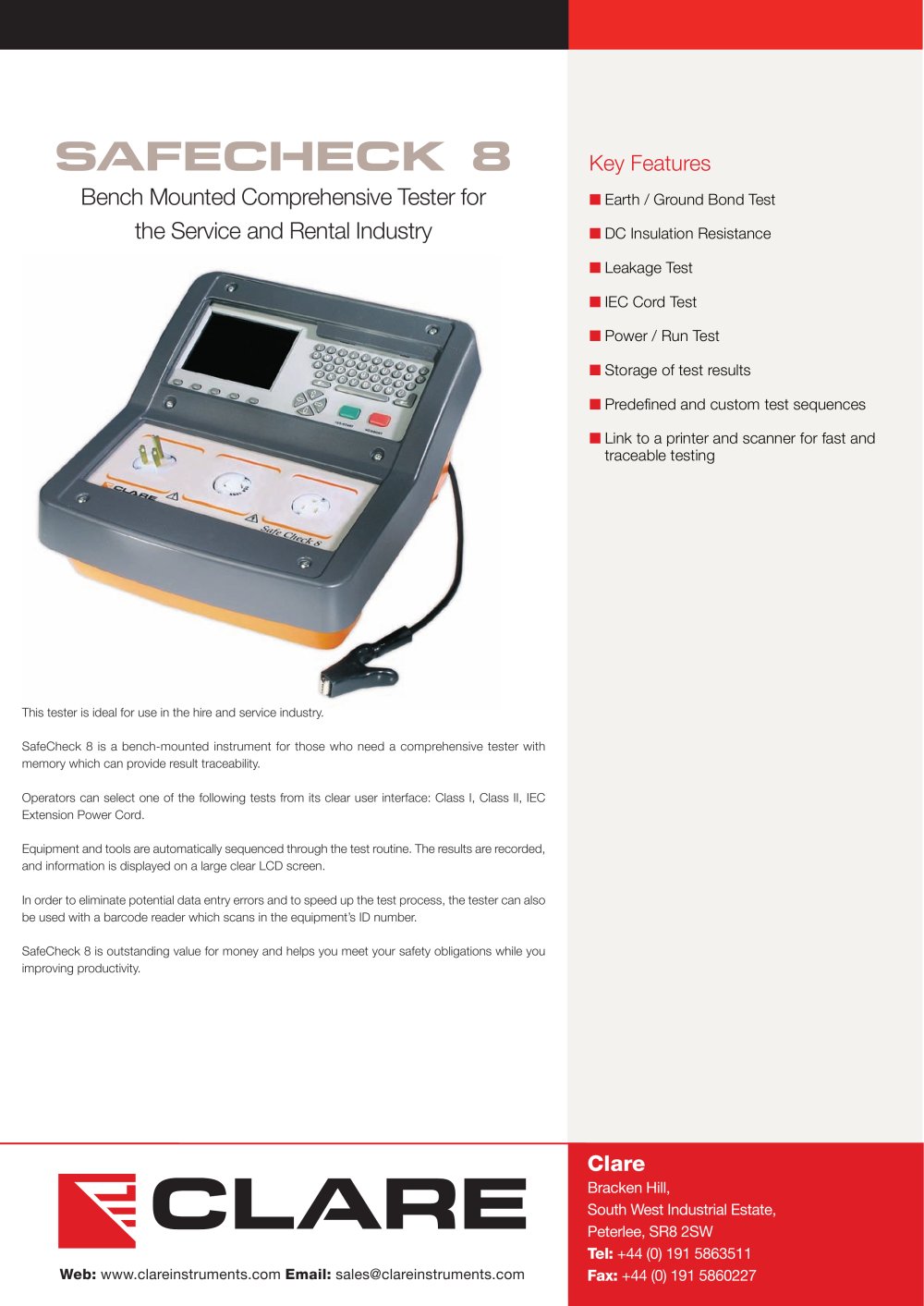

Clare Safecheck 8 Datasheet (UK & USA) - 1

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 SafeCheck 8 Bench Mounted Comprehensive Tester for the Service and Rental Industry Key Features Earth / Ground Bond Test DC Insulation Resistance Leakage Test IEC Cord Test Power / Run Test Storage of test results Predefined and custom test sequences Link to a printer and scanner for fast and traceable testing This tester is ideal for use in the hire and service industry. SafeCheck 8 is a bench-mounted instrument for those who need a comprehensive tester with memory which can provide result traceability. Operators can select one of the following tests from its clear user interface: Class I, Class II, IEC Extension Power Cord. Equipment and tools are automatically sequenced through the test routine. The results are recorded, and information is displayed on a large clear LCD screen. In order to eliminate potential data entry errors and to speed up the test process, the tester can also be used with a barcode reader which scans in the equipment’s ID number. SafeCheck 8 is outstanding value for money and helps you meet your safety obligations while you improving productivity.

Open the catalog to page 1

Clare Safecheck 8 Datasheet (UK & USA) - 2

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 SPECIFICATION Flash/Hipot Test (Class I) Test Voltage Class l 1.25kV AC Display Range 0.1 - 10 mA AC Resolution 0.01mA Accuracy +/- 5% +/- 2 digits Pass Levels selectable up to 10mA Flash/Hipot Test (Class II) Test Voltage Class ll 2.5 kV AC Display Range 0.1 - 10 mA AC. Resolution 0.01mA Accuracy +/- 5% +/- 2 digits Pass Levels selectable up to 10mA DC Insulation Test Test Voltage 500V Display Range 0.1 -...

Open the catalog to page 2

Clare Safecheck 8 Datasheet (UK & USA) - 3

IEC Power Cord Test Test Voltage 40V AC Detects Good, Open, Short, Reversed ADDITIONAL INFORMATION Mechanical Dimensions 450W x 410H x 155D mm Weight Approx 8.8kg Electrical Supply Voltage Selectable 115V / 230V 50 or 60Hz Operating Temperature 0°C to +40°C Storage Temperature -10°C to +50°C EN50191 Compliant when used with appropriate accessories Supplied With HT Probe 3 pin guard link connector Earth bond clip Mains lead Instruction Manual SafeCheck 8 Solutions package for automation and traceability, includes: SafeCheck 8 Desk Test n Tag printer Barcode Scanner 1000 white labels PATGuard...
