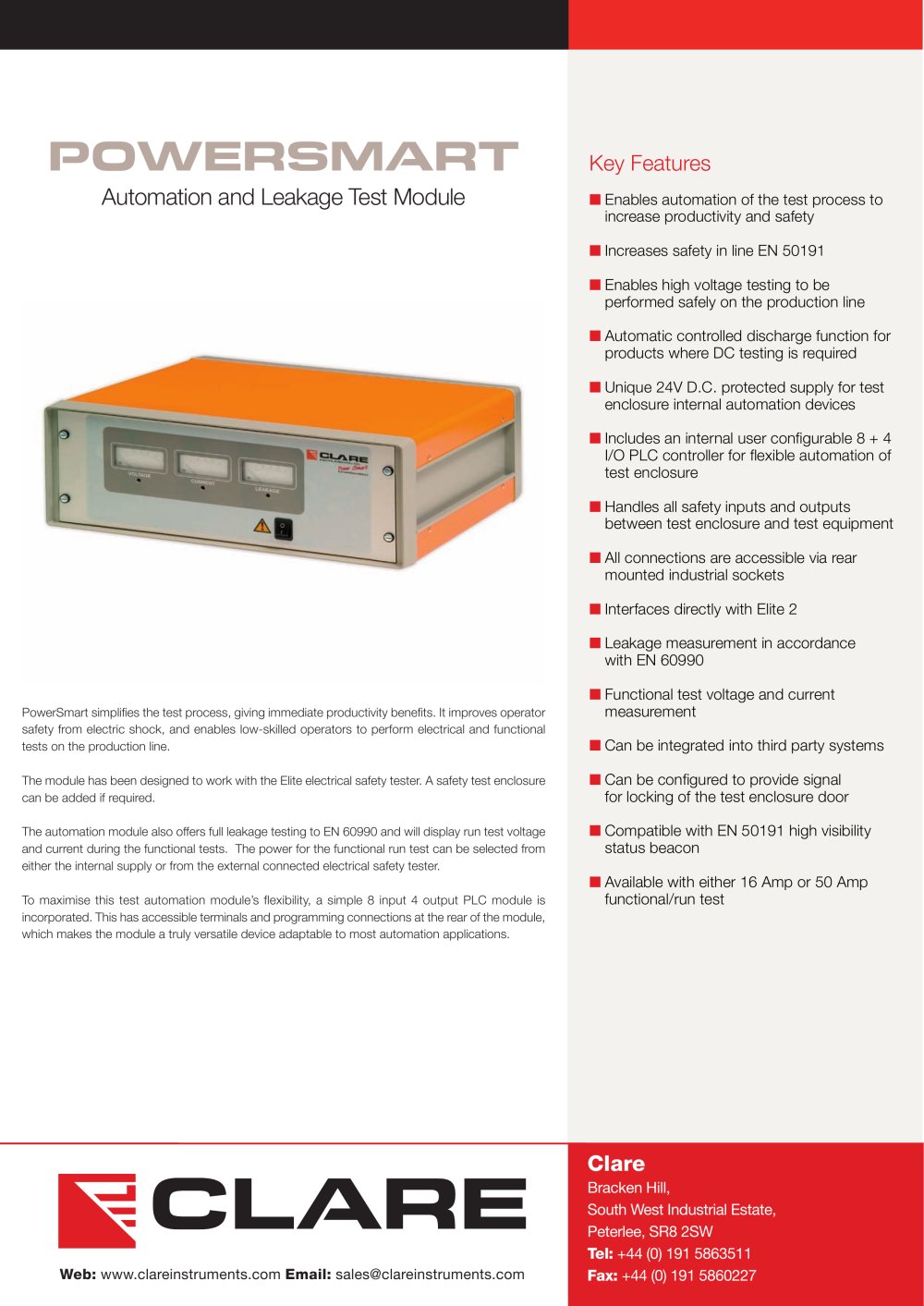

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 PowerSmart Automation and Leakage Test Module PowerSmart simplifies the test process, giving immediate productivity benefits. It improves operator safety from electric shock, and enables low-skilled operators to perform electrical and functional tests on the production line. The module has been designed to work with the Elite electrical safety tester. A safety test enclosure can be added if required. The automation module also offers full leakage testing to EN 60990 and will display run test voltage and current during the functional tests. The power for the functional run test can be selected from either the internal supply or from the external connected electrical safety tester. To maximise this test automation module’s flexibility, a simple 8 input 4 output PLC module is incorporated. This has accessible terminals and programming connections at the rear of the module, which makes the module a truly versatile device adaptable to most automation applications. Key Features Enables automation of the test process to increase productivity and safety Increases safety in line EN 50191 Enables high voltage testing to be performed safely on the production line Automatic controlled discharge function for products where DC testing is required Unique 24V D.C. protected supply for test enclosure internal automation devices Includes an internal user configurable 8 + 4 I/O PLC controller for flexible automation of test enclosure Handles all safety inputs and outputs between test enclosure and test equipment All connections are accessible via rear mounted industrial sockets Interfaces directly with Elite 2 Leakage measurement in accordance with EN 60990 Functional test voltage and current measurement Can be integrated into third party systems Can be configured to provide signal for locking of the test enclosure door Compatible with EN 50191 high visibility status beacon Available with either 16 Amp or 50 Amp functional/run test

Open the catalog to page 1

ADDITIONAL INFORMATION Mechanical Case Dimensions 19-inch 4U, 510W x 133H x 400D mm Weight 9 kg Electrical Operating Temperature 0 - 40° C Supply Voltage 100 – 250V AC. 50/60 Hz Order Number 461A910 50A Functional / Run Test 461A915 16A Functional / Run Test Cropico Hampton Road, Croydon, Surrey, United Kingdom, CR9 2RU Tel: +44 (0) 20 86844025 Web: www.cropico.com Email: info@cropico.com Fax: +44 (0) 20 86844094 WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY...
