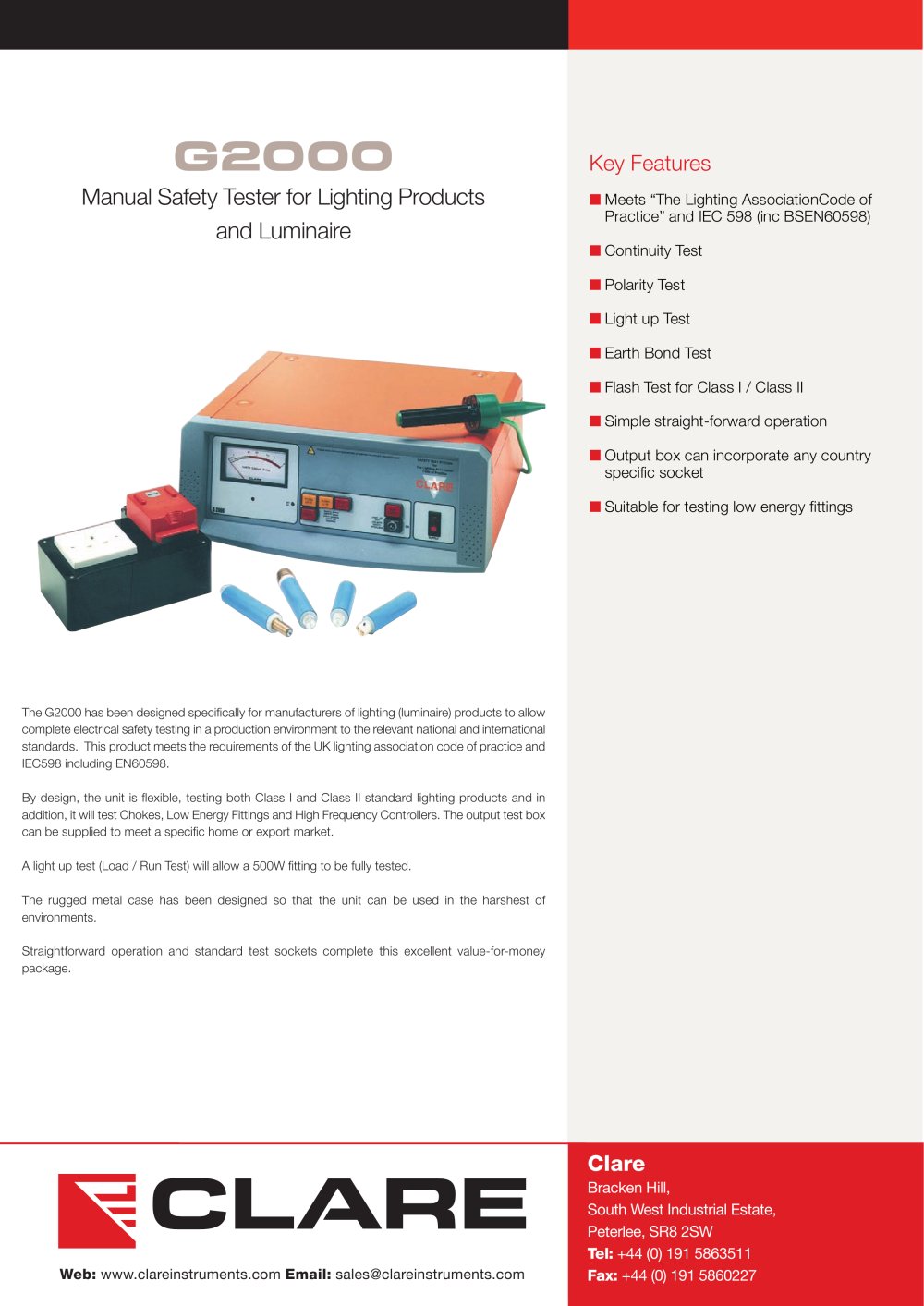

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 G2000 Manual Safety Tester for Lighting Products and Luminaire The G2000 has been designed specifically for manufacturers of lighting (luminaire) products to allow complete electrical safety testing in a production environment to the relevant national and international standards. This product meets the requirements of the UK lighting association code of practice and IEC598 including EN60598. By design, the unit is flexible, testing both Class I and Class II standard lighting products and in addition, it will test Chokes, Low Energy Fittings and High Frequency Controllers. The output test box can be supplied to meet a specific home or export market. A light up test (Load / Run Test) will allow a 500W fitting to be fully tested. The rugged metal case has been designed so that the unit can be used in the harshest of environments. Straightforward operation and standard test sockets complete this excellent value-for-money package. Key Features Meets “The Lighting AssociationCode of Practice” and IEC 598 (inc BSEN60598) Continuity Test Polarity Test Light up Test Earth Bond Test Flash Test for Class I / Class II Simple straight-forward operation Output box can incorporate any country specific socket Suitable for testing low energy fittings

Open the catalog to page 1

SPECIFICATION AC Flash / Hipot Test Test Voltage Class I 1.5kV AC Test Voltage Class II 4kV AC Earth / Ground Bond Test Test Current 10A AC, 0.5Ù trip Polarity Test Performed Live & Neutral, Continuity & Polarity External Connections Beacon Yes Guard Switch Yes ADDITIONAL INFORMATION Mechanical Dimensions 460W x 460H x 190D mm approx Weight 16kg Electrical Supply Voltage 220/240V 50Hz Operating Temperature 0-40°C EN50191 Compliant when used with appropriate accessories Supplied With EC Probe HT Probe Guard Switch Simulator Continuity Probe Output Box Operating Key Mains Lead Instruction...
