Clare A203 Series Datasheet - A203ES, A203H, A203K

Clare A203 Series Datasheet - A203ES, A203H, A203K
2Pages

Catalog excerpts

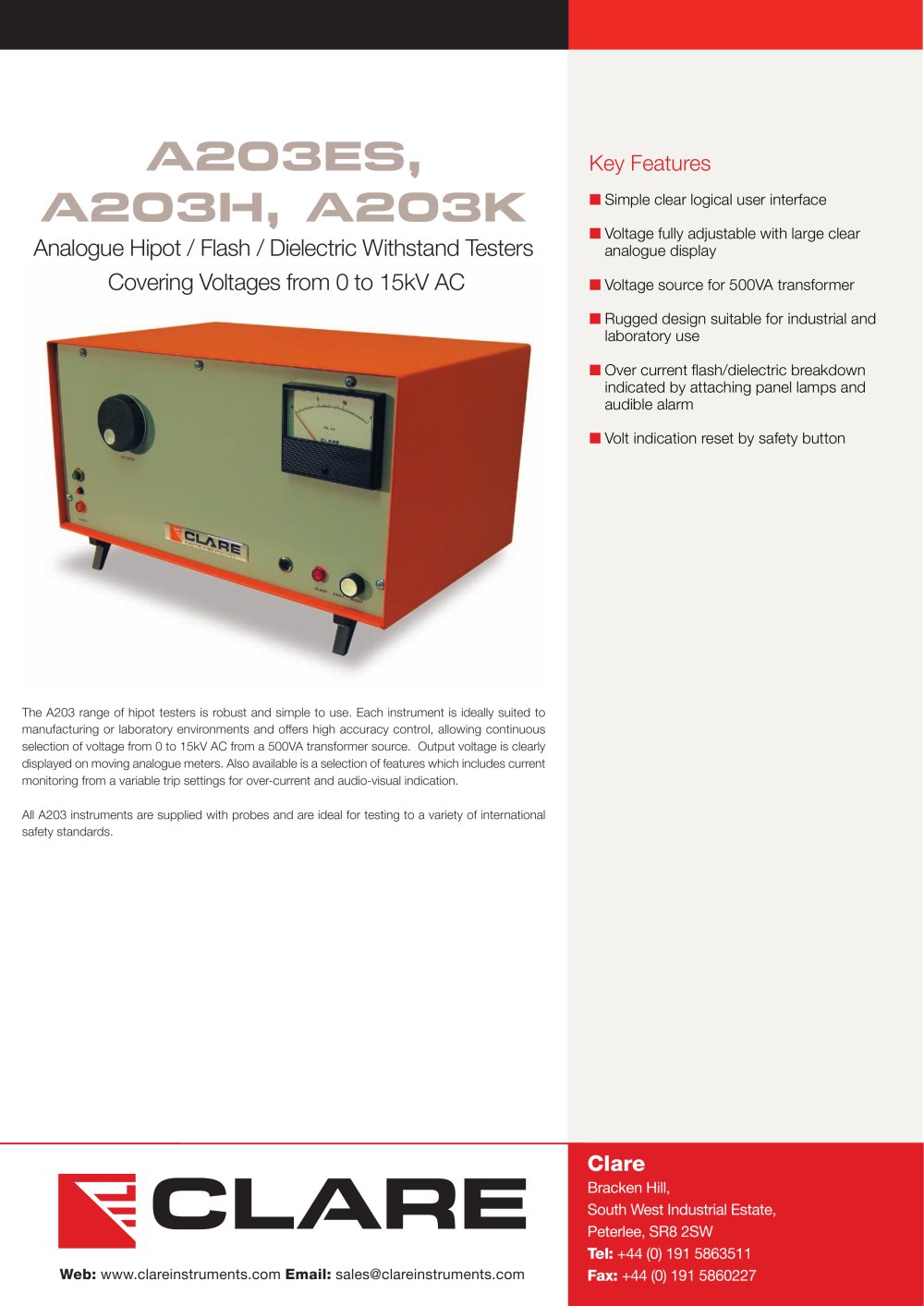

Clare A203 Series Datasheet - A203ES, A203H, A203K - 1

Clare Bracken Hill, SouthWest Industrial Estate, Peterlee, SR8 2SW Tel: +44 (0) 191 5863511 Web: www.clareinstruments.com Email: sales@clareinstruments.com Fax: +44 (0) 191 5860227 The A203 range of hipot testers is robust and simple to use. Each instrument is ideally suited to manufacturing or laboratory environments and offers high accuracy control, allowing continuous selection of voltage from 0 to 15kV AC from a 500VA transformer source. Output voltage is clearly displayed on moving analogue meters. Also available is a selection of features which includes current monitoring from a variable trip settings for over-current and audio-visual indication. All A203 instruments are supplied with probes and are ideal for testing to a variety of international safety standards. Key Features Simple clear logical user interface Voltage fully adjustable with large clear analogue display Voltage source for 500VA transformer Rugged design suitable for industrial and laboratory use Over current flash/dielectric breakdown indicated by attaching panel lamps and audible alarm Volt indication reset by safety button A203ES, A203H, A203K Analogue Hipot / Flash / Dielectric Withstand Testers Covering Voltages from 0 to 15kV AC

Open the catalog to page 1

Clare A203 Series Datasheet - A203ES, A203H, A203K - 2

AC Flash/Hipot Test Trip Range Weight Supply Voltage Operating Temperature A203ES 0-5kV AC 5.25 and 125mA 25 kg 230v AC 0-40OC A203K 0-15kV AC 5mA fixed 30kg 230v AC 0-40OC A203H/TL 0-10kV AC 5mA fixed 25 kg 230v AC 0-40OC SPECIFICATION Services Service & Calibration Cropico Hampton Road, Croydon, Surrey, United Kingdom, CR9 2RU Tel: +44 (0) 20 86844025 Web: www.cropico.com Email: info@cropico.com Fax: +44 (0) 20 86844094 WORLD LEADERs IN SAFETY TEST AND MEASUREMENT G R O U P SEAWARD PRECISION INSTRUMENTS CROPICO MEDICAL RIGEL INDUSTRIAL SAFETY INSTRUMENTS CLARE PORTABLE ELECTRICAL SAFETY...
