SV35.4 Series™ Hard Drives

SV35.4 Series™ Hard Drives
2Pages

Catalog excerpts

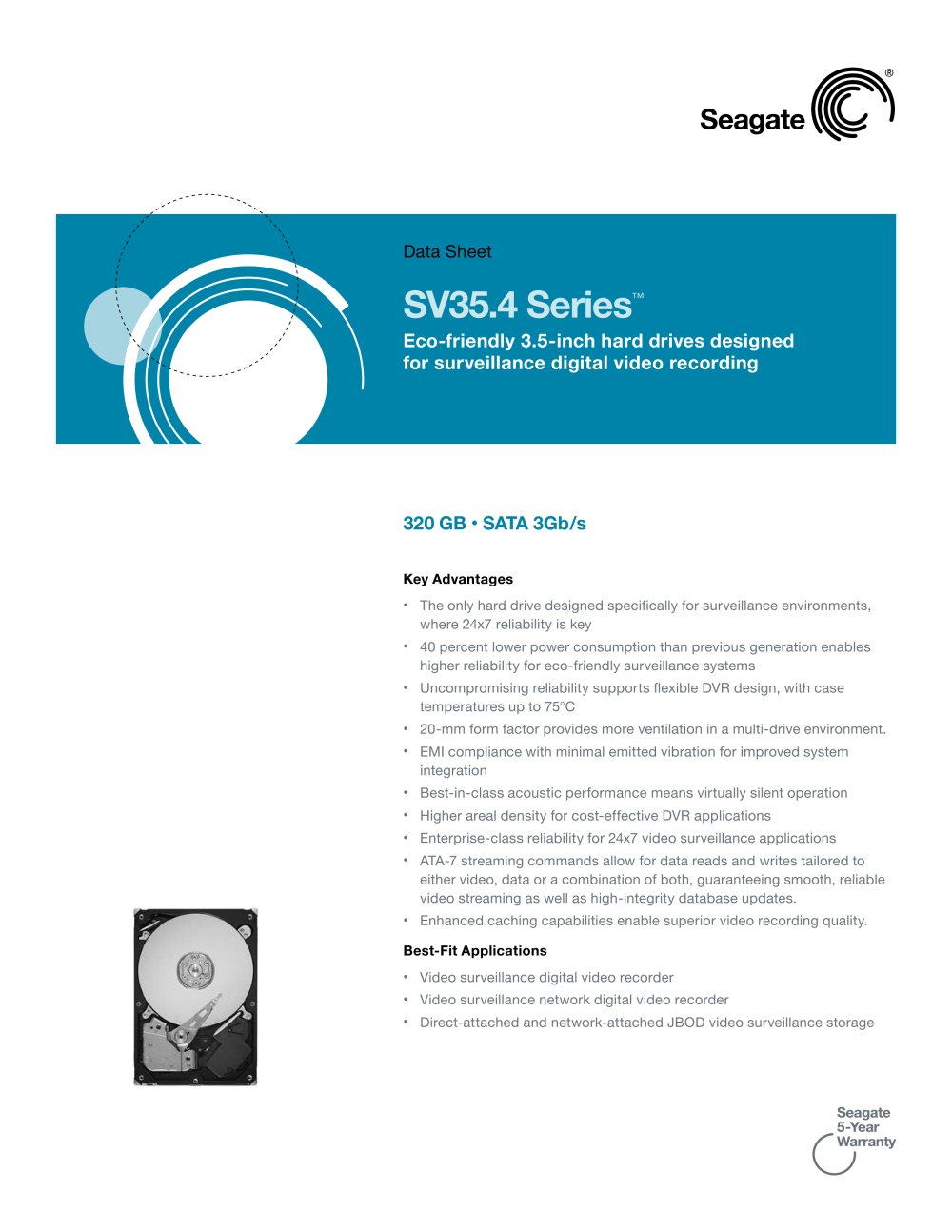

Key Advantages > s The only hard drive designed specifically for surveillance environments, where 24x7 reliability is key > s 40 percent lower power consumption than previous generation enables higher reliability for eco-friendly surveillance systems > s Uncompromising reliability supports flexible DVR design, with case temperatures up to 75ٰC > s 20-mm form factor provides more ventilation in a multi-drive environment. > s EMI compliance with minimal emitted vibration for improved system integration > s Best-in-class acoustic performance means virtually silent operation > s Higher areal density for cost-effective DVR applications > s Enterprise-class reliability for 24x7 video surveillance applications > s ATA-7 streaming commands allow for data reads and writes tailored to either video, data or a combination of both, guaranteeing smooth, reliable video streaming as well as high-integrity database updates. > s Enhanced caching capabilities enable superior video recording quality. Best-Fit Applications > s Video surveillance digital video recorder > s Video surveillance network digital video recorder > s Direct-attached and network-attached JBOD video surveillance storage >

Open the catalog to page 1

1 Model Number ST3320410SV Interface Options SATA 3Gb/s <14 <15 Performance Cache, Multisegmented (MB) 16 Average Seek (ms, typical) Read Write <1.0 <1.2 > SATA Data Transfer Modes Supported (Gb/s) Power-On to Ready (sec, max, @ 25ٰC and nominal voltage) 3.0/1.5 16 Track-to-Track Seek (ms, typical) Read Write > Voltage Tolerance (including noise) 5V 5%12V ѱ10% Configuration/Organization > s Guaranteed Sectors 625,142,448 Reliability/Data integrity Nonrecoverable Read Errors per Bits Read 1 sector per 10E14 > s MTBF (hours)/Annualized Failure Rate (AFR) 40C HDD Case Temp >1 million/<1% >...

Open the catalog to page 2
