Barracuda 7200.10 Data Sheet

Barracuda 7200.10 Data Sheet

Product catalog summary

Overview: The document provides detailed specifications and features of the Seagate Barracuda 7200.10 hard drive series, which ranges from 80 GB to 750 GB in capacity. It highlights the use of perpendicular recording technology and positions the drive as a leader in capacity and reliability.

Key Advantages:

First 3.5-inch drive to use perpendicular recording technology, enhancing capacity and reliability.
First to reach 750 GB capacity, leading the market by a year.
Proven reliability with over 16 million units shipped.
Wide range of options in capacity, cache, and interface for diverse computing needs.
Environmental and reliability features include Adaptive Fly Height, Clean Sweep, Directed Offline Scan, RoHS compliance, G-Force Protection, and SoftSonic motor for quiet operation.

Best-Fit Applications: The drive is suitable for desktop and high-performance PCs, including gamer PCs, workstations, high-end PCs, desktop RAID, mainstream PCs, point-of-sale devices, ATMs, and personal external storage solutions.

Specifications:

Capacities: 750 GB, 500 GB, 400 GB, 320 GB, 250 GB, 160 GB, 80 GB.
Interface Options: SATA 1.5Gb/s, SATA 3Gb/s, and Ultra ATA/100.
Performance: Max transfer rate of 100/300 MB/s, 16 MB cache, 7200 RPM spindle speed.
Reliability: 700,000 hours MTBF, 0.34% AFR, 50,000 contact start-stops.
Environmental: Operating temperature 0 to 60°C, non-operating temperature -40 to 70°C, shock resistance, and acoustics specifications.

Physical Dimensions: The drives have a consistent height, width, and depth across models, with slight variations in weight depending on capacity.

Contact Information: Seagate provides contact details for their offices in the Americas, Asia/Pacific, and Europe, Middle East, and Africa.

Catalog excerpts

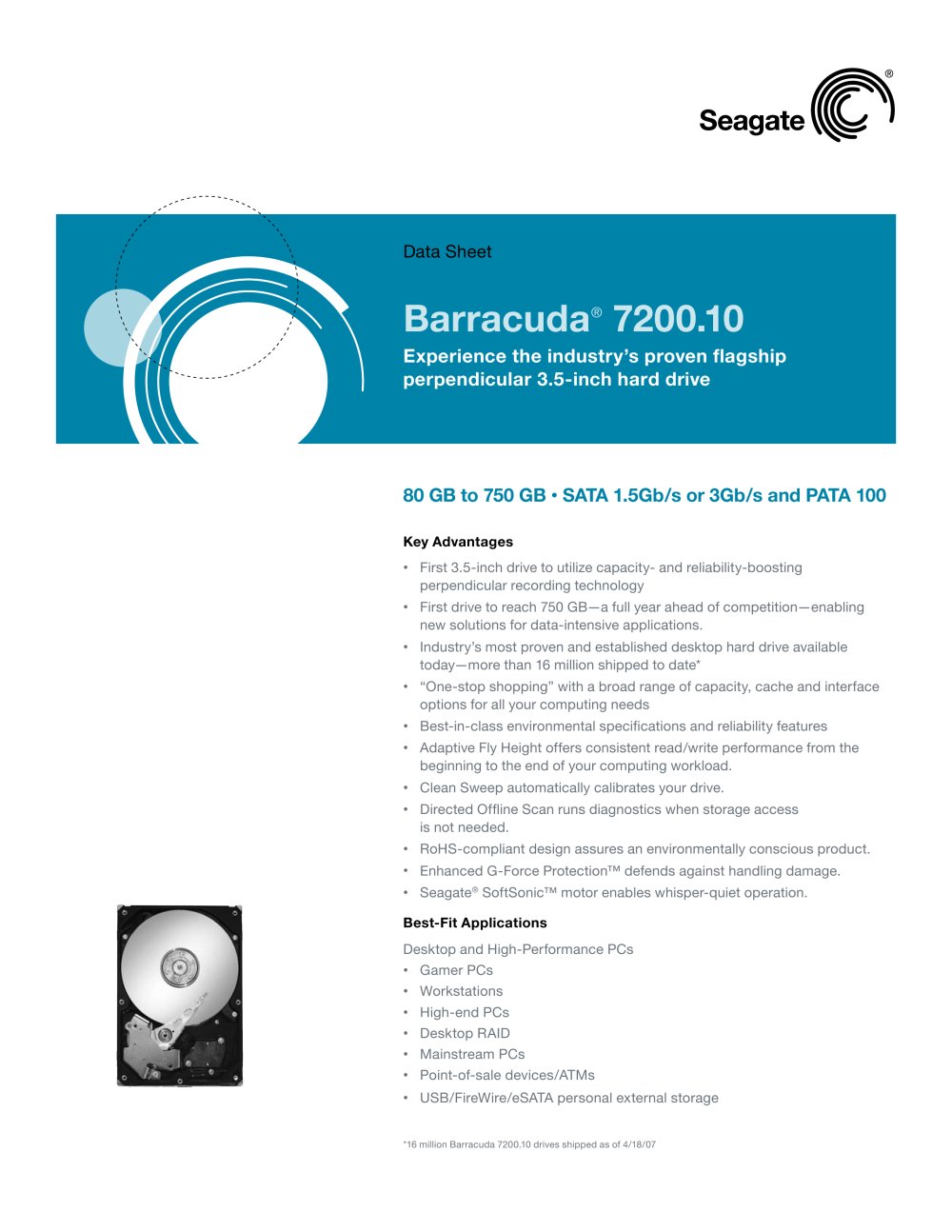

Key Advantages > s First 3.5-inch drive to utilize capacity- and reliability-boosting perpendicular recording technology > s First drive to reach 750 GBa full year ahead of competitionחenabling new solutions for data-intensive applications. > s Industrys most proven and established desktop hard drive available todayҗmore than 16 million shipped to date* > s One-stop shoppingӔ with a broad range of capacity, cache and interface options for all your computing needs > s Best-in-class environmental specifications and reliability features > s Adaptive Fly Height offers consistent read/write performance from the beginning to the end of your computing workload. > s Clean Sweep automatically calibrates your drive. > s Directed Offline Scan runs diagnostics when storage access is not needed. > s RoHS-compliant design assures an environmentally conscious product. > s Enhanced G-Force Protection defends against handling damage. > s Seagate > ٮ SoftSonic motor enables whisper-quiet operation. Best-Fit Applications Desktop and High-Performance PCs > s Gamer PCs > s Workstations > s High-end PCs > s Desktop RAID > s Mainstream PCs > s Point-of-sale devices/ATMs > s USB/FireWire/eSATA personal external storage > *16 million Barracuda 7200.10 drives shipped as of 4/18/07 size="-3">

Open the catalog to page 1
