Underslung Generator Set

Underslung Generator Set
1 / 1 PageView full catalog

Underslung Generator Set

Product catalog summary
Generator Set Specifications
  • Power Output: 15kW (18.7kVA at 0.8 power factor) at 1800 rpm; 12.5kW (15.6kVA at 0.8 power factor) at 1500 rpm.
  • Voltage: 230V at 60Hz, 180V at 50Hz; Output options include 460V at 60Hz and 380V at 50Hz.
  • Engine: Deutz model F31-912, air-cooled, three-cylinder, 173 cubic inch (2836cc) displacement, four-cycle engine with 31.5 BHP continuous power.
Receptacles
  • 230V Receptacle: 250VAC, 50 amps (Carrier P/N 22-01286-00, Micpo P/N 1101-02).
  • 230V Receptacle: 250VAC, 60 amps (Carrier P/N 66U1-3863-1, Micpo P/N 1102-01).
  • 460V Receptacle: CEE-17, 460VAC, 32 amps (Carrier P/N 22-01561-00).
  • Standard plugs: 230V 50 amp and 460V 32 amp.
Design and Features
  • The generator set is designed to be mounted under the chassis trailer frame, suitable for nearly all standard ISO chassis trailers.
  • It provides continuous dual voltage electrical power to intermodal refrigerated containers.
  • The unit is self-contained with a 50 U.S. gallon (189 liter) fuel tank, engine, generator, battery, and all operating controls.
Dimensions and Weight
  • Dimensions: Length: 7' 1" (2,159 mm), Height: 1' 11" (584 mm), Depth: 2' 11" (889 mm).
  • Weight: Tare without fuel: 1,500 lbs (680 kg); Tare with fuel: 1,975 lbs (896 kg).
See more

Catalog excerpts

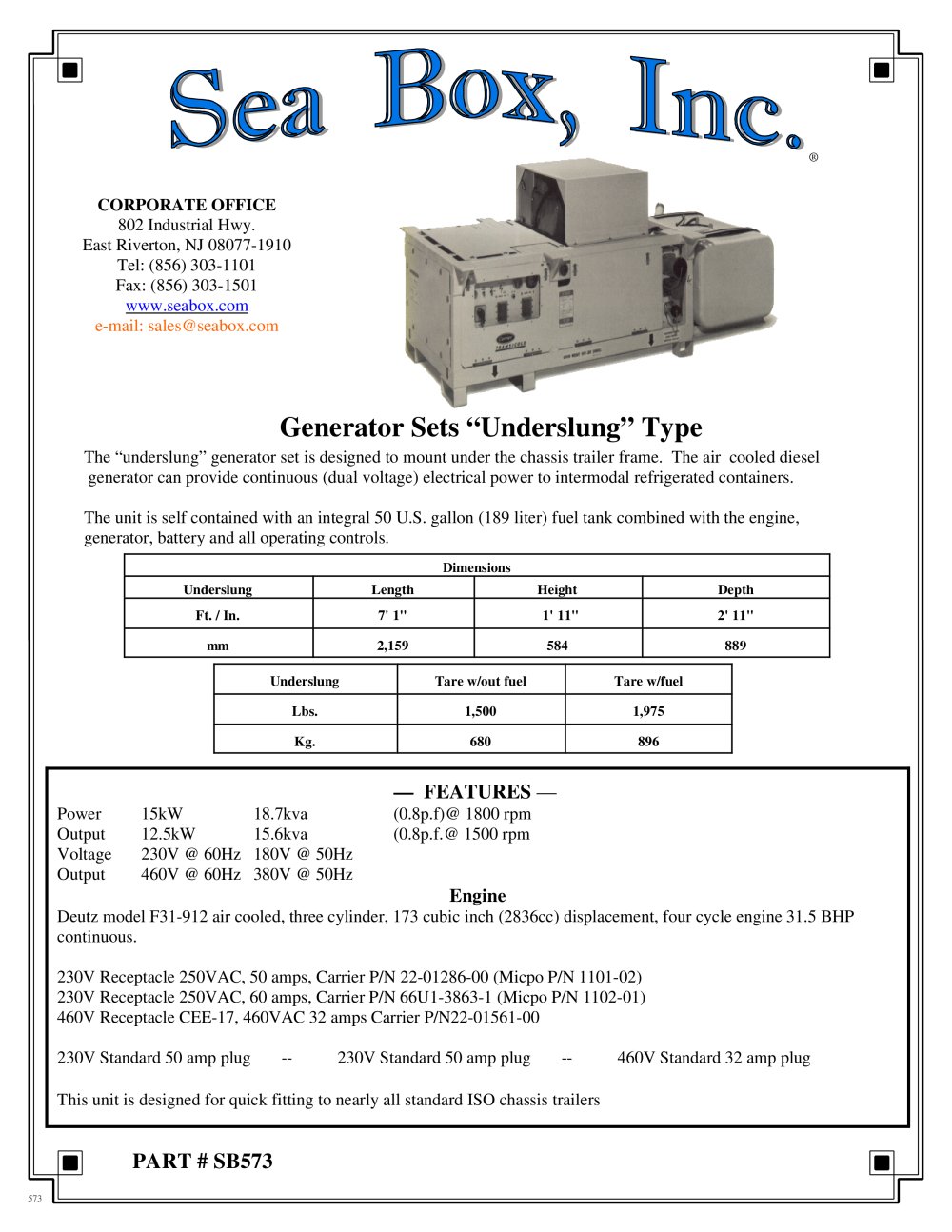

Underslung Generator Set-1

CORPORATE OFFICE 802 Industrial Hwy. East Riverton, NJ 08077-1910 Tel: (856) 303-1101 Fax: (856) 303-1501 www.seabox.com > e-mail: [email protected] The ԓunderslung generator set is designed to mount under the chassis trailer frame. The air cooled diesel generator can provide continuous (dual voltage) electrical power to intermodal refrigerated containers. The unit is self contained with an integral 50 U.S. gallon (189 liter) fuel tank combined with the engine, generator, battery and all operating controls. > Dimensions UnderslungLengthHeightDepth Ft. / In.7' 1" 1' 11"2' 11" mm2,159584889 UnderslungTare w/out fuelTare w/fuel Lbs.1,5001,975 Kg.680896 Deutz model F31-912 air cooled, three cylinder, 173 cubic inch (2836cc) displacement, four cycle engine 31.5 BHP continuous. 230V Receptacle 250VAC, 50 amps, Carrier P/N 22-01286-00 (Micpo P/N 1101-02) 230V Receptacle 250VAC, 60 amps, Carrier P/N 66U1-3863-1 (Micpo P/N 1102-01) 460V Receptacle CEE-17, 460VAC 32 amps Carrier P/N22-01561-00 230V Standard 50 amp plug--230V Standard 50 amp plug--460V Standard 32 amp plug This unit is designed for quick fitting to nearly all standard ISO chassis trailers >

 Open the catalog to page 1
