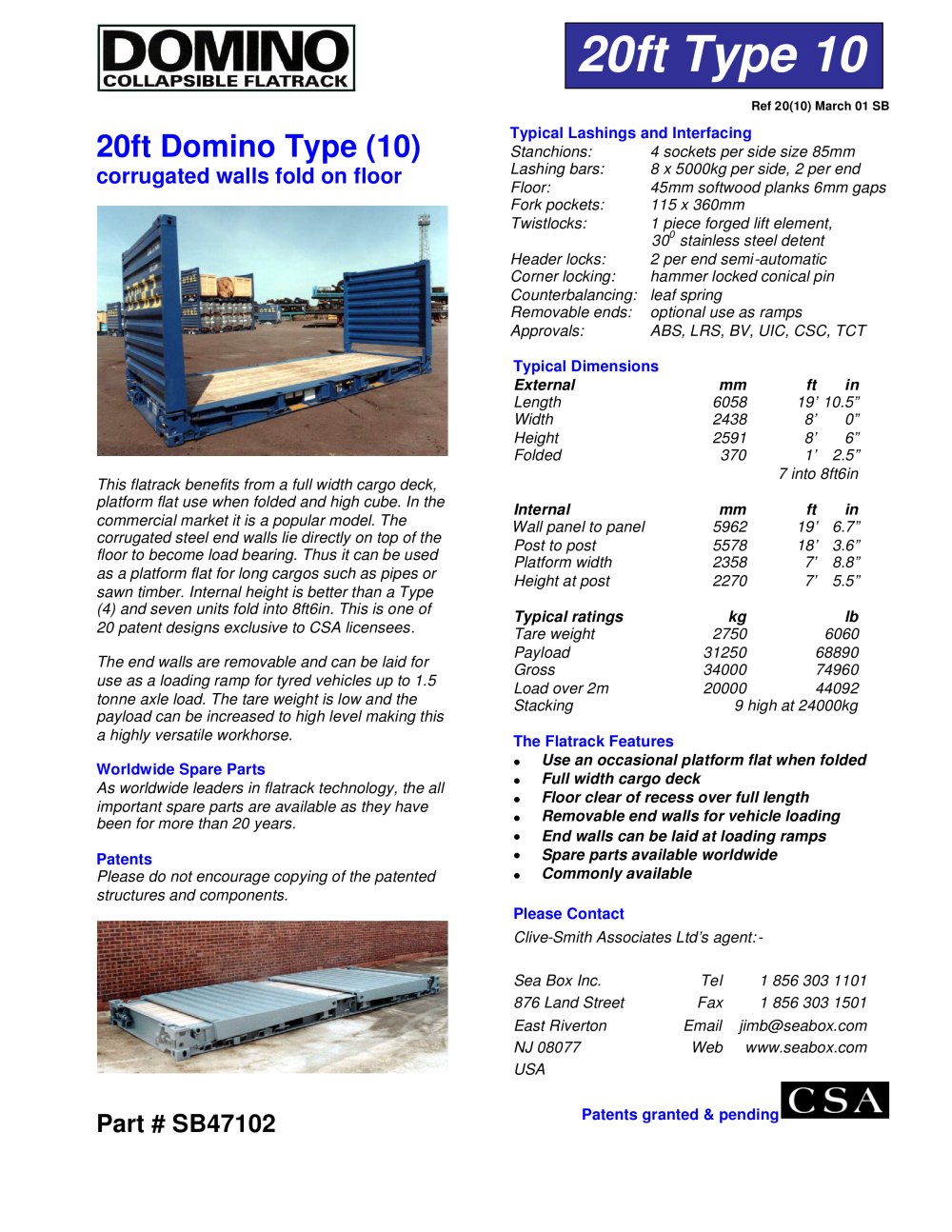

Specifications:
The 20ft Domino Type (10) flatrack features corrugated walls that fold onto the floor, creating a full-width cargo deck. It is designed for high cube usage and is popular in the commercial market. The end walls are load-bearing when folded, allowing it to function as a platform flat for long cargo like pipes or timber. It offers better internal height compared to Type (4) and can fold seven units into 8ft6in. The design is patented and exclusive to CSA licensees.

Features:

• Occasional platform flat use when folded
• Full-width cargo deck
• Floor clear of recess over full length
• Removable end walls for vehicle loading, usable as ramps for vehicles up to 1.5-tonne axle load
• Low tare weight with high payload capacity
• Spare parts available worldwide

Dimensions:
External: Length 6058mm (19’ 10.5”), Width 2438mm (8’ 0”), Height 2591mm (8’ 6”), Folded 370mm (1’ 2.5”)
Internal: Wall panel to panel 5962mm (19’ 6.7”), Post to post 5578mm (18’ 3.6”), Platform width 2358mm (7’ 8.8”), Height at post 2270mm (7’ 5.5”)

Typical Ratings:

• Tare weight: 2750 kg (6060 lb)
• Payload: 31250 kg (68890 lb)
• Gross: 34000 kg (74960 lb)
• Load over 2m: 20000 kg (44092 lb)
• Stacking: 9 high at 24000 kg

Additional Features:

• Stanchions: 4 sockets per side, size 85mm
• Lashing bars: 8 x 5000kg per side, 2 per end
• Floor: 45mm softwood planks with 6mm gaps
• Fork pockets: 115 x 360mm
• Twistlocks: 1 piece forged lift element, 300 stainless steel detent
• Header locks: 2 per end, semi-automatic
• Corner locking: hammer locked conical pin
• Counterbalancing: leaf spring
• Removable ends: optional use as ramps
• Approvals: ABS, LRS, BV, UIC, CSC, TCT

Contact Information:
Clive-Smith Associates Ltd’s agent: Sea Box Inc.
Tel: 1 856 303 1101
Fax: 1 856 303 1501
Email: [email protected]
Web: www.seabox.com
Address: 876 Land Street, East Riverton, NJ 08077, USA

Patents:
Patents granted & pending. Please do not encourage copying of the patented structures and components.
