SB461.9 40' (Type 1) Dry Freight Container, Double Doors One End

SB461.9 40' (Type 1) Dry Freight Container, Double Doors One End

Product catalog summary
Specifications:

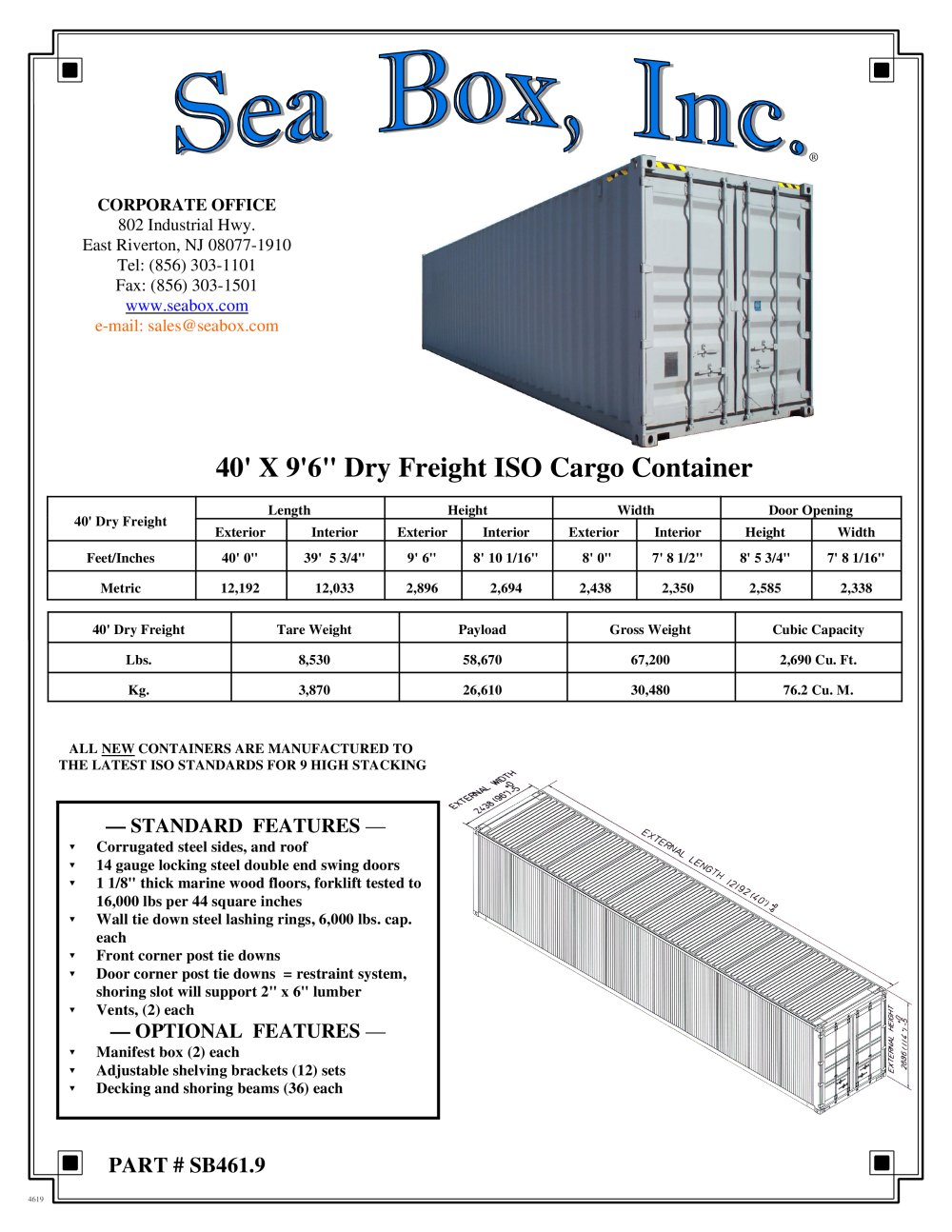

The document details the specifications of a 40' x 9'6" Dry Freight ISO Cargo Container, part number SB461.9. It is manufactured to the latest ISO standards for 9 high stacking. The container's dimensions are provided in both feet/inches and metric units for exterior and interior measurements, including length, height, and width.

Dimensions:
- Exterior Length: 40' 0" (12,192 mm)
- Interior Length: 39' 5 3/4" (12,033 mm)
- Exterior Height: 9' 6" (2,896 mm)
- Interior Height: 8' 10 1/16" (2,694 mm)
- Exterior Width: 8' 0" (2,438 mm)
- Interior Width: 7' 8 1/2" (2,350 mm)
- Door Opening Height: 8' 5 3/4" (2,585 mm)
- Door Opening Width: 7' 8 1/16" (2,338 mm)

Weight and Capacity:
- Tare Weight: 8,530 lbs (3,870 kg)
- Payload: 58,670 lbs (26,610 kg)
- Gross Weight: 67,200 lbs (30,480 kg)
- Cubic Capacity: 2,690 Cu. Ft. (76.2 Cu. M.)

Standard Features:
- Corrugated steel sides and roof
- 14 gauge locking steel double end swing doors
- 1 1/8" thick marine wood floors, forklift tested to 16,000 lbs per 44 square inches
- Wall tie down steel lashing rings with a capacity of 6,000 lbs each
- Front and door corner post tie downs with a restraint system and shoring slot for 2" x 6" lumber
- Two vents

Optional Features:
- Two manifest boxes
- Twelve sets of adjustable shelving brackets
- Thirty-six decking and shoring beams
