Nose Mount Generator Set

Product catalog summary

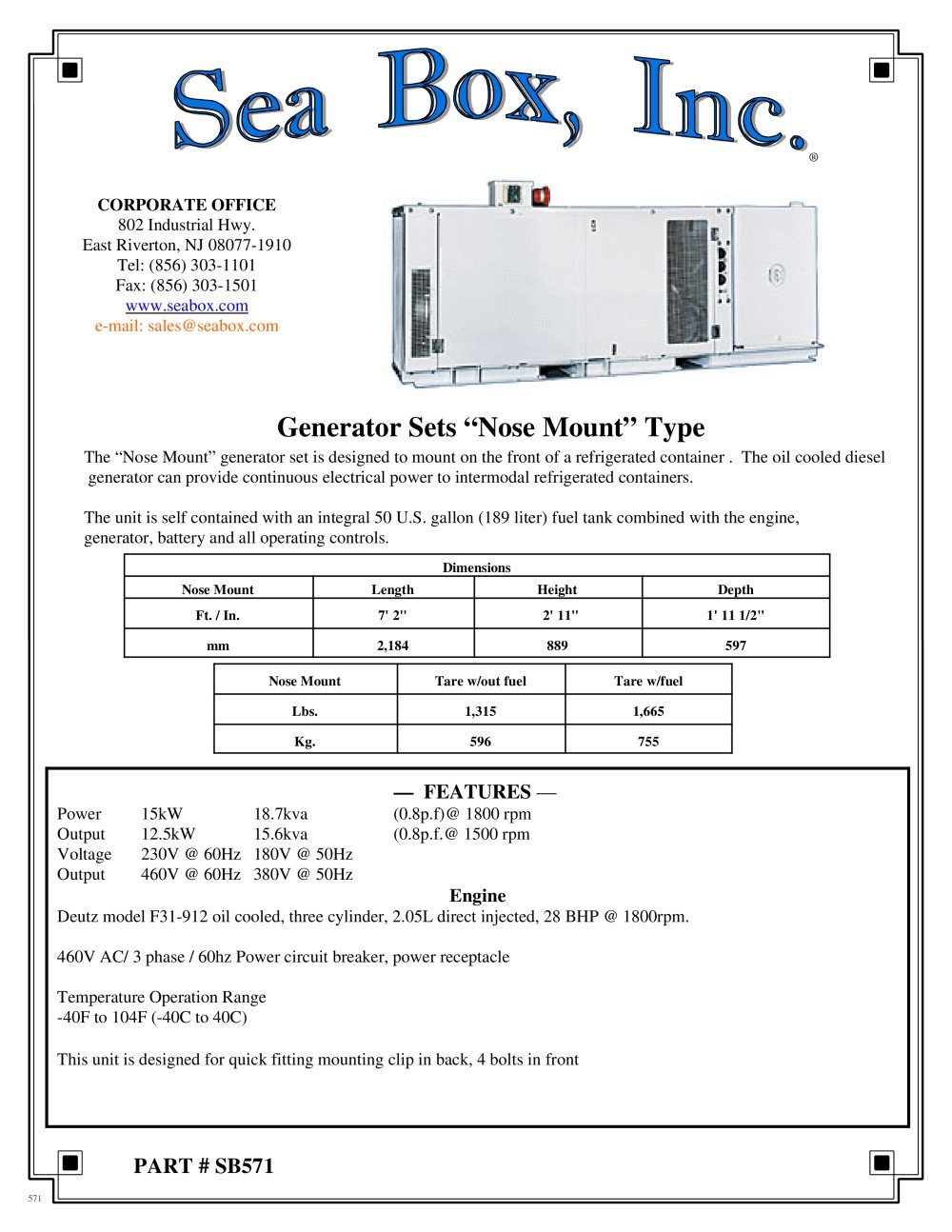

Product Overview: The document provides technical specifications for the 'Nose Mount' Generator Set, part number SB571, designed for mounting on the front of refrigerated containers to supply continuous electrical power.
Specifications:
  • Power Output: 15kW (18.7kVA) at 1800 rpm; 12.5kW (15.6kVA) at 1500 rpm.
  • Voltage: 230V at 60Hz and 180V at 50Hz; Output options include 460V at 60Hz and 380V at 50Hz.
  • Engine: Deutz model F31-912, oil-cooled, three-cylinder, 2.05L, direct-injected, 28 BHP at 1800 rpm.
  • Temperature Range: Operates between -40F to 104F (-40C to 40C).
Design Features:
  • Quick fitting mounting clip at the back and four bolts at the front for easy installation.
  • Self-contained unit with a 50 U.S. gallon (189-liter) fuel tank, engine, generator, battery, and controls.
Dimensions and Weight:
  • Dimensions: Length 7' 2" (2,184 mm), Height 2' 11" (889 mm), Depth 1' 11 1/2" (597 mm).
  • Weight: Tare weight without fuel is 1,315 lbs (596 kg); with fuel is 1,665 lbs (755 kg).
