8' Dry Freight ISO Cargo Container

Product catalog summary

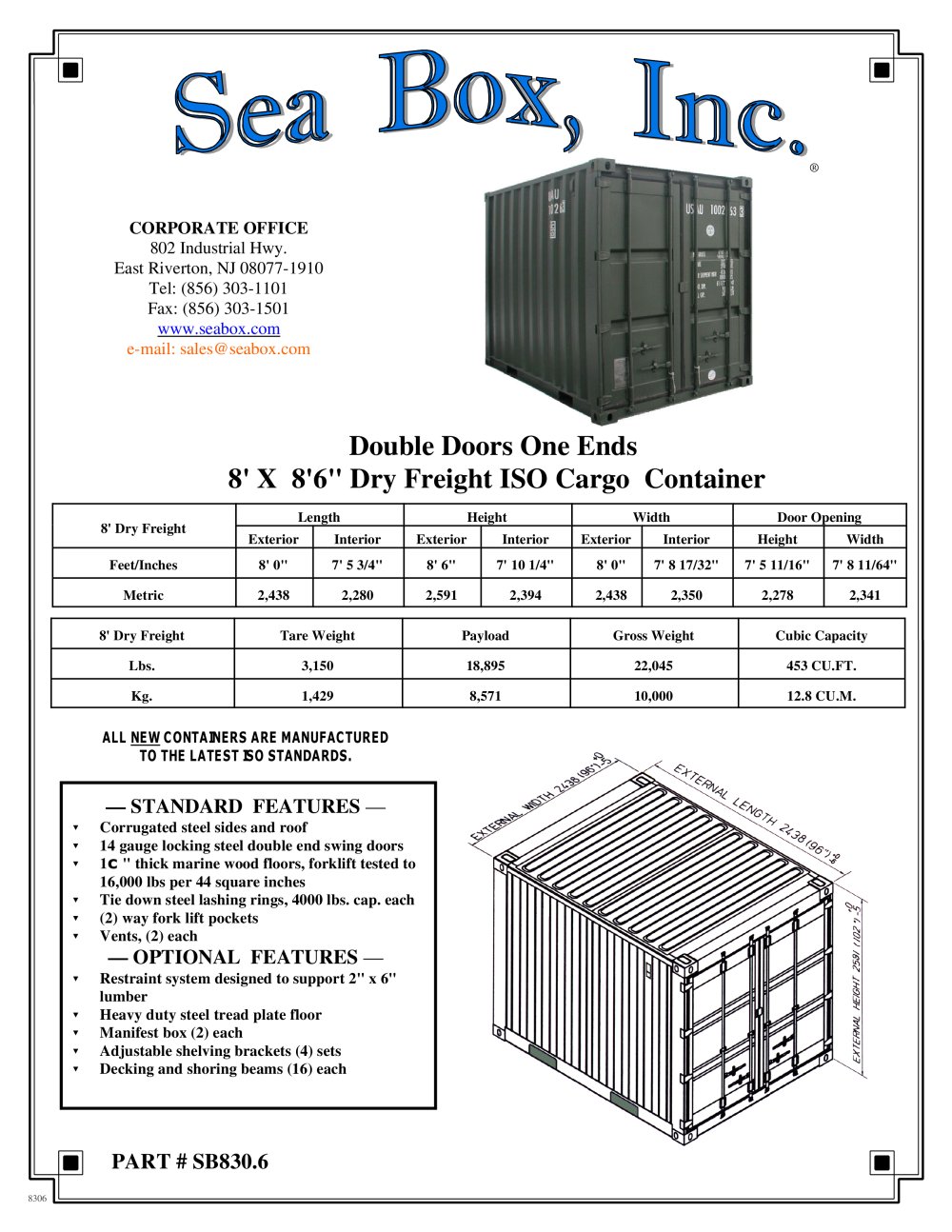

Product Overview: The document provides specifications for the 8' x 8'6" Dry Freight ISO Cargo Container, part number SB830.6, manufactured by Seabox.
Specifications:
  • Dimensions: Exterior dimensions are 8'0" in length, 8'6" in height, and 8'0" in width. Interior dimensions are slightly smaller due to construction materials.
  • Weight: Tare weight is 3,150 lbs (1,429 kg), with a payload capacity of 18,895 lbs (8,571 kg) and a gross weight of 22,045 lbs (10,000 kg).
  • Cubic Capacity: 453 cubic feet (12.8 cubic meters).
Standard Features:
  • Corrugated steel sides and roof for durability.
  • 14-gauge locking steel double end swing doors.
  • Marine wood floors tested for forklift use up to 16,000 lbs per 44 square inches.
  • Steel lashing rings with a capacity of 4,000 lbs each.
  • Two-way forklift pockets and two vents for ventilation.
Optional Features:
  • Restraint system for 2" x 6" lumber.
  • Heavy-duty steel tread plate floor.
  • Manifest boxes, adjustable shelving brackets, decking, and shoring beams available.
Compliance: All containers are manufactured to the latest ISO standards, ensuring quality and compatibility.
