40' (Type 2) Dry Freight Container, Double Doors Both Ends 8' 6"

Product catalog summary
Specifications:

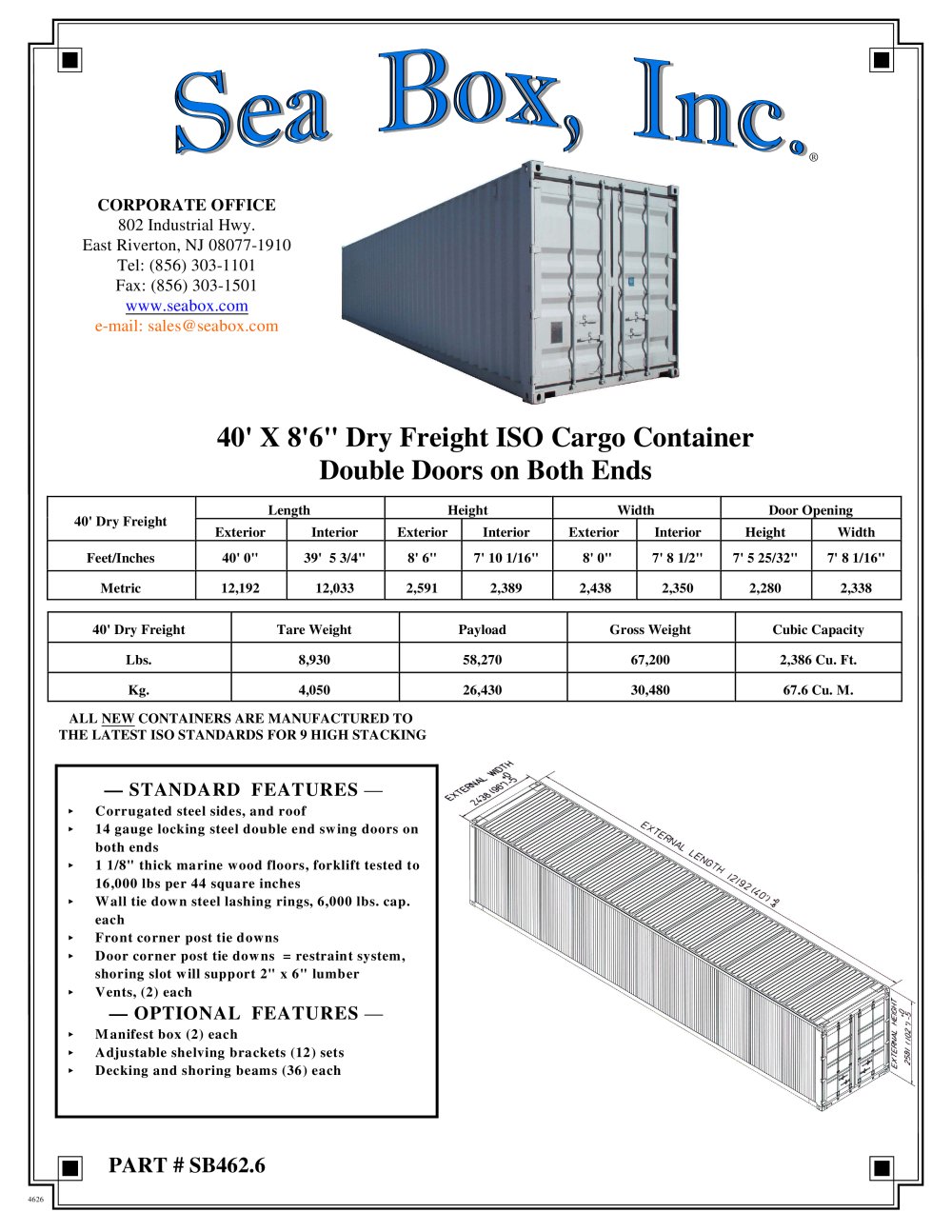

The document details the specifications of a 40' x 8'6" Dry Freight ISO Cargo Container, part number SB462.6. It features double doors on both ends and is manufactured to the latest ISO standards for 9 high stacking.

Dimensions:
  • Exterior Length: 40' 0" (12,192 mm)
  • Interior Length: 39' 5 3/4" (12,033 mm)
  • Exterior Height: 8' 6" (2,591 mm)
  • Interior Height: 7' 10 1/16" (2,389 mm)
  • Exterior Width: 8' 0" (2,438 mm)
  • Interior Width: 7' 8 1/2" (2,350 mm)
  • Door Opening Height: 7' 5 25/32" (2,280 mm)
  • Door Opening Width: 7' 8 1/16" (2,338 mm)

Weight and Capacity:
  • Tare Weight: 8,930 lbs (4,050 kg)
  • Payload: 58,270 lbs (26,430 kg)
  • Gross Weight: 67,200 lbs (30,480 kg)
  • Cubic Capacity: 2,386 Cu. Ft. (67.6 Cu. M.)

Standard Features:
  • Corrugated steel sides and roof
  • 14 gauge locking steel double end swing doors
  • 1 1/8" thick marine wood floors, forklift tested to 16,000 lbs per 44 square inches
  • Wall tie down steel lashing rings with 6,000 lbs capacity each
  • Front and door corner post tie downs with a restraint system
  • Two vents

Optional Features:
  • Manifest box (2 each)
  • Adjustable shelving brackets (12 sets)
  • Decking and shoring beams (36 each)
